- Basic PDU

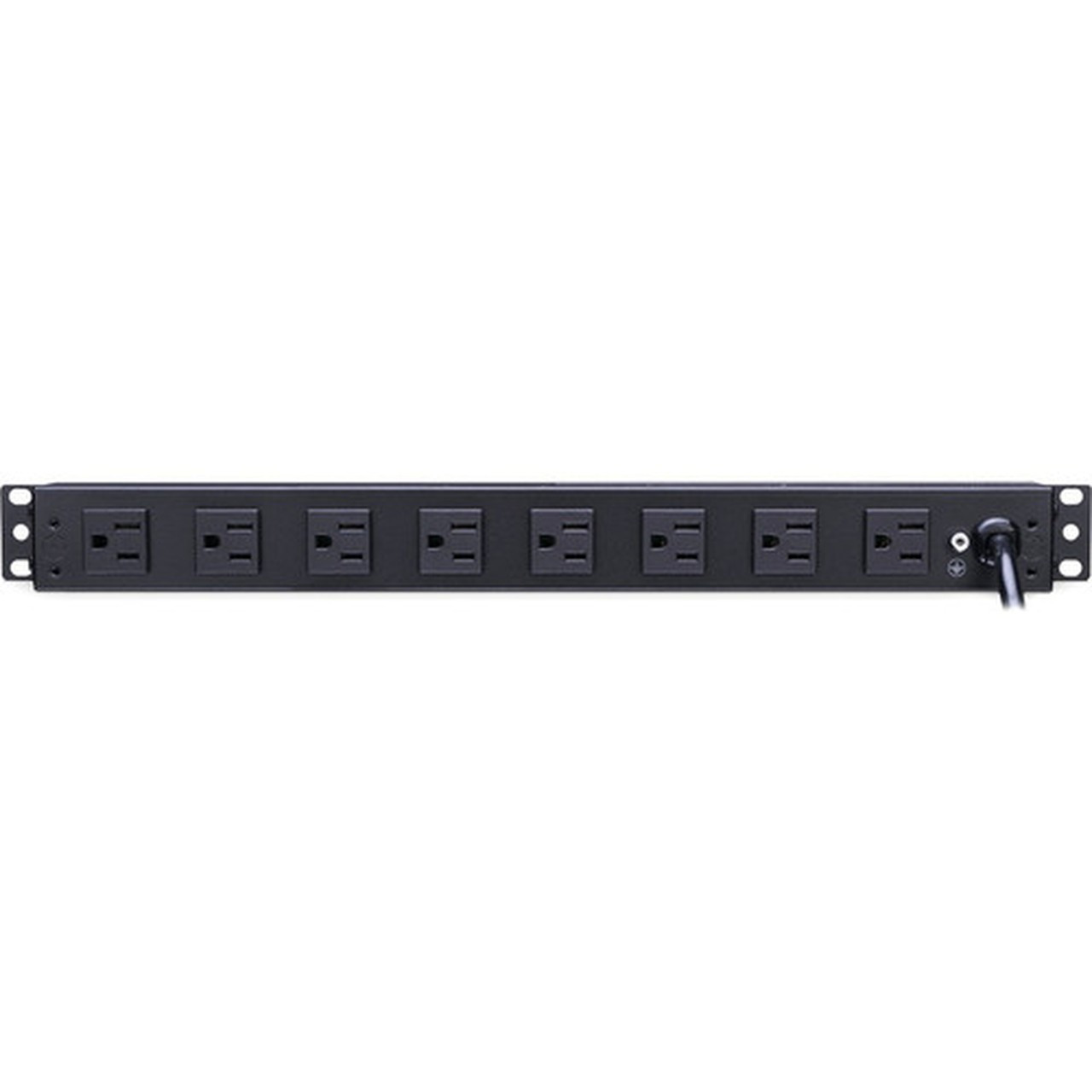

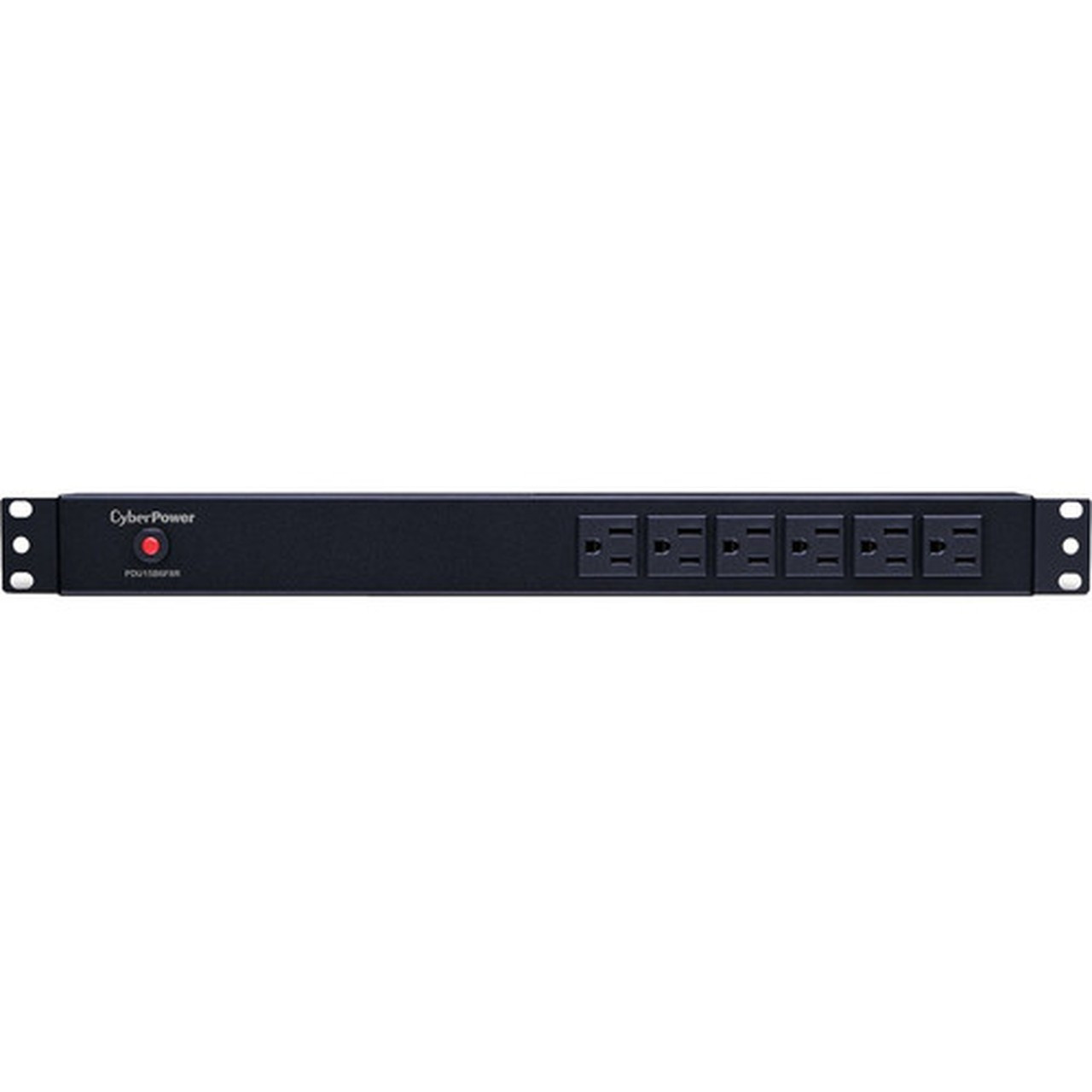

- 14 NEMA 5-15R output receptacles (6 Front/8 Rear)
- 120V AC - 50/60Hz - 15-amp electrical capacity with circuit breaker
- 1U Rack Mount - Rugged industrial-grade metal housing
- Marketing Information:
- Basic PDU15B6F8R 14-Outlets PDU
- Cord Retention Tray

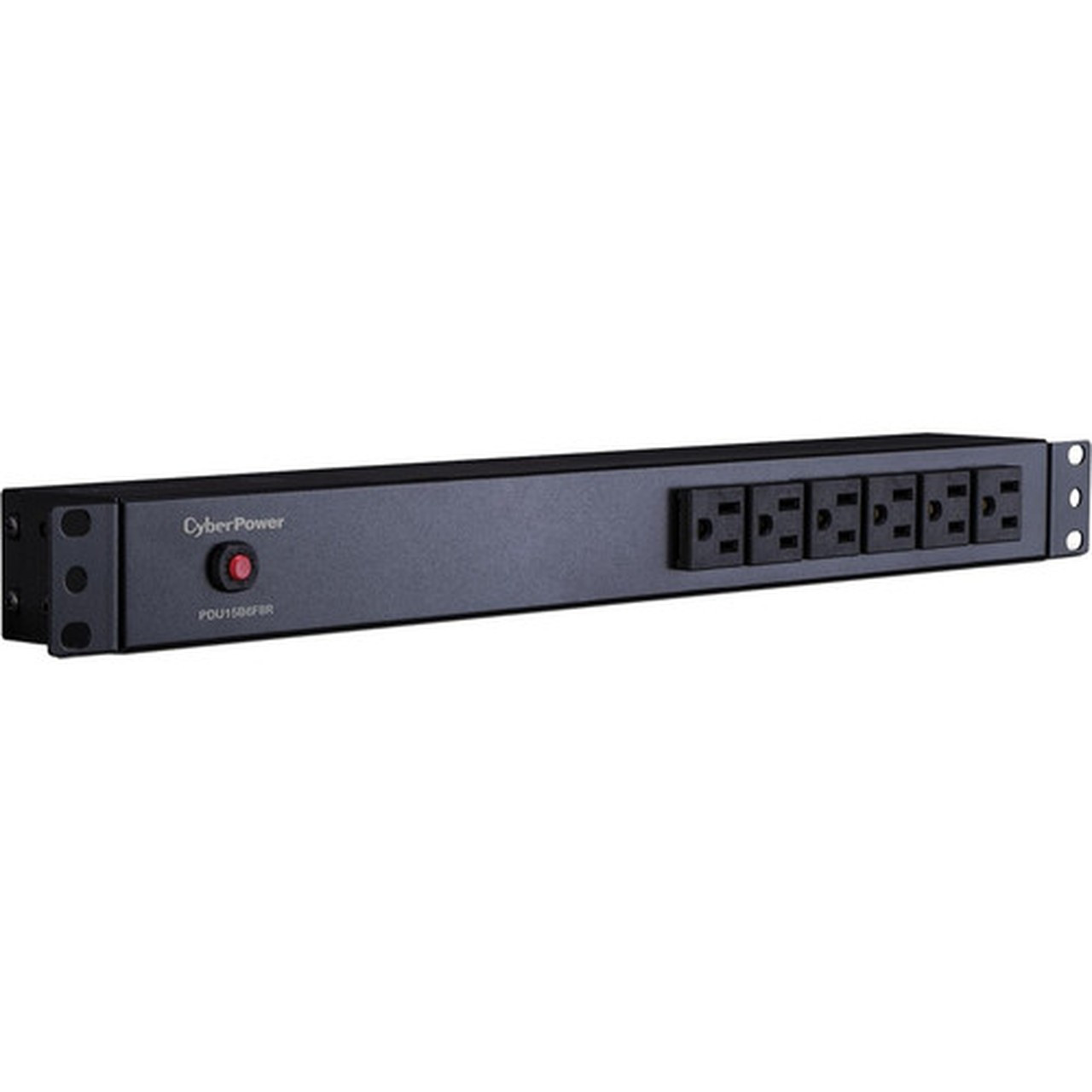

The CyberPower Basic PDU15B6F8R 14-Outlets PDU provides 120V 15A output. It distributes power to 14 NEMA 5-15R receptacles from a single NEMA 5-15P plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
PDU Type: BasicPlug/Connector Type: NEMA 5-15PReceptacle Type: NEMA 5-15RReceptacle Detail: 14 x NEMA 5-15RProtection Type: Overload ProtectionInput Voltage: 120 V ACOutput Voltage: 120 V ACMounting Orientation: VerticalMount Type: Rack-mountableRack Height: 1UHeight: 1.75" (44.45 mm)Width: 17.50" (444.50 mm)Length: 1.50" (38.10 mm)Weight (Approximate): 1.70 kgPackage Contents:[custom-specifications]
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PDU15B6F8R
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: Basic PDU
Product Model: PDU15B6F8R
Product Name: Basic PDU15B6F8R 14-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Basic
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 14 x NEMA 5-15R
Protection Type: Overload Protection
Power Description
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Physical Characteristics
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 1U
Height: 1.75" (44.45 mm)
Width: 17.50" (444.50 mm)
Length: 1.50" (38.10 mm)
Weight (Approximate): 1.70 kg
Miscellaneous
Package Contents:
- Basic PDU15B6F8R 14-Outlets PDU
- Cord Retention Tray
Energy Star: No
Environmentally Friendly: Yes
Warranty
Limited Warranty: Lifetime
[/custom-specifications]
[custom-user-manual][/custom-user-manual]
