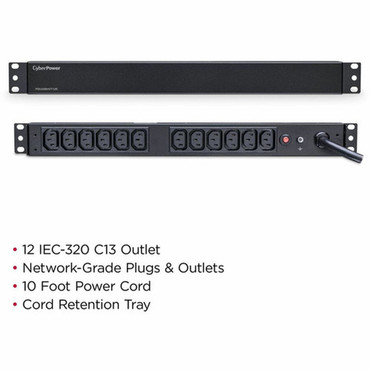

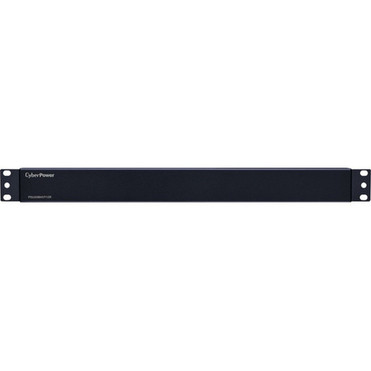

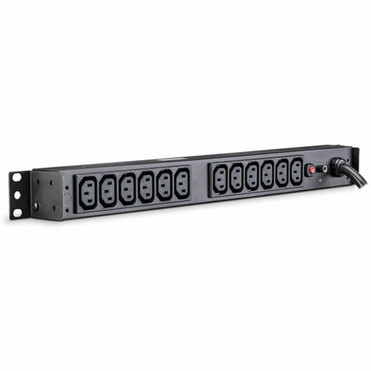

CyberPower Basic PDU20BHVT12R 12-Outlets PDU - Basic - NEMA L6-20P - 12 x IEC 60320 C13 - 230 V AC - 1U - Vertical - Rack-mountable (PDU20BHVT12R)
Write a Review
CyberPower
CyberPower Basic PDU20BHVT12R 12-Outlets PDU - Basic - NEMA L6-20P - 12 x IEC 60320 C13 - 230 V AC - 1U - Vertical - Rack-mountable (PDU20BHVT12R)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Basic PDU20BHVT12R 12-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
PDU Type: Basic
Phase: Single Phase
Plug/Connector Type: NEMA L6-20P
Receptacle Type: IEC 60320 C13
Receptacle Detail: 12 x IEC 60320 C13
Protection Type: Overload Protection
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 230 V AC
Output Voltage Range: 200 V AC - 230 V AC
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 1U
Height: 1.75" (44.45 mm)
Width: 17.50" (444.50 mm)
Depth: 1.50" (38.10 mm)
Weight (Approximate): 3.70 lb (1678.29 g)
Package Contents:
Energy Star: No
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: Lifetime
- Phase:
- Single
- Amps:
- 20A (Derated to 16A)
- Volts:
- 208 - 230 V
- Frequency:
- 50Hz/60Hz
- Plug type:
- NEMA L6-20P
- Outlets:
- 12 IEC-320 C13
- Size:
- 1U Rackmount
- Dimensions (in.):
- 17.5W x 1.75H x 1.5D
- Cord length (ft.):
- 10
- Warranty:
- Limited lifetime
[custom-specifications]
| Specifications | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU20BHVT12R |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Series | Basic PDU |
| Product Model | PDU20BHVT12R |
| Product Name | PDU20BHVT12R 200 - 230 VAC 20A Basic |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-20P |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 230 V AC |
| Output Voltage Range | 200 V AC - 230 V AC |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 1.50" (38.10 mm) |
| Weight (Approximate) | 3.70 lb (1678.29 g) |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
Lifetime
