- Two attached 5-20P PDU input cords connect to separate Utility and UPS power sources, (6) NEMA 5-20R output connections
- Manual transfer switch controls PDU input power source
- Bypass PDU supports replacement of standard UPS systems for maintenance with no interruption of connected equipment
- 100-120V AC - 20A electrical capacity
- Rugged, industrial-grade metal housing, 1U Rackmount with mounting hardware
Marketing Information: The CyberPower Maintenance Bypass PDU model MBP20A6 is designed to allow seamless transfer of an electrical load from UPS power to utility power for connected equipment. This allows connected equipment to operate seamlessly when performing maintenance, replacing batteries, or installing a new UPS. Set the unit to bypass, perform the updates and return it to normal when done.

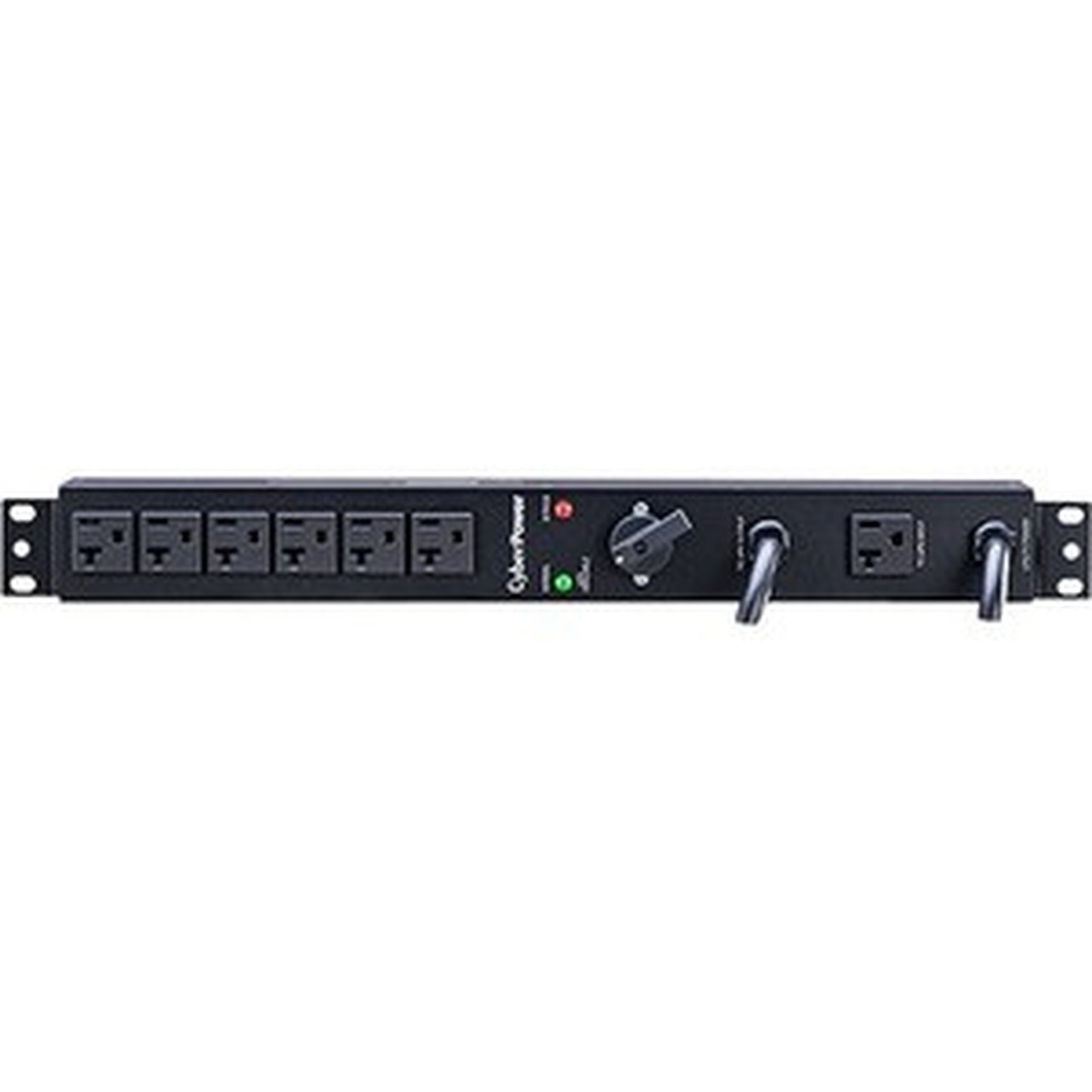

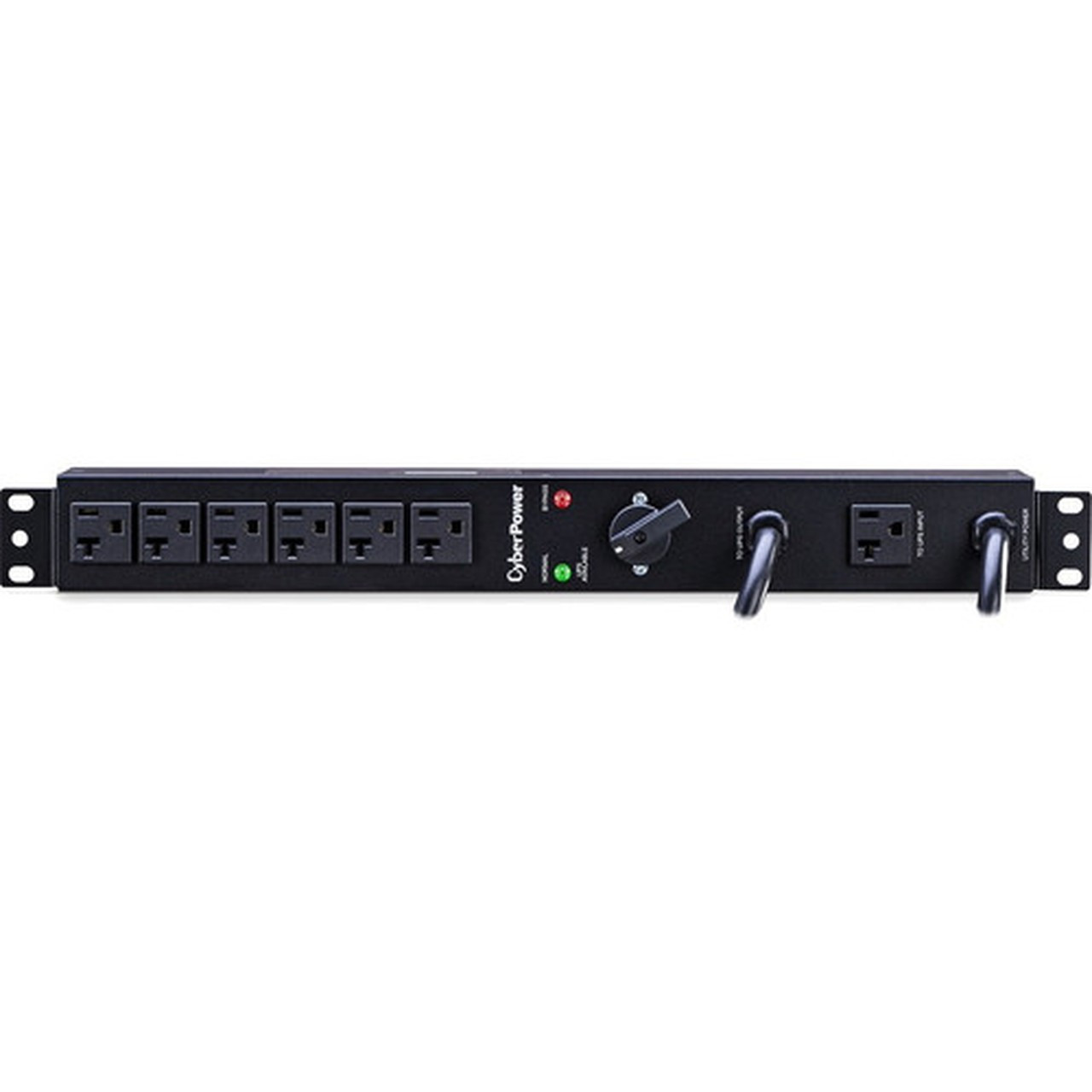

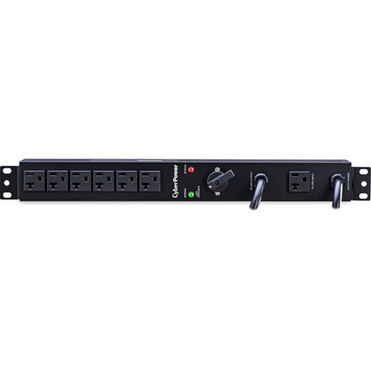

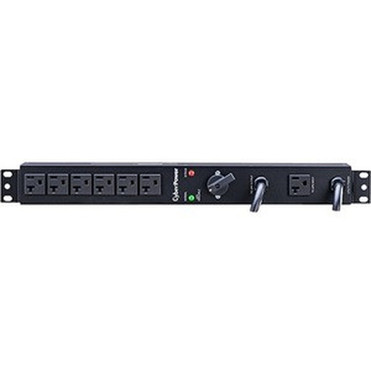

A 6ft AC cord is connected to utility power; a 3ft AC cord is connected to the output power of the UPS; the UPS draws input power from the MBP via a NEMA 5-20R. When the switch on the front of the MBP20A6 is turned, the power the MBP supplies to connected devices moves from one power source to another with the LED indicating which source is currently active. With a 1U form factor and included mounting hardware, it can fit in a server rack or be mounted to a UPS for a tower configuration.
A 3-year warranty ensures that this manual bypass switch is free of defects in design, assembly, material or workmanship. - Two attached 5-20P PDU input cords connect to separate Utility and UPS power sources, (6) NEMA 5-20R output connections
- Manual transfer switch controls PDU input power source
- Bypass PDU supports replacement of standard UPS systems for maintenance with no interruption of connected equipment
- 100-120V AC - 20A electrical capacity
- Rugged, industrial-grade metal housing, 1U Rackmount with mounting hardware
Input Receptacles: 2 x NEMA 5-20POutput Receptacles: 6 x NEMA 5-20RInput Voltage: 120 V ACOutput Voltage: 120 V ACInput Current: 20 APlacement: RackRack Height: 1UHeight: 2" (50.80 mm)Width: 17" (431.80 mm)Depth: 3" (76.20 mm)Weight (Approximate): 2 kgPackage Contents: - Maintenance Bypass MBP20A6
- User's Manual
- Registration Card
- 2 x Rackmount Brackets
- 4 x M4X8L Screws
- 4 x M5X12L Screws
Energy Star: NoEnvironmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: ChinaLimited Warranty: 3 Year
[custom-specifications]
SpecificationsManufacturer: CyberPower Systems, Inc
Manufacturer Part Number: MBP20A6
Manufacturer Website Address: http://www.cyberpowersystems.com
Brand Name: CyberPower
Product Model: MBP20A6
Product Name: Maintenance Bypass MBP20A6
Product Type: PDU
Technical InformationInput Receptacles: 2 x NEMA 5-20P
Output Receptacles: 6 x NEMA 5-20R
Power DescriptionInput Voltage: 120 V AC
Output Voltage: 120 V AC
Input Current: 20 A
Physical CharacteristicsPlacement: Rack
Rack Height: 1U
Height: 2" (50.80 mm)
Width: 17" (431.80 mm)
Depth: 3" (76.20 mm)
Weight (Approximate): 2 kg
MiscellaneousPackage Contents:
- Maintenance Bypass MBP20A6
- User's Manual
- Registration Card
- 2 x Rackmount Brackets
- 4 x M4X8L Screws
- 4 x M5X12L Screws
Energy Star: No
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
WarrantyLimited Warranty: 3 Year
