CyberPower PDU30BHVT12R 12-Outlets PDU - Basic - NEMA L6-30P - 12 x IEC 60320 C13 - 230 V AC - 1U - Vertical - Rack-mountable (PDU30BHVT12R)

Marketing Information:

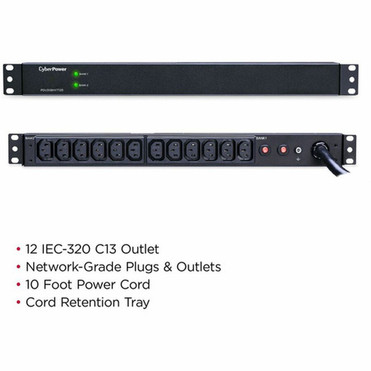

The CyberPower PDU30BHVT12R, a 12-outlet (rear) rackmount basic power distribution unit (PDU), provides 200V/230V 30A output. It distributes power to 12 IEC-320 C13 receptacles from a single NEMA L6-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU30BHVT12R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

What's In The Box

PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card

PDU Type: Basic

Phase: Single Phase

Plug/Connector Type: NEMA L6-30P

Receptacle Type: IEC 60320 C13

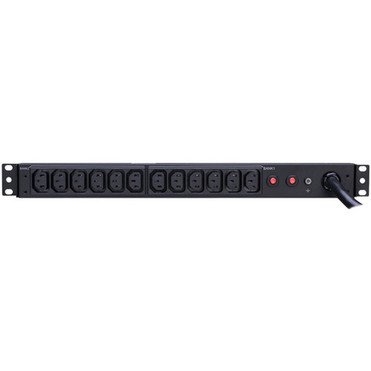

Receptacle Detail: 12 x IEC 60320 C13

Protection Type: Overload Protection

Input Voltage: 230 V AC

Input Voltage Range: 200 V AC - 230 V AC

Output Voltage Range: 200 V AC - 230 V AC

Input Current: 30 A

Mounting Orientation: Vertical

Mount Type: Rack-mountable

Rack Height: 1U

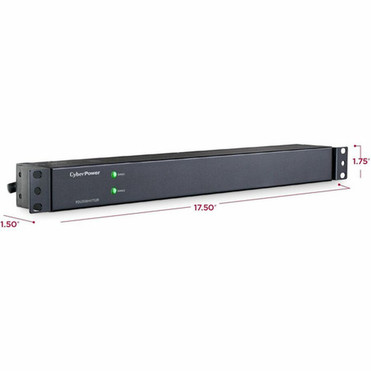

Height: 1.75" (44.45 mm)

Width: 17.50" (444.50 mm)

Depth: 1.50" (38.10 mm)

Weight (Approximate): 2 kg

Package Contents:

• PDU30BHVT12R 12-Outlets PDU
• Cord Retention Tray
• User Manual
• Screw Kit
• Cord Clip Kit
• Horizontal Mounting Brackets
• Vertical Mounting Brackets
• Product Registration Card

Energy Star: No

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: Lifetime
