CyberPower PDU30BHVT8R 8-Outlets PDU - Basic - NEMA L6-30P - 2 x IEC 60320 C19, 6 x IEC 60320 C13 - 230 V AC - 1U - Vertical - (PDU30BHVT8R)
- PDU30BHVT8R 8-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
Marketing Information:

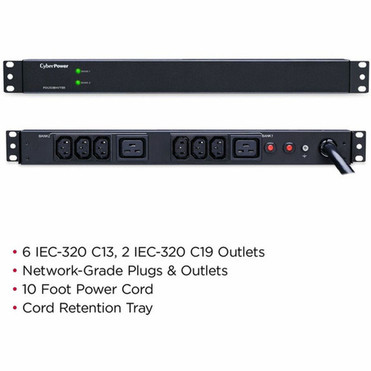

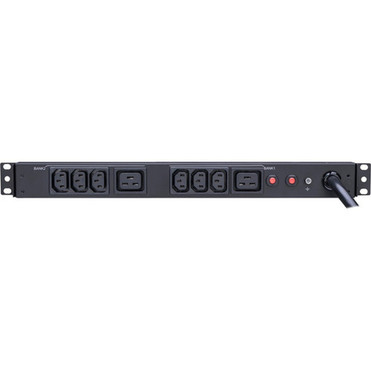

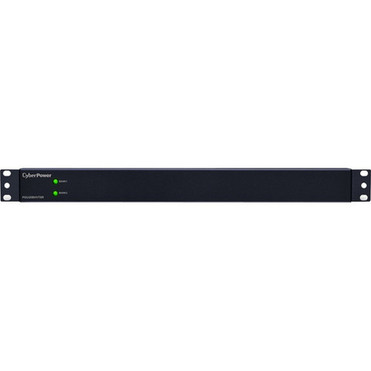

The CyberPower PDU30BHVT8R, an 8-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 30A output. It distributes power to 6 IEC-320 C13, 2 IEC-320 C19 receptacles from a single NEMA L6-30P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU30BHVT8R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Power DistributionDelivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
Twist Lock Plug
Secures an outlet by twisting and locking into place to prevent accidental disconnection.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
What's In The Box
PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card
PDU Type: Basic
Phase: Single Phase
Plug/Connector Type: NEMA L6-30P
Receptacle Type: IEC 60320 C19,IEC 60320 C13
Receptacle Detail: 2 x IEC 60320 C19,6 x IEC 60320 C13
Protection Type: Overload Protection
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 230 V AC
Output Voltage Range: 200 V AC - 230 V AC
Input Current: 30 A
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 1U
Height: 1.75" (44.45 mm)
Width: 17.50" (444.50 mm)
Depth: 1.50" (38.10 mm)
Weight (Approximate): 2.04 kg
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: Lifetime
- 208V - 230V 50Hz/60Hz 30A BASIC Power Distribution Unit
- 8 OUTLETS: (6) IEC-320 C13 (2) IEC-320 C19
- INPUT: Network-grade NEMA L6-30P (twist lock) plug with 10 foot power cord
- 1U RACK MOUNT - Rugged industrial-grade metal housing, cord retention tray, horizontal and vertical mounting brackets
- LIMITED LIFETIME WARRANTY
[custom-specifications]
| Specifications | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU30BHVT8R |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Series | Basic PDU |
| Product Model | PDU30BHVT8R |
| Product Name | PDU30BHVT8R 8-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C19,IEC 60320 C13 |
| Receptacle Detail | 2 x IEC 60320 C19,6 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 230 V AC |
| Output Voltage Range | 200 V AC - 230 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 1.50" (38.10 mm) |
| Weight (Approximate) | 2.04 kg |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
Lifetime
