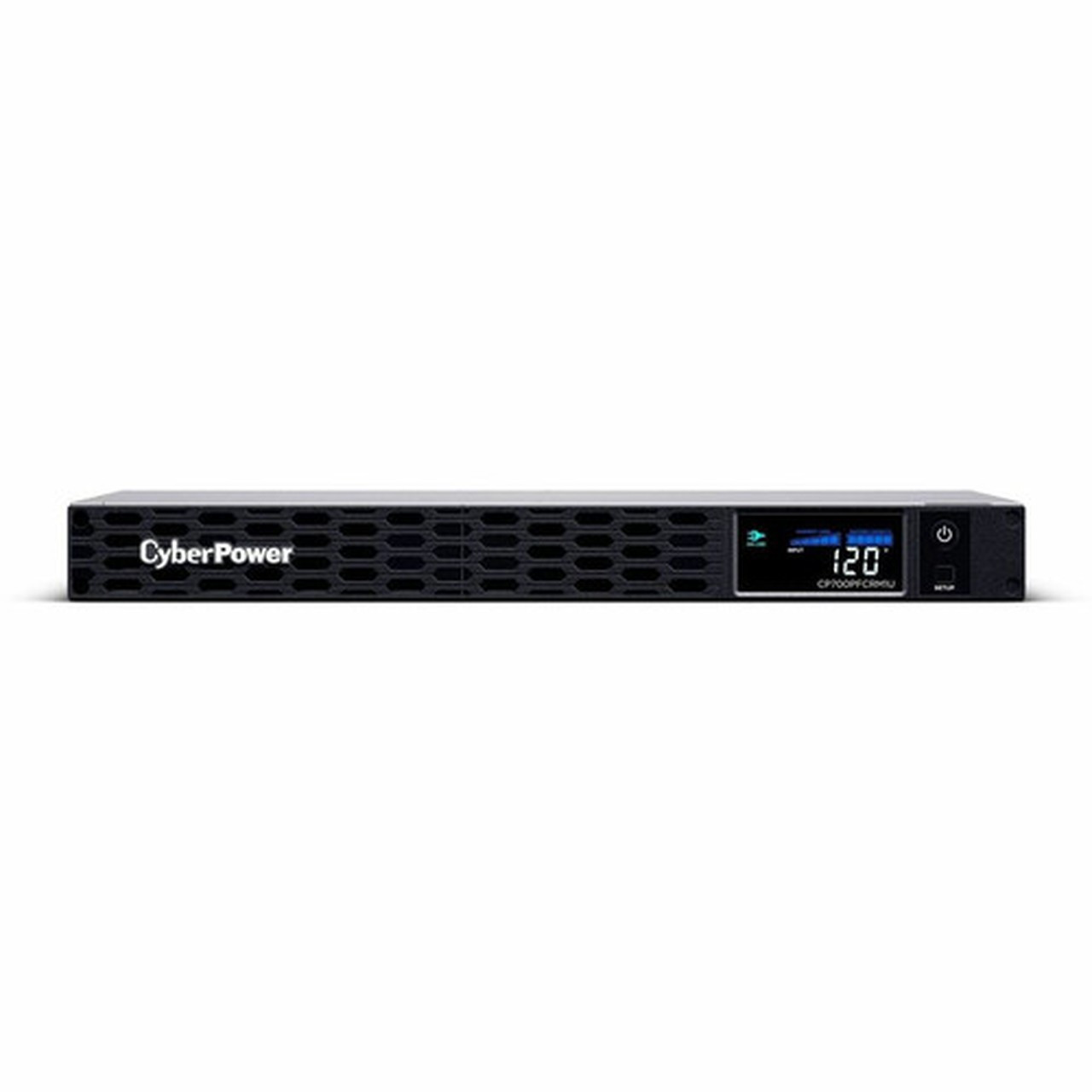

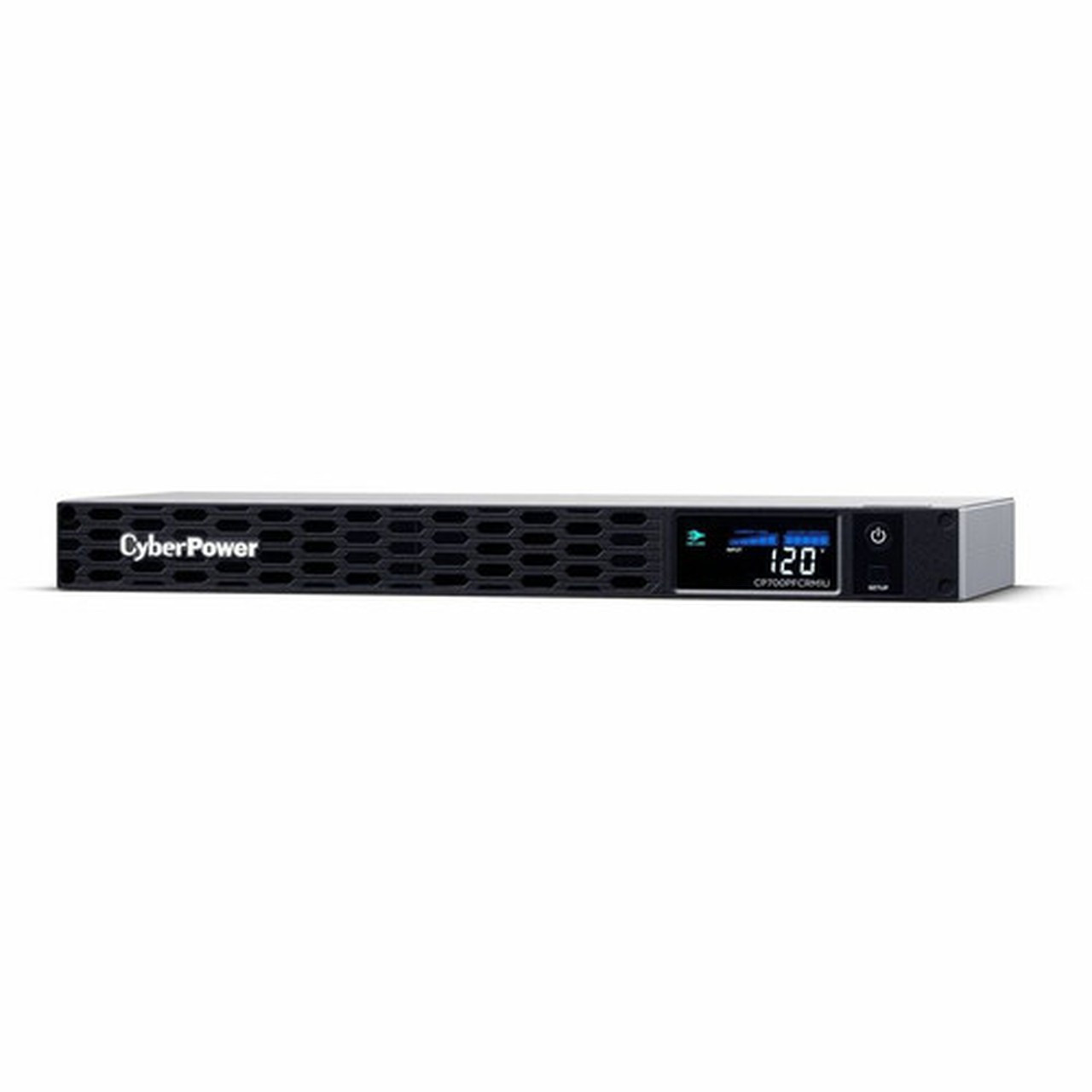

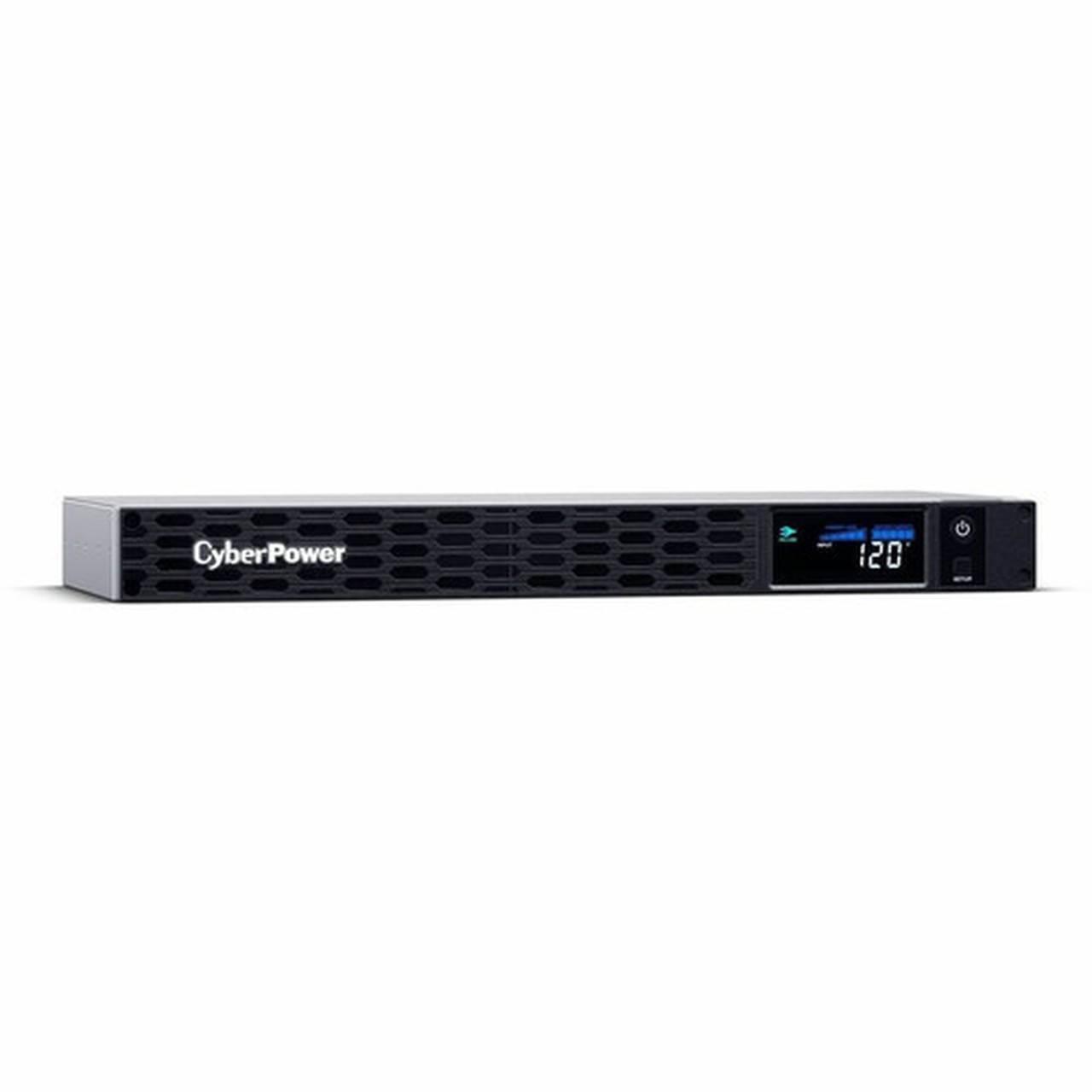

CyberPower PFC Sinewave CP700PFCRM1U 700VA Rack-mountable UPS - 1U Rack-mountable - AVR - 8 Hour Recharge - 1.50 Minute Stand-by - 120 (CP700PFCRM1U)

Marketing Information:

• The CP700PFCRM1U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

  The CP700PFCRM1U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 9.04 inches in depth, the CP700PFCRM1U fits comfortably in short-depth rack installations where space is at a premium.

  The CP700PFCRM1U comes with a three-year warranty (including coverage of batteries) and a

• 300,000 Connected Equipment Guarantee.

AVR: Yes

Plug/Connector Type: NEMA 5-15P

Receptacle Type: NEMA 5-15R

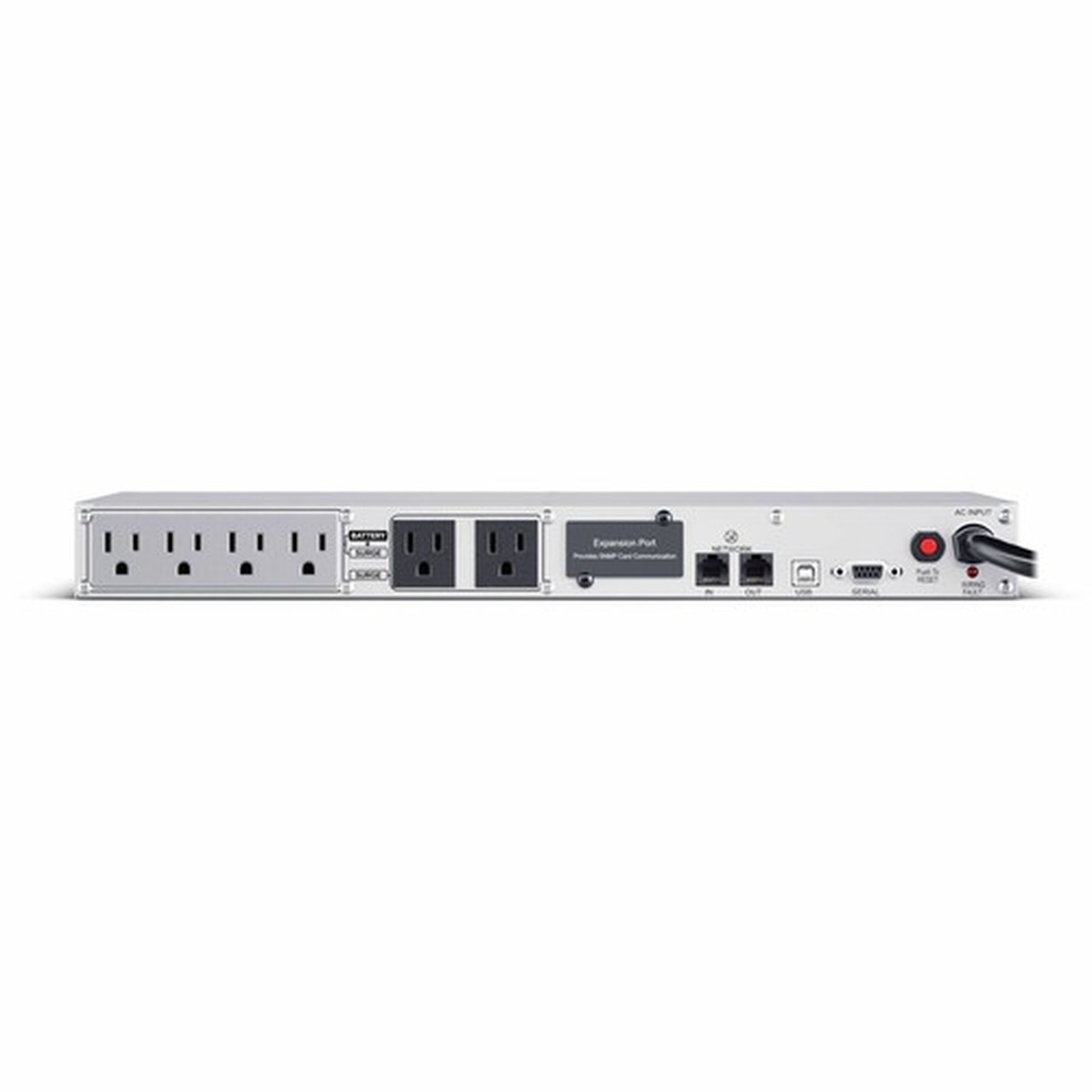

Receptacle Detail: 6 x NEMA 5-15R

Number of Battery & Surge Outlets: 4

Number of Surge-only Outlets: 2

Dataline Protection: RJ-45

Overload Protection: Yes

Cord Length: 10 ft

Transfer Time: 8 ms

EMI/RFI Noise Filter: Yes

Energy Saving: GreenPower UPS Bypass Technology

Application/Usage: Security System,Audio/Video Equipment,Workstation,Corporate,Server,Network Device,Telecommunication

Surge Suppression: Yes

Features: Audible Alarm

Load Capacity (VA): 700 VA

Load Capacity (Watt): 400 W

Input Voltage: 120 V AC

Input Voltage Range: 88 V AC - 144 V AC,97 V AC - 144 V AC

Output Voltage: 120 V AC

Input Frequency: 57 Hz,63 Hz

Output Frequency: 60 Hz

Waveform Type: Sine Wave

Surge Energy Rating: 1150 J

Circuit Breaker: Yes

Output Power Factor: 0.57

Display: LCD

Network Management: Dry Contact,SNMP/HTTP Remote Monitoring

Alarm: Battery Mode,Low Battery,Overload,Fault

Status Indicators:

LED Indicators:

• Power On
• Wiring Fault

Serial Port: Yes

USB: Yes

Network (RJ-45): Yes

USB (HID Compliant) Port: Yes

Number of Batteries: 2

Battery Characteristics: Sealed

Battery Chemistry: Lead Acid

Battery Size: 6V

Battery Capacity: 8000 mAh

Backup/Run Time (Full Load): 1.50 Minute

Backup/Run Time (Half Load): 10.50 Minute

Hot Swappable: Yes

Typical Battery Recharge Time: 8 Hour

Replaceable Battery: Yes

Maximum Operating Elevation: 10000 ft (3048000 mm)

Maximum Storage Elevation: 50000 ft (15240000 mm)

Storage Temperature: 5°F (-15°C) - 113°F (45°C)

Operating Humidity: 0% - 95%

Storage Relative Humidity: 0% - 95%

Minimum Operating Temperature: 32°F (0°C)

Maximum Operating Temperature: 104°F (40°C)

Product Color: Black

Height: 1.73" (44 mm)

Width: 17.05" (433 mm)

Depth: 9.06" (230 mm)

Rack Height: 1U

Form Factor: Rack-mountable

Weight (Approximate): 8.30 kg

Energy Star: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year

Additional Warranty Information:

Three-year warranty (including coverage of batteries)
