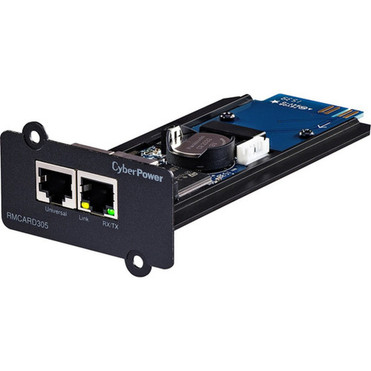

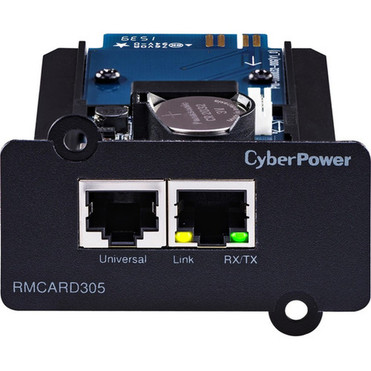

Marketing Information: A full-featured network management card, the CyberPower RMCARD305TAA remotely manages, monitors and controls select CyberPower UPS systems and ATS PDUs via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD305TAA provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel® Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.
An optional environmental sensor (ENVIROSENSOR) can be connected to the RMCARD305TAA to monitor the ambient temperature and humidity of a server room, IT closet, or other critical environments. Administrators define temperature parameters in Fahrenheit or Celsius; thresholds can be configured to prompt the RMCARD305TAA to send a predefined notifications. The RMCARD305TAA comes with a three-year warranty.
Environmental Sensor Compatibility
The optional ENVIROSENSOR connects to the Universal port on the RMCARD305TAA to monitor ambient temperature and humidity. Notifications are enabled by default and alert thresholds can be easily customized to fit environmental control requirements.
Remote Management
Allows administrators to control and configure the UPS without being onsite via a standard web browser, command line interface (CLI), or network management system (NMS).
Built-In Automatic Shutdown
In conjunction with PowerPanel Business Edition Client, you can protect servers and workstations from data loss due to power failure.
Offsite Scheduling of UPS and ATS PDU Operation
Lets administrators conduct scheduled times for UPS and ATS PDU shutdown, startup, and reboot. Functionality includes event action management, event logging, and automatic event notification.
Automatic Event Notification
Provides immediate updates about power events via Email, SMS, SNMP Traps, or Syslog server.
Event Logging and Status Records
Traces the UPS and ATS PDU operational history, tracking events and input/output power status records.
Event Action Settings
Allows administrators to customize UPS actions in response to power and system events.
Upgradable Firmware
Keep the RMCARD305 up to date with the latest firmware version. New firmware releases include new functionality, feature enhancements, and bug fixes. Firmware can be updated via FTP or SCP.
Upgradable UPS Firmware
Maintain UPS firmware that manages features and functions up to date to. The UPS firmware upgrade is easy to do via the web management interface.
Management: - Remote Management
- Remote Monitoring
- Automated Event Notification
- Automatic Shutdown & Network Monitoring
- Data Logging
- Real-time Monitoring
Protocols: - DHCP
- DNS
- FTP
- HTTP
- HTTPS
- LDAP
- LDAPS
- NTP
- RADIUS
- SCP
- SMTP
- SNMP
- SMTPS
- SSH
- SSL
- Syslog
- TCP/IP
- TLS
- Telnet
- UDP
- SNMP v1
- SNMPv3
- IPv4
- IPv6
- CLI
- Email
- SMS (Short Message Service)
- NMS
- Windows Active Directory
- MIB
Network (RJ-45): YesNumber of Network (RJ-45) Ports: 2Ethernet Technology: Fast EthernetProduct Color: BlackHeight: 1.70" (43.18 mm)Width: 2.60" (66.04 mm)Depth: 5.30" (134.62 mm)Weight (Approximate): 90.7 gPackage Contents: - UPS/PDU Remote Management Adapter
- RJ45/DB9 Serial Port Connection Cable
- Quick Start Guide
- Spare Jumper
TAA Compliant: YesEnvironmentally Friendly: YesEnvironmental Compliance: Restriction of Hazardous Substances (RoHS)Limited Warranty: 3 Year
[custom-specifications]
SpecificationsManufacturer: CyberPower Systems, Inc
Manufacturer Part Number: RMCARD305TAA
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Model: RMCARD305TAA
Product Name: RMCARD305TAA UPS/PDU Remote Management Adapter
Product Type: UPS/PDU Remote Management Adapter
Technical InformationManagement:
- Remote Management
- Remote Monitoring
- Automated Event Notification
- Automatic Shutdown & Network Monitoring
- Data Logging
- Real-time Monitoring
Protocols:
- DHCP
- DNS
- FTP
- HTTP
- HTTPS
- LDAP
- LDAPS
- NTP
- RADIUS
- SCP
- SMTP
- SNMP
- SMTPS
- SSH
- SSL
- Syslog
- TCP/IP
- TLS
- Telnet
- UDP
- SNMP v1
- SNMPv3
- IPv4
- IPv6
- CLI
- Email
- SMS (Short Message Service)
- NMS
- Windows Active Directory
- MIB
Interfaces/PortsNetwork (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Network & CommunicationEthernet Technology: Fast Ethernet
Physical CharacteristicsProduct Color: Black
Height: 1.70" (43.18 mm)
Width: 2.60" (66.04 mm)
Depth: 5.30" (134.62 mm)
Weight (Approximate): 90.7 g
MiscellaneousPackage Contents:
- UPS/PDU Remote Management Adapter
- RJ45/DB9 Serial Port Connection Cable
- Quick Start Guide
- Spare Jumper
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
WarrantyLimited Warranty: 3 Year
[/custom-specifications]
