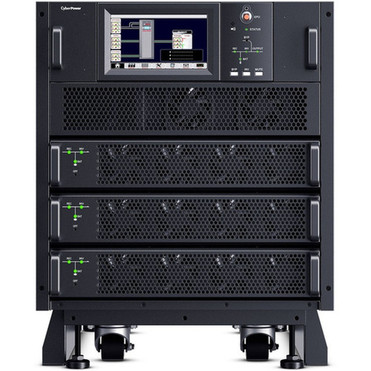

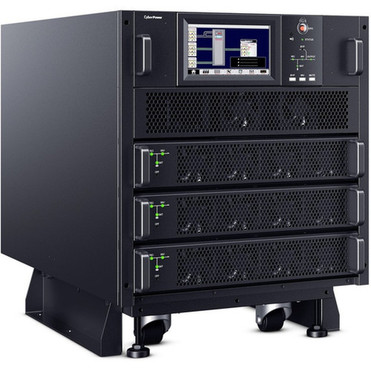

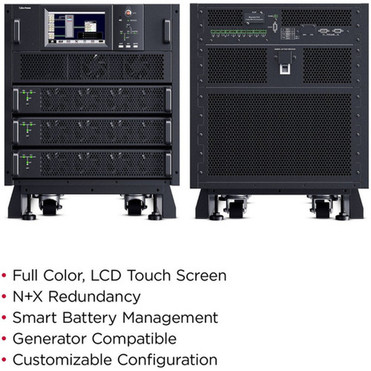

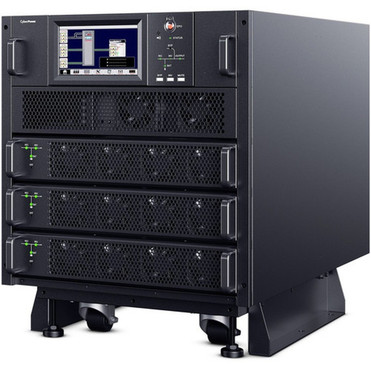

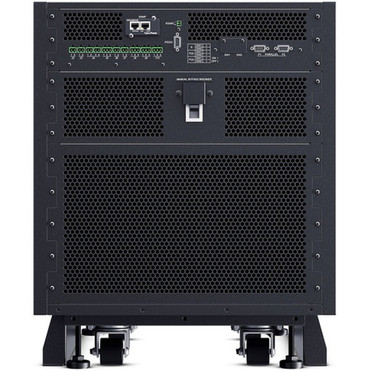

CyberPower SM020KAMFA 3-Phase Modular Smart App Online UPS System - 11U Modular - AVR - 120 V AC, 230 V AC Input - 120 V AC, 127 V AC, (SM020KAMFA)

Marketing Information:

The CyberPower SM020KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility, space savings, and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy, the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack. The high-density, scalable 10kVA/10kW power modules are 2U in height, saving space while providing more options for capacity expansion.

The SM020KAMFA features double-conversion topology for seamless power protection and a pre-installed RMCARD205 for remote management. The user-friendly 7" color touchscreen displays key status indicators at-a-glance. Three-stage Smart Battery Management (SBM) equalizes battery voltages and reduces excessive heat to extend battery life. Plus, hot-swappable power modules, battery and, bypass allow for rapid replacement and minimal impact to system operation. Ideal for high-end data centers, the SM020KAMFA Smart App Online 3-Phase Modular UPS System assures reliable, high-quality AC power and includes a One-Year Limited Warranty.

AVR: Yes

Plug/Connector Type: Hardwired

Receptacle Type: Hardwired

Receptacle Detail: 1 x Hardwired

Transfer Time: 0 ns

Protection Type: Backfeed,Short Circuit

Overload Protection: Yes

Phase: Three Phase

Energy Saving: Online ECO Mode Efficiency >97.5%

Load Capacity (VA): 20 kVA

Input Voltage: 120 V AC,230 V AC

Input Voltage Range: 187 V AC - 260 V AC

Output Voltage: 120 V AC,127 V AC,208 V AC,220 V AC

Input Frequency: 60 Hz

Output Frequency: 60 Hz

Waveform Type: Sine Wave

Network Management: SNMP/HTTP Remote Monitoring

Status Indicators:

• LCD: Multifunction LCD
• LED Indicators: Rectifier

Serial Port: Yes

USB (HID Compliant) Port: Yes

EPO Port: Yes

DC System Voltage: 120 V DC

Number of External Battery Cabinets: 6

Maximum Operating Temperature: 104°F (40°C)

Storage Temperature: -4°F (-20°C) - 158°F (70°C)

Maximum Operating Elevation: 10000 ft (3048000 mm)

Storage Relative Humidity: 0% - 95%

Sound Emission (A-Weighted): 56 dB(A)

Thermal Dissipation: 5732.16 BTU/h

Product Color: Black

Form Factor: Modular

Rack Height: 11U

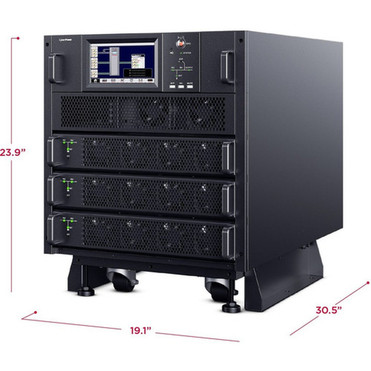

Height: 23.90" (607.06 mm)

Width: 19.10" (485.14 mm)

Depth: 30.50" (774.70 mm)

Weight (Approximate): 60.69 kg

Package Contents:

• SM020KAMFA 3-Phase Modular Smart App Online UPS System
• Mounting Hardware

Software Included: PowerPanel Business

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 1 Year
