CyberPower SM040KAMFA 3-Phase Modular Smart App Online UPS System - 19U Modular - AVR - 120 V AC, 230 V AC Input - 120 V AC, 127 V AC, (SM040KAMFA)
Write a Review
CyberPower
CyberPower SM040KAMFA 3-Phase Modular Smart App Online UPS System - 19U Modular - AVR - 120 V AC, 230 V AC Input - 120 V AC, 127 V AC, (SM040KAMFA)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- LCD: Multifunction LCD
- LED Indicators: Rectifier
- SM040KAMFA 3-Phase Modular Smart App Online UPS System
- Mounting Hardware
AVR: Yes
Plug/Connector Type: Hardwired
Receptacle Type: Hardwired
Receptacle Detail: 1 x Hardwired
Transfer Time: 0 ns
Protection Type: Short Circuit,Backfeed
Overload Protection: Yes
Phase: Three Phase
Energy Saving: Online ECO Mode Efficiency >97.5%
Application/Usage: Data Center
Load Capacity (VA): 40 kVA
Input Voltage: 120 V AC,230 V AC
Input Voltage Range: 187 V AC - 260 V AC
Output Voltage: 120 V AC,127 V AC,208 V AC,220 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Network Management: SNMP/HTTP Remote Monitoring
Status Indicators:
Serial Port: Yes
USB (HID Compliant) Port: Yes
EPO Port: Yes
DC System Voltage: 120 V DC
Battery Characteristics: Hot-swappable
Number of External Battery Cabinets: 12
Replaceable Battery: Yes
Maximum Operating Temperature: 104°F (40°C)
Maximum Operating Elevation: 10000 ft (3048000 mm)
Storage Relative Humidity: 0% - 95%
Sound Emission (A-Weighted): 56 dB(A)
Thermal Dissipation: 11430.20 BTU/h
Product Color: Black
Form Factor: Modular
Rack Height: 19U

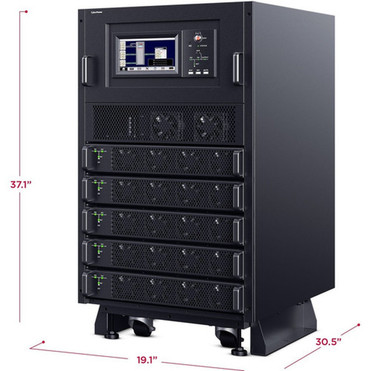

Height: 37.10" (942.34 mm)
Width: 19.10" (485.14 mm)
Depth: 30.50" (774.70 mm)
Weight (Approximate): 177.70 lb (80603.36 g)
Package Contents:
Software Included: PowerPanel Business
Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 1 Year
- Capacity:
- 10-40 kVA / 10-40 kW
- Redundancy:
- (N+X)
- Power Factor (PF):
- 1.0
- Topology:
- Double-Conversion
- Waveform:
- Sine Wave
- Output:
- 208/120V or 220/127V VAC Configurable
- Communication Ports:
- USB, Serial, Modbus, SNMP, EPO
- Management Software:
- PowerPanel® Business
- Energy Saving:
- ECO Mode Efficiency >97.5%
- Warranty:
- 1 year
[custom-specifications]
| Specifications | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | SM040KAMFA |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Series | Smart App Online UPS |
| Product Model | SM040KAMFA |
| Product Name | SM040KAMFA 3-Phase Modular Smart App Online UPS System |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Receptacle Detail | 1 x Hardwired |
| Transfer Time | 0 ns |
| Protection Type | Short Circuit,Backfeed |
| Overload Protection | Yes |
| Phase | Three Phase |
| Energy Saving | Online ECO Mode Efficiency >97.5% |
| Application/Usage | Data Center |
| Power Description | |
| Load Capacity (VA) | 40 kVA |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 187 V AC - 260 V AC |
| Output Voltage | 120 V AC,127 V AC,208 V AC,220 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Controls/Indicators | |
| Status Indicators |
|
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 120 V DC |
| Battery Characteristics | Hot-swappable |
| Number of External Battery Cabinets | 12 |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 56 dB(A) |
| Thermal Dissipation | 11430.20 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Modular |
| Rack Height | 19U |
| Height | 37.10" (942.34 mm) |
| Width | 19.10" (485.14 mm) |
| Depth | 30.50" (774.70 mm) |
| Weight (Approximate) | 177.70 lb (80603.36 g) |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerPanel Business |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-options]
| Product | CyberPower SMUCB175UAC 3-Phase Modular UPS 3-Phase Circuit Breaker - 175A Circuit Breaker 3 Pole, 1YR Warranty |
| SKU | SMUCB175UAC |
| Sale Price | $1002.66 |
| Product | CyberPower BCT6L9N225 3-Phase Modular UPS Battery Cabinets - 6 Layer Battery Cabinet, Modular, 19U, 1YR Warranty |
| SKU | BCT6L9N225 |
| Sale Price | $5986.49 |
| Product | CyberPower BM120V30ATY 3-Phase Modular UPS Battery Modules - 120V DC Battery Module, Hot-Swappable, 1YR Warranty |
| SKU | BM120V30ATY |
| Sale Price | $1115.42 |
| Product | CyberPower PARLCARD306 3-Phase Modular UPS Parallel Control Cable - 16.4 ft Parallel Control Cable Male to Female, 1YR Warranty |
| SKU | PARLCARD306 |
| Sale Price | $201.34 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
