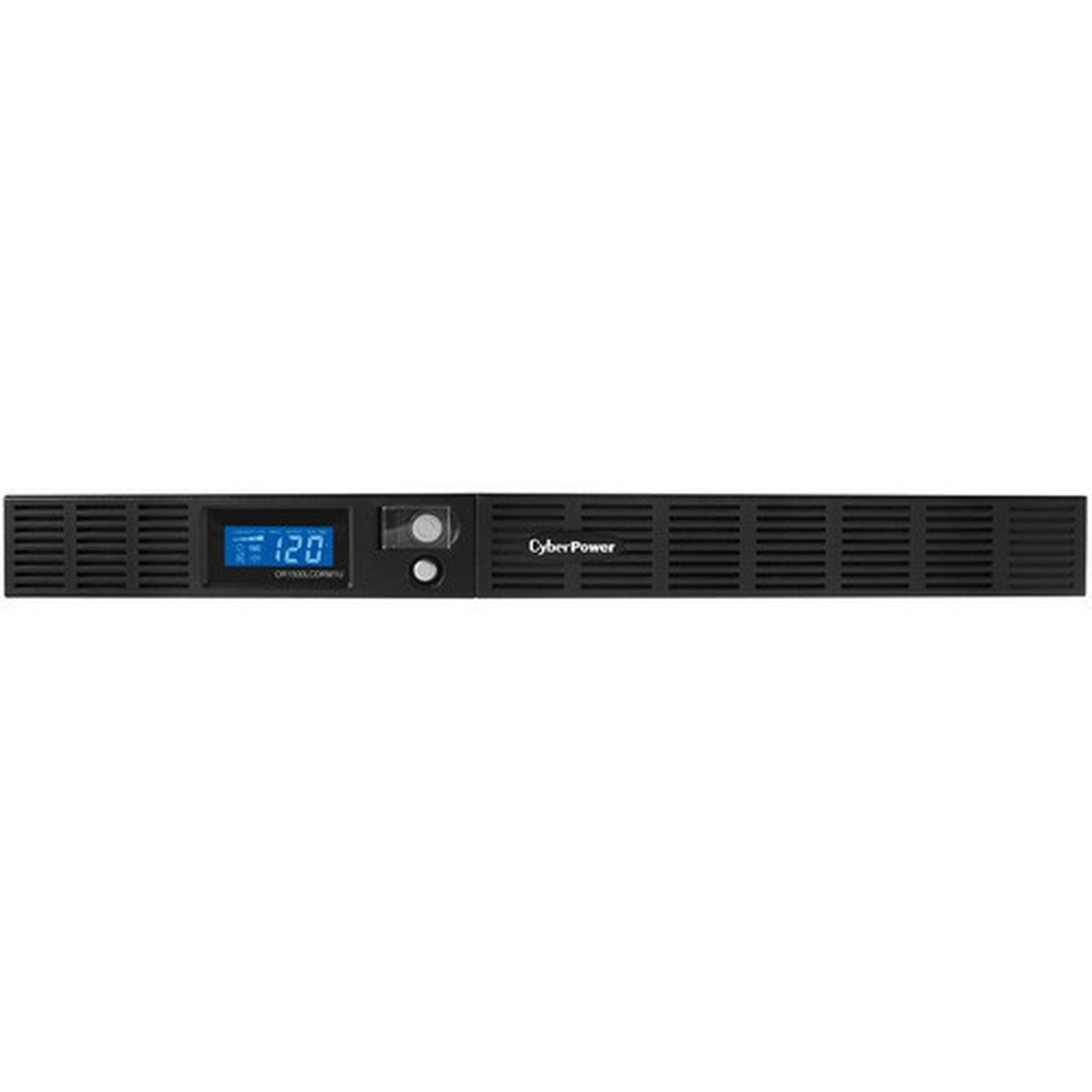

CyberPower Smart App Intelligent LCD OR1500LCDRM1U 1500VA UPS - 1500VA/900W - 2 Minute Full Load - 4 x NEMA 5-15R - 2 x NEMA 5-15R - (OR1500LCDRM1U)

Marketing Information:

• A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

  This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a

• 300,000 Connected Equipment Guarantee.

  More from the Manufacturer

AVR: Yes

Plug/Connector Type: NEMA 5-15P

Receptacle Type: NEMA 5-15R

Receptacle Detail: 6 x NEMA 5-15R

Number of Battery & Surge Outlets: 4

Number of Surge-only Outlets: 2

Transfer Time: 8 ms

Dataline Protection: RJ-45,RJ-11

Overload Protection: Yes

EMI/RFI Noise Filter: Yes

Energy Saving: GreenPower UPS™ Bypass Design

Load Capacity (VA): 1.50 kVA

Input Voltage: 120 V AC

Input Voltage Range: 90 V AC - 140 V AC

Output Voltage: 120 V AC

Input Frequency: 63 Hz

Output Frequency: 60 Hz

Waveform Type: Simulated Sine Wave

Surge Energy Rating: 1150 J

Network Management: SNMP Manageable

Alarm: Battery Mode

Status Indicators:

• Power On
• Multifunction LCD

Serial Port: Yes

USB: Yes

USB (HID Compliant) Port: Yes

DC System Voltage: 6 V DC

Number of Batteries: 4

Battery Chemistry: Lead Acid

Battery Size: 6V

Battery Capacity: 9000 mAh

Backup/Run Time (Full Load): 2 Minute

Backup/Run Time (Half Load): 11 Minute

Typical Battery Recharge Time: 8 Hour

Replaceable Battery: Yes

Maximum Operating Temperature: 104°F (40°C)

Storage Temperature: 5°F (-15°C) - 113°F (45°C)

Maximum Operating Elevation: 10000 ft (3048000 mm)

Maximum Storage Elevation: 50000 ft (15240000 mm)

Form Factor: Rack-mountable

Rack Height: 1U

Height: 1.75" (44.45 mm)

Width: 17.05" (433.07 mm)

Weight (Approximate): 14.97 kg

Software Included: PowerPanel® Business

Energy Star: Yes

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
