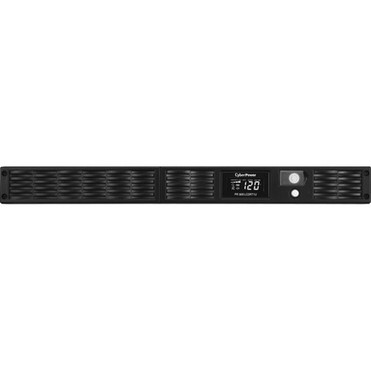

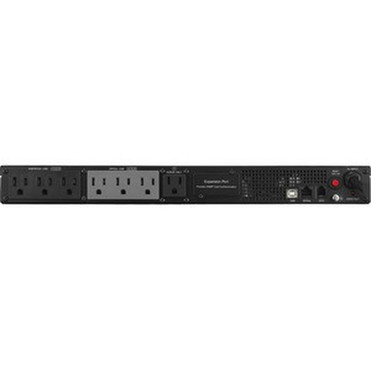

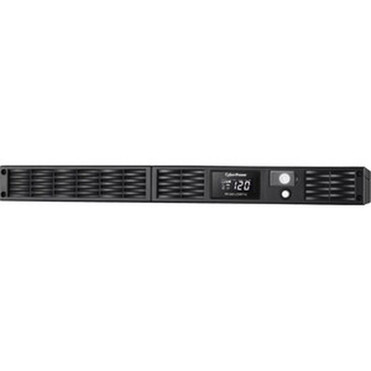

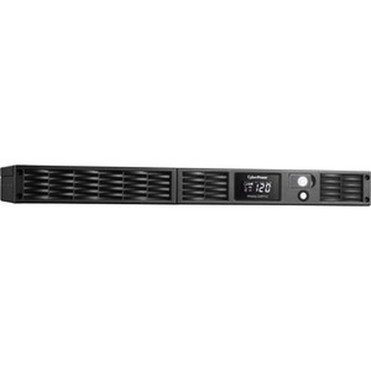

CyberPower Smart App Sinewave PR500LCDRT1U 500VA Pure Sine Wave 1U RT LCD UPS - Rack/Tower - 6 Hour Recharge - 3 Minute Stand-by - 120 (PR500LCDRT1U)
Write a Review
CYBER POWER SYSTEM - DT SB
CyberPower Smart App Sinewave PR500LCDRT1U 500VA Pure Sine Wave 1U RT LCD UPS - Rack/Tower - 6 Hour Recharge - 3 Minute Stand-by - 120 (PR500LCDRT1U)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Smart App Sinewave PR500LCDRT1U 500VA Pure Sine Wave 1U RT LCD UPS
- User Manual
- Functional Setup Guide
- USB Cable
- Serial Cable
- Emergency Power Off (EPO) Cable
- Registration Card
AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 7 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Number of Surge-only Outlets: 1
Number of Critical Load Outlets: 3
Transfer Time: 10 ms
Protection Type: Under Voltage,Over Voltage
Overload Protection: Yes
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS™ Bypass Technology
Cord Length: 10 ft (3048 mm)
Circuit Breaker Current Rating: 15 A
Load Capacity (VA): 500 VA
Load Capacity (Watt): 400 W
Input Voltage: 120 V AC
Input Voltage Range: 80 V AC - 150 V AC
Output Voltage: 120 V AC
Input Frequency: 50 Hz,60 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 1030 J
Output Power Factor: 0.8
Display: LCD
Network Management: SNMP/HTTP Remote Monitoring
Alarm: Battery Mode
Status Indicators: LED Indicators: Power On
Serial Port: Yes
USB (HID Compliant) Port: Yes
EPO Port: Yes
DC System Voltage: 6 V DC
Number of Batteries: 2
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 6V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 12 Minute
Typical Battery Recharge Time: 6 Hour
Replaceable Battery: Yes
Maximum Operating Temperature: 104°F (40°C)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 50000 ft (15240000 mm)
Thermal Dissipation: 27 BTU/h
Product Color: Black
Form Factor: Rack/Tower
Rack Height: 1U
Height: 1.75" (44.45 mm)
Width: 17.25" (438.15 mm)
Depth: 9.50" (241.30 mm)
Weight (Approximate): 19.80 lb (8981.13 g)
Package Contents:
Software Included: PowerPanel Business Edition
Energy Star: No
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Capacity:
- 500 VA / 400 W
- Topology:
- Line Interactive
- Waveform:
- Sine Wave
- Output:
- 120 VAC ± 5%
- Plug type & cord:
- NEMA 5-15P, 10 ft. cord
- Communication:
- USB, Serial, SNMP, Relay, EPO
- Management software:
- PowerPanel® Business Edition
- Remote management:
- Yes
- Warranty:
- 3 year
[custom-specifications]
| Specifications | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR500LCDRT1U |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Series | Smart App Sinewave UPS |
| Product Model | PR500LCDRT1U |
| Product Name | PR500LCDRT1U Smart App Sinewave UPS Systems |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 7 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 1 |
| Number of Critical Load Outlets | 3 |
| Transfer Time | 10 ms |
| Protection Type | Under Voltage,Over Voltage |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Cord Length | 10 ft (3048 mm) |
| Circuit Breaker Current Rating | 15 A |
| Power Description | |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 400 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 80 V AC - 150 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1030 J |
| Output Power Factor | 0.8 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 6 V DC |
| Number of Batteries | 2 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Thermal Dissipation | 27 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17.25" (438.15 mm) |
| Depth | 9.50" (241.30 mm) |
| Weight (Approximate) | 19.80 lb (8981.13 g) |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerPanel Business Edition |
| Energy Star | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
