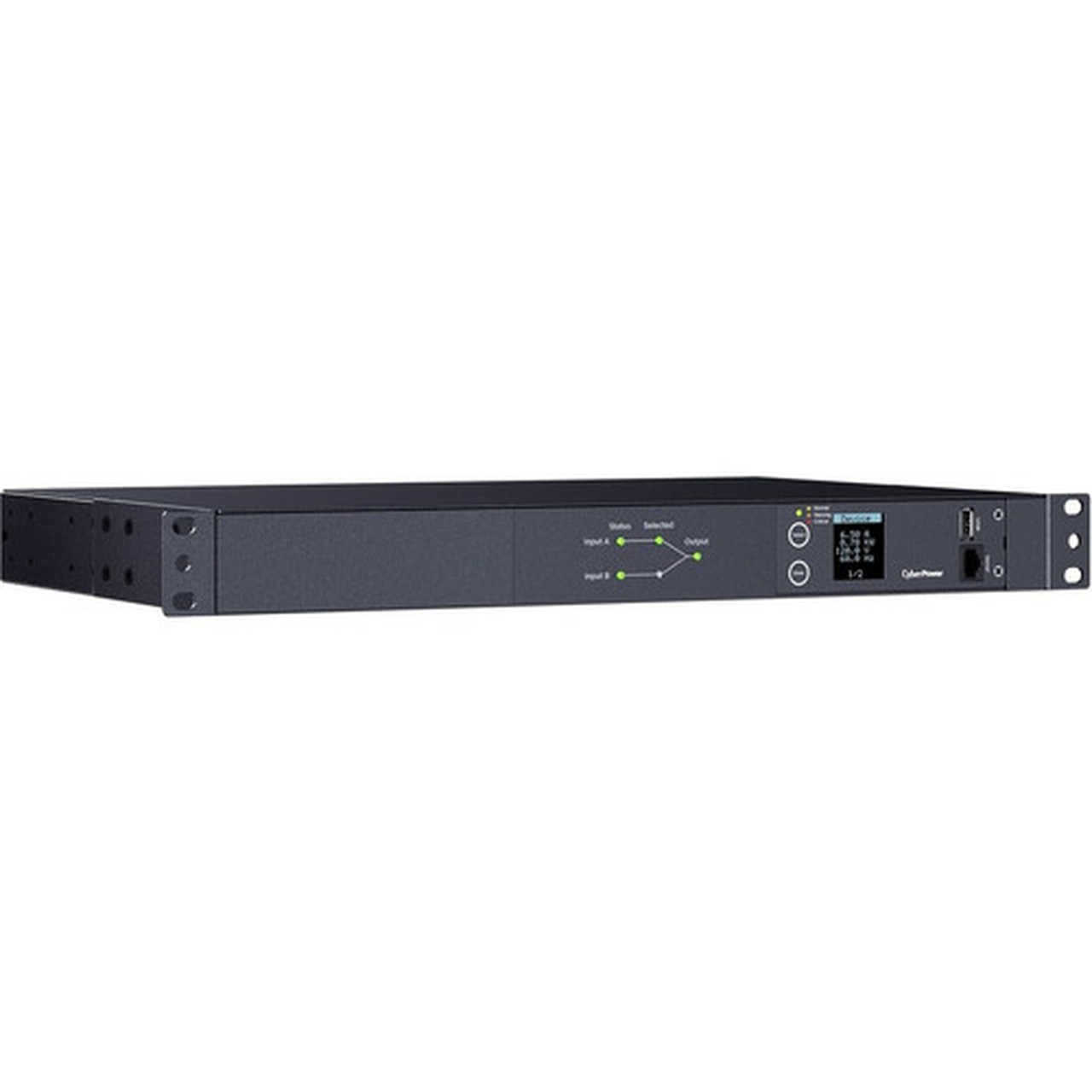

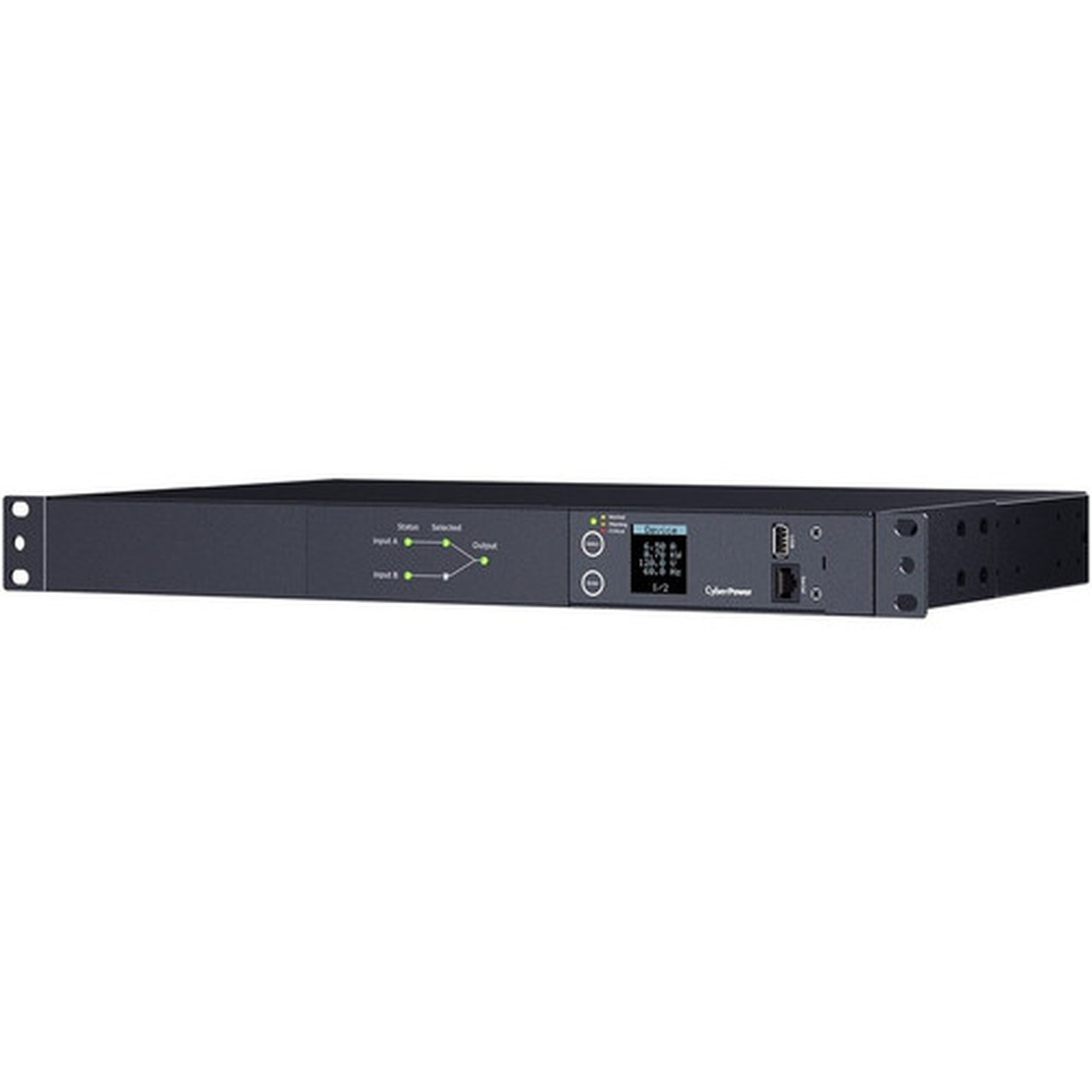

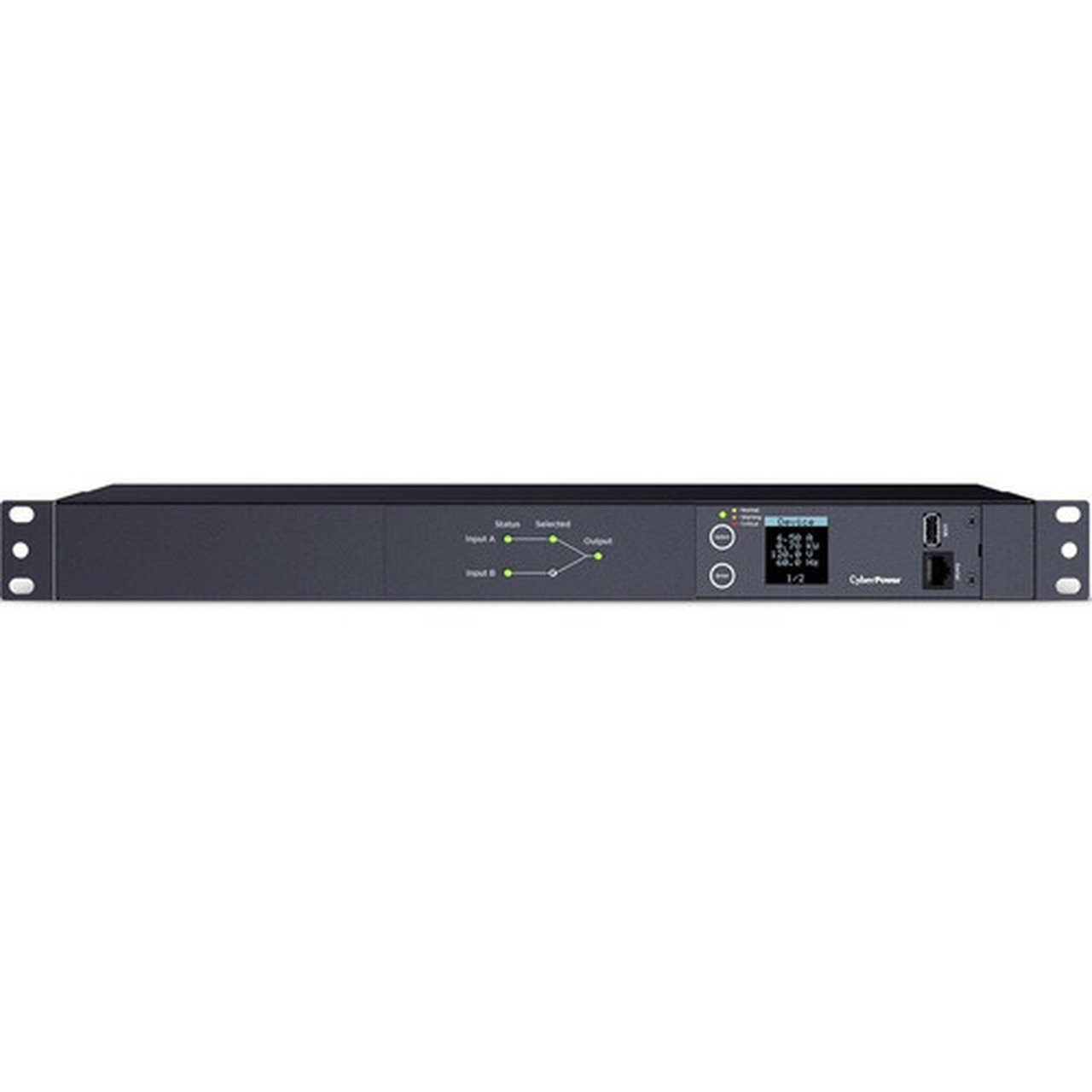

CyberPower Switched ATS PDU PDU24001 10-Outlets PDU - Metered - NEMA 5-15P - 10 x NEMA 5-15R - 120 V AC - Network (RJ-45) - 1U - - (PDU24001)

Marketing Information: Ensure continued operation of critical devices with the CyberPower PDU24001 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.

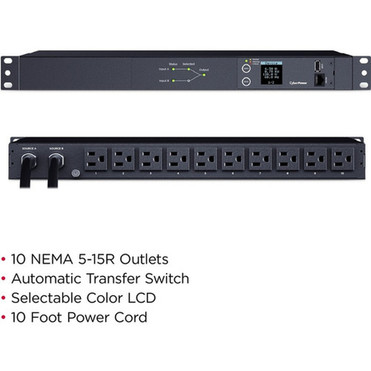

The PDU24001 supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24001 is protected by a three-year limited warranty.

PDU Type: Metered

Design: Modular

Phase: Single Phase

Plug/Connector Type: NEMA 5-15P

Plug/Connector Detail: 2 x NEMA 5-15P

Receptacle Type: NEMA 5-15R

Receptacle Detail: 10 x NEMA 5-15R

Input Voltage: 120 V AC

Input Voltage Range: 100 V AC - 120 V AC

Output Voltage: 120 V AC

Output Voltage Range: 100 V AC - 120 V AC

Input Current: 15 A

Network (RJ-45): Yes

Product Color: Black

Mounting Orientation: Horizontal

Mount Type: Rack-mountable

Rack Height: 1U

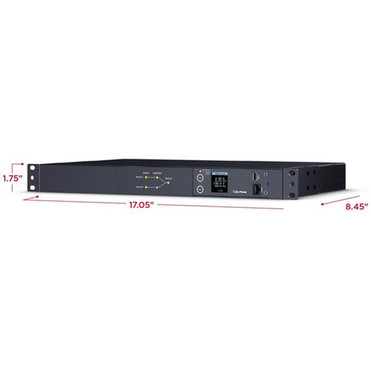

Height: 1.75" (44.45 mm)

Width: 17.05" (433.07 mm)

Depth: 8.45" (214.63 mm)

Weight (Approximate): 4.35 kg

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
