CyberPower UPS Systems OL10KSTF Hardware - Step-down transformer: 10,000 VA / 10,000 W - 10KVA/10KW Step-down Transformer 2U RT 6x 3 (OL10KSTF)

Marketing Information:

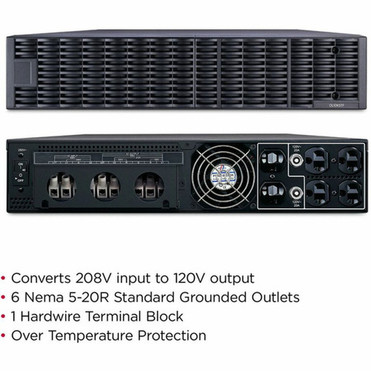

The CyberPower Smart App Online OL10KSTF rack/tower step-down isolation transformer converts 200 V to 240 V input voltage originating from utility power, a UPS, or a generator to 120 V output.

The OL10KSTF has a capacity of 10,000 VA / 10,000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel.

The included 3-foot power cable kit (6AWGHW3FT) connects the OL10KSTF to input power. Over temperature protection safeguards your OL10KSTF from damage if the internal heat exceeds safe operating parameters.

A Three-Year Warranty ensures that this extended battery module has passed our highest quality standards in design, assembly, material or workmanship.

Power Rating: 10 kVA

Input Receptacle Type: Hardwired

Output Receptacle Type: NEMA 5-20R,Terminal Block

Input Voltage: 230 V AC

Output Voltage: 120 V AC,208 V AC

Maximum Line Current: 50 A

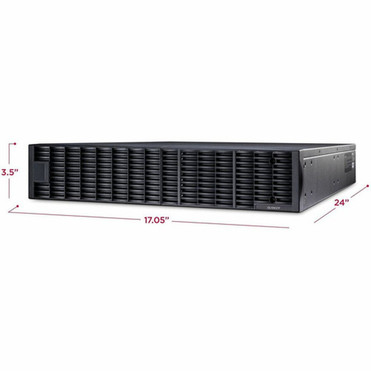

Height: 3.50" (88.90 mm)

Width: 17.05" (433.07 mm)

Depth: 24" (609.60 mm)

Form Factor: Tower/Rack Mountable

Rack Height: 2U

Weight (Approximate): 54.30 kg

Package Contents:

• OL10KSTF Isolation/Step-Down Transformer
• 3 ft hardwire power cable kit
• 2 x Terminal block cable glands
• Left & right rackmount rails
• Left & right hanging brackets
• Input/output terminal block cover
• Quick Start Guide
• Registration Card
• 2U rack mount ears (tower stands)
• Tower installation tie plate
• 8 x black flat head screws
• 12 x black pan head screws
• 6 x silver pan head screws
• 8 x Plastic washers
• 12 x Screw hole dust covers
• 12 x Rubber pads
• Safety Instruction Card

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
