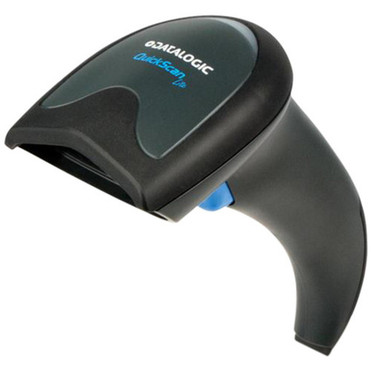

Datalogic General Purpose Corded Handheld Linear Imager Bar Code Reader - Cable Connectivity - 400 scan/s - 1D - Imager - - Keyboard - (QW2170-BK)

• Scan barcodes with a staggering speed of 400 scan/s
• Perfect for applications that require direct association with a workstation or a notebook

Marketing Information: The QuickScan™ reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:

1D / Linear Codes:

• Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Postal Codes:

• Australian Post
• British Post
• Canadian Post
• China Post
• Japanese Post
• KIX Post
• Korea Post
• Planet Code
• Postnet
• Royal Mail Code (RM4SCC)

Stacked Codes:

• EAN/JAN Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional

Image Sensor Type: Imager
Scan Rate: 400 scan/s
Scan Pattern: Omni-directional
Host Interface:
• Keyboard Wedge
• Serial

Form Factor: Handheld
Product Color: Black
Height: 6.70" (170.18 mm)
Width: 2.50" (63.50 mm)
Depth: 2.70" (68.58 mm)
Weight (Approximate): 119.1 g
Country of Origin: Vietnam
