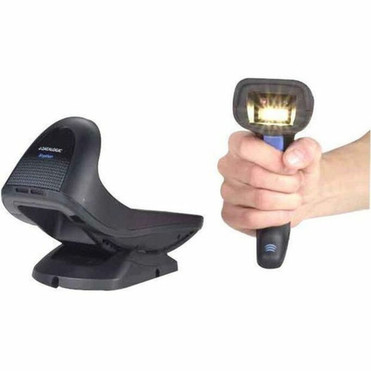

Datalogic Gryphon 4500 GBT4500 Barcode Scanner Kit - Wireless Connectivity - 15.70" (398.78 mm) Scan Distance - 1D, 2D - Laser - - - - (GBT4500-BK-BTK1HDD)
Write a Review
Datalogic
Datalogic Gryphon 4500 GBT4500 Barcode Scanner Kit - Wireless Connectivity - 15.70" (398.78 mm) Scan Distance - 1D, 2D - Laser - - - - (GBT4500-BK-BTK1HDD)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code
- QR Code
- Australian Post
- British Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
- Digimarc Barcodes
- 3Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported: 1D:
Light Source: Laser
Image Sensor Type: Imager
Scan Pattern: Area,Omni-directional
Scanner Range: High Density
Scanning Distance: 15.70" (398.78 mm)
Cable Type Included: USB
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 35 in/s (889 mm/s)
Image Formats: BMP,JPEG,TIFF
Maximum Ambient Light: 100000 lux
Drop Specification:
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)
Maximum Element Resolution (Code 39): 5 mil (0.13 mm)
Minimum Element Resolution (DataMatrix): 5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Minimum Element Resolution (PDF417): 4 mil (0.10 mm)
Maximum Element Resolution (PDF417): 10 mil (0.25 mm)
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 16kV
Features: Beep,Vibration,Notification LED
Bluetooth: Yes
Radio Frequency: Yes
Host Interface: USB,Serial,Keyboard Wedge
Battery Capacity: 3250 mAh
Maximum Battery Recharge Time: 4 Hour
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Handheld
Color Family: Dual Color
Product Color: Black,White
Durability: Water Resistant,Dust Resistant
Weight (Approximate): 8.29 oz (235 g)
Ingress Protection (IP) Rating: IP52
Application/Usage: Industrial,Retail,Healthcare,Transportation,Manufacturing,Commercial Service
- Laser scan engine guarantees rapid error free data entry
- Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | GBT4500BKBTK1HDD |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | Gryphon |
| Product Series | 4500 |
| Product Model | GBT4500 |
| Product Name | Gryphon 4500 GBT4500 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
|
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Pattern | Area,Omni-directional |
| Scanner Range | High Density |
| Scanning Distance | 15.70" (398.78 mm) |
| Cable Type Included | USB |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 35 in/s (889 mm/s) |
| Image Formats | BMP,JPEG,TIFF |
| Maximum Ambient Light | 100000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 4 mil (0.10 mm) |
| Maximum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 16kV |
| Features | Beep,Vibration,Notification LED |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | USB,Serial,Keyboard Wedge |
| Battery Information | |
| Battery Capacity | 3250 mAh |
| Maximum Battery Recharge Time | 4 Hour |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Dual Color |
| Product Color | Black,White |
| Durability | Water Resistant,Dust Resistant |
| Weight (Approximate) | 8.29 oz (235 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Industrial,Retail,Healthcare,Transportation,Manufacturing,Commercial Service |
[/custom-specifications]
[custom-options]
| Product | Datalogic Battery - For Barcode Scanner - Battery Rechargeable - 3250 mAh - 1 |
| SKU | RBP-GM45 |
| Sale Price | $41.43 |
| Product | Datalogic Cradle - Docking - Bar Code Scanner - Charging Capability - Synchronizing Capability - USB, Serial - Black |
| SKU | WLC4090-BK-BT |
| Sale Price | $296.24 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
