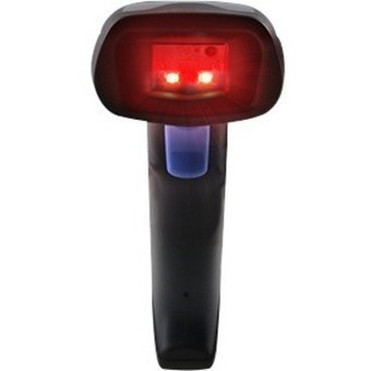

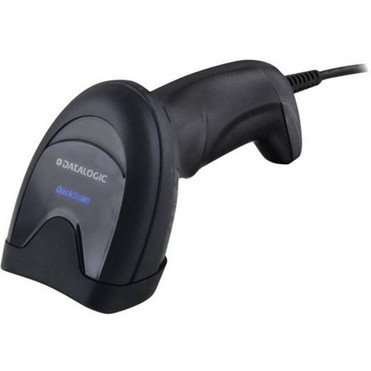

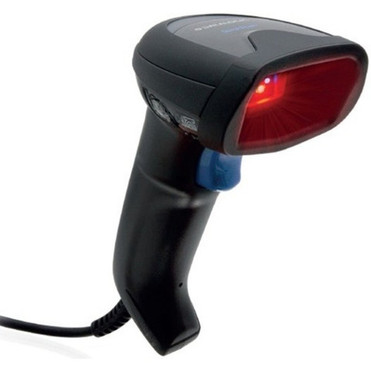

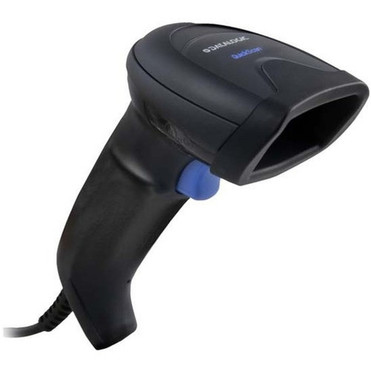

Datalogic QuickScan 2500 - Cable Connectivity - 20.10" (510.54 mm) Scan Distance - 1D, 2D - Imager - Omni-directional - USB, Serial, - (QD2590-BKK1S)

Marketing Information:

Reliable, repeatable performance that you need

The new QuickScan 2500 imager from Datalogic is an entry level 2D corded handheld scanner that punches well above its weight when it comes to performance. It is the robust and reliable companion in the retail sector for your POS checkout, built for many years of continued service. It effortlessly reads a full range of barcodes, be they damaged, hard to read, or poorly printed. In addition, with today's Covid safeguards in place, the QuickScan 2500 imager is optimized to seamlessly read through plexiglass barriers. All of these must-have benefits are available at an incredibly affordable price, making the QuickScan QuickScan 2500 imager the latest and most desirable addition to the Datalogic family of renowned handheld barcode scanners.

Improve performance with user friendly feedback

When using the QuickScan 2500 imager, you want a low-cost device with top guaranteed scanning performance and a reliable read every time, period. You want an easy to aim device that gives clear audible, tactile and visual feedback on each read, good or bad. You want a device that sits comfortably in your hand and never gives you fatigue, no matter how long your working shift. The QuickScan 2500 imager does not fail, even when continually used for long periods of time and provides plenty of freedom of movement with high quality cables that are robust enough to withstand constant abuse. Any type of barcode - 1D, 2D, postal codes, stacked or composite barcodes, dotcodes, and digital watermark codes - the QuickScan 2500 imager has you covered.

Connect, configure, use

As well as being the very affordable and easy to use handheld scanning solution for your business, the QuickScan 2500 imager is extremely easy to setup. It will give you the best fit for your store environment. The simple and seamless configuration of the scanner with connectivity to all manner of hosts, makes this the only solution you will need for your business. It is well built and will comfortably survive 5 ft drops and over 10 million trigger presses. The adjustable brightness of the light source makes it comfortable to suit most people's eyes. With Motionix technology, the imager is ready for action as soon as it is picked up. All in all, you have at your fingertips the perfect device for scanning all your goods.

Perform, perform, perform

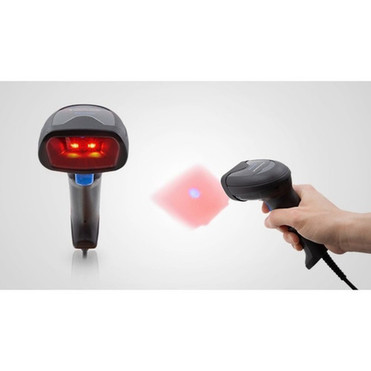

The QuickScan 2500 imager boasts a very rich feature set for out-of-the-box capabilities. The 1 MP optics provide best-in-class scanning and depth of field for all your applications. No need to worry about scanning orientation as it is omnidirectional. It will seamlessly read codes displayed on smartphone screens, making promotions and coupons easy to manage. The imager is equipped with an easy to see aiming system that consists of two blue triangles, providing full guidance with extreme precision. This makes it easy for the staff to target the right code to read, and the patented Green Spot technology from Datalogic is clearly projected as a visual indicator upon each successful read.

Connectivity Technology: Cable

Scanning Capability: 1D,2D

Barcode Symbology Supported: 1D :

• Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.

• Aztec Code
• China Han Xin Code
• Data Matrix
• MaxiCode
• Micro QR Code
• QR Code
• Dot code

• Australian Post
• British Post
• China Post
• IMB
• Japanese Post
• KIX Post
• Planet Code
• Postnet
• Royal Mail Code (RM4SCC)

• EAN/JAN Composites
• GS1 DataBar Composites
• GS1 DataBar Expanded Stacked
• GS1 DataBar Stacked
• GS1 DataBar Stacked Omnidirectional
• MacroPDF
• MicroPDF417
• PDF417
• UPC A/E Composites

• Digimarc Barcodes (QD2500, QM2500, QBT2500 only)

Image Sensor Type: Imager

Scan Pattern: Omni-directional

Scanning Distance: 20.10" (510.54 mm)

Cable Type Included: USB

Stand Included: Yes

Reading Angle (Skew): 65°

Reading Angle (Pitch): 65°

Reading Angle (Roll): 360°

Motion Tolerance: 762 mm/s

Image Formats: JPEG,BMP,TIFF

Maximum Ambient Light: 110000 lux

Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.

Minimum Print Contrast: 15%

Minimum Element Resolution (Code 39): 5 mil (0.13 mm)

Maximum Element Resolution (Code 39): 10 mil (0.25 mm)

Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)

Maximum Element Resolution (PDF417): 6.70 mil (0.17 mm)

Host Interface: USB,Serial,Keyboard Wedge

Form Factor: Handheld

Color Family: Black

Product Color: Black

Weight (Approximate): 145 g

Ingress Protection (IP) Rating: IP52

Application/Usage: Retail,Commercial Service,Hospitality,Ticketing,Government,Healthcare,Light/Clean Manufacturing,Industrial

Environmentally Friendly: Yes

Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS)
