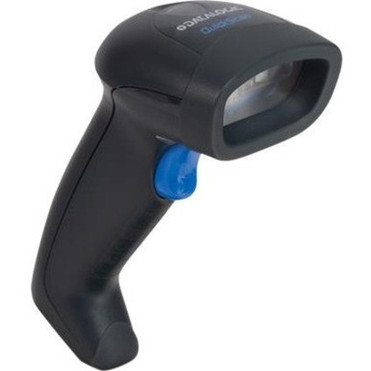

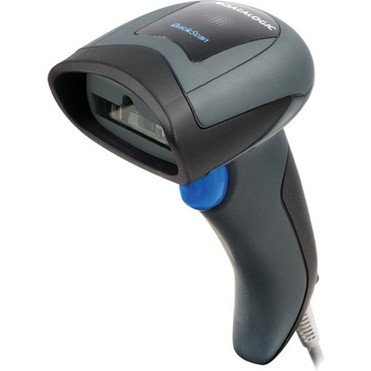

Datalogic QuickScan I QD2131 Handheld Barcode Scanner Kit - Cable Connectivity - 270 scan/s - 29.53" (750 mm) Scan Distance - 1D - - - (QD2131-BKK1)

(No reviews) Write a Review
$329.29
$200.64
(You save $128.65 )
SKU: QD2131-BKK1
UPC: 28592322218
Weight: 1.00 LBS

Pre-order! 🗨️📞

    Marketing Information: The QuickScan reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan I QD2100 linear imaging reader is an entry level product that is perfect for use in retail and office environments plus activities associated with couriers and postal services.

    The QD2100 is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance especially on hard to read bar codes and is capable of reading a wide range of symbologies including the majority of 1D codes plus GS1 DataBar™ linear codes. The QD2100 reader features Datalogic's exclusive patented 'Green Spot' for good read feedback directly on the code. When in Stand Mode, the Green Spot remains on to show the operator where to position the code for quick and intuitive reading.

    Like the QuickScan L reader, the QD2100 has been designed with durability in mind. One of the most vulnerable features of any scanner is damage to the scan window. When such incidents happen, the scanner may have to be replaced. The QD2100 was specifically designed so that a replacement window pack can be ordered to replace damaged or scratched windows without having to send the scanner away for repairs. This helps to reduce the total cost of ownership during the life of the scanner and helps to ensure that it is always available for use.
    Connectivity Technology: Cable
    Scanning Capability: 1D
    Barcode Symbology Supported: 1D / LINEAR CODES
    • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
    POSTAL CODES
    • China Post
    STACKED CODES
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional

    Image Sensor Type: Imager
    Scan Rate: 270 scan/s
    Scanner Range: Extended Range
    Scanning Distance: 29.53" (750 mm)
    Cable Type Included: USB
    Reading Angle (Skew): 70°
    Reading Angle (Pitch): 65°
    Reading Angle (Roll): 45°
    Maximum Ambient Light: 120000 lux
    Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
    Minimum Print Contrast: 25%
    Minimum Element Resolution (Code 39): 4 mil (0.10 mm)
    Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
    Host Interface: USB
    Form Factor: Handheld
    Product Color: Black
    Height: 8.66" (219.96 mm)
    Width: 3.14" (79.76 mm)
    Length: 3.93" (99.82 mm)
    Weight (Approximate): 121.9 g
    Ingress Protection (IP) Rating: IP42
    Application/Usage:
    • Industrial
    • Retail
    • Inventory

    Platform Supported:
    • iOS
    • Android

    Country of Origin: Vietnam

[custom-specifications]

Specifications
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: QD2131-BKK1
Manufacturer Website Address: http://www.datalogic.com
Brand Name: Datalogic
Product Line: QuickScan I
Product Series: QD2100
Product Model: QD2131
Product Name: QuickScan I QD2131 Handheld Barcode Scanner Kit
Packaged Quantity: 2
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported: 1D / LINEAR CODES
  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
POSTAL CODES
  • China Post
STACKED CODES
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional

Image Sensor Type: Imager
Scan Rate: 270 scan/s
Scanner Range: Extended Range
Scanning Distance: 29.53" (750 mm)
Cable Type Included: USB
Reading Angle (Skew): 70°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45°
Maximum Ambient Light: 120000 lux
Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 4 mil (0.10 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Interfaces/Ports
Host Interface: USB
Physical Characteristics
Form Factor: Handheld
Product Color: Black
Height: 8.66" (219.96 mm)
Width: 3.14" (79.76 mm)
Length: 3.93" (99.82 mm)
Weight (Approximate): 121.9 g
Miscellaneous
Ingress Protection (IP) Rating: IP42
Application/Usage:
  • Industrial
  • Retail
  • Inventory

Platform Supported:
  • iOS
  • Android

Country of Origin: Vietnam
