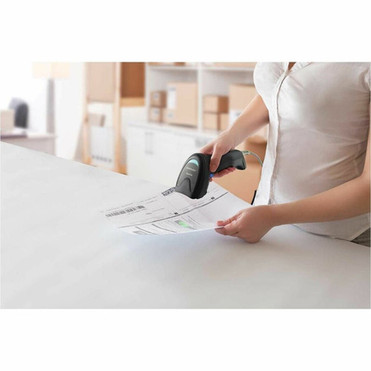

Datalogic QuickScan QD2220-BK Barcode Scanner - Cable Connectivity - 1D - LED - Imager, CCD - Linear - USB - Black - IP42 - Retail, (QD2220-BK)
Write a Review
Datalogic
Datalogic QuickScan QD2220-BK Barcode Scanner - Cable Connectivity - 1D - LED - Imager, CCD - Linear - USB - Black - IP42 - Retail, (QD2220-BK)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- ? Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:
1D / Linear Codes:
Light Source: LED
Image Sensor Type: Imager,CCD
Scan Mode: Trigger
Scan Pattern: Linear
Scanner Range: Standard Range
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45°
Motion Tolerance: 40 in/s (1016 mm/s)
Maximum Ambient Light: 120000 lux
Drop Specification:
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 4 mil (0.10 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Illumination Type: LED
Illumination Color: Red
Host Interface: USB
Input Current: 165 mA
Standby Current: 40 mA
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Handheld
Product Color: Black
Weight (Approximate): 4.34 oz (123 g)
Ingress Protection (IP) Rating: IP42
Application/Usage: Retail,Industrial,Commercial Service,Hospitality,Government
- Laser-free design provides high-performance scanning without the risk of eye injury
- Wired connectivity makes this scanner ideal for retail and desktop applications
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | QD2220BK |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | QuickScan I |
| Product Series | 2200 |
| Product Model | QD2220-BK |
| Product Name | QuickScan QD2220-BK Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | 1D / Linear Codes:
|
| Light Source | LED |
| Image Sensor Type | Imager,CCD |
| Scan Mode | Trigger |
| Scan Pattern | Linear |
| Scanner Range | Standard Range |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 45° |
| Motion Tolerance | 40 in/s (1016 mm/s) |
| Maximum Ambient Light | 120000 lux |
| Drop Specification | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 4 mil (0.10 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Illumination Type | LED |
| Illumination Color | Red |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Input Current | 165 mA |
| Standby Current | 40 mA |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Black |
| Weight (Approximate) | 4.34 oz (123 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP42 |
| Application/Usage | Retail,Industrial,Commercial Service,Hospitality,Government |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
