Digi PortServer TS 4 P MEI (mid- and end-span PoE) (International) - 1 x Network (RJ-45) - 4 x Serial Port - 10/100Base-TX - Fast (Fleet Network)
Digi PortServer TS 4 P MEI (mid- and end-span PoE) (International) - 1 x Network (RJ-45) - 4 x Serial Port - 10/100Base-TX - Fast (Fleet Network)

Have questions?

1-844-836-8268

Ask an Experts

  • Canadian Distributor

    Proud Canadian team since 2007

  • IT experts available

    Consulting & Technicians services

  • Configuration services available

    From VoiP phone to Cluster servers

  • Fast Delivery

    Shipped Trough UPS & Purolator

Free Shipping*

Shipping Restrictions

Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.

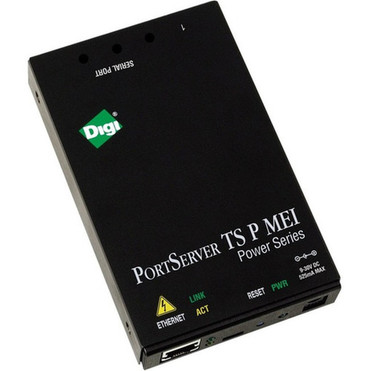

Digi PortServer TS 4 P MEI (mid- and end-span PoE) (International) - 1 x Network (RJ-45) - 4 x Serial Port - 10/100Base-TX - Fast (70001993)

(No reviews) Write a Review
$1,562.14
$1,511.41
$1,157.64
(You save $404.50 )
SKU: 70001993
UPC: 663072928865
Weight: 1.40 LBS
Adding to cart… The item has been added
    Marketing Information:

    PortServer TS P MEI makes it easy to connect RS-232/422/485 serial devices to an IP network. By supporting versatile powering options like powered Ethernet and powered serial, this serial server can adapt to many applications where traditional power alternatives are required.

    Powered Ethernet (802.3af, mid- and end-span support) makes it possible to run just one Ethernet cable to the device server for both power and communications. The powered serial feature enables PortServer TS P MEI to power a device over serial using Ring Indicator (RI) or DTR pins. Each power feature is available in addition to a traditional power connector, and can serve as redundant power in case of an outage from either source.

    Available in two- and four-port versions, PortServer TS P MEI delivers universal, high performance multiport serial-to- Ethernet connectivity. It is ideal for applications requiring COM ports, serial tunneling, or where TCP/UDP Socket functionality is needed.


    Ethernet Technology: Fast Ethernet
    Network Standard: 10/100Base-TX
    Network (RJ-45): Yes
    Serial Port: Yes
    Number of Network (RJ-45) Ports: 1
    Number of Serial Ports: 4
    Input Voltage: 12 V DC
    Height: 0.95" (24.13 mm)
    Width: 3.33" (84.58 mm)
    Depth: 5.25" (133.35 mm)
    Weight (Approximate): 63.8 g
    Package Contents:
    • PortServer TS 4 P MEI (mid- and end-span PoE) (International)
    • RJ45-DB-9F Console Adapter

[custom-specifications]

Specifications
Manufacturer: Digi International
Manufacturer Part Number: 70001993
Manufacturer Website Address: http://www.digi.com
Brand Name: Digi
Product Line: PortServer
Product Name: PortServer TS 4 P MEI (mid- and end-span PoE) (International)
Product Type: Device Server
Network & Communication
Ethernet Technology: Fast Ethernet
Network Standard: 10/100Base-TX
Interfaces/Ports
Network (RJ-45): Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 1
Number of Serial Ports: 4
Power Description
Input Voltage: 12 V DC
Physical Characteristics
Height: 0.95" (24.13 mm)
Width: 3.33" (84.58 mm)
Depth: 5.25" (133.35 mm)
Weight (Approximate): 63.8 g
Miscellaneous
Package Contents:
  • PortServer TS 4 P MEI (mid- and end-span PoE) (International)
  • RJ45-DB-9F Console Adapter

[/custom-specifications]

[custom-options]











[/custom-options]

[custom-user-manual]

User Manual

[/custom-user-manual]
