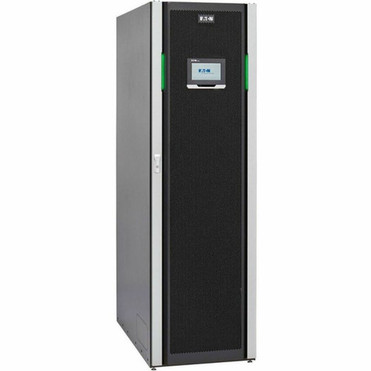

Eaton 93PM 40kW Tower UPS - Tower - 230 V AC Input - 220 V AC, 208 V AC Output - USB - LCD Display (9GC208A409A00R0)

Marketing Information:

Efficient. Scalable. Innovative.

The Eaton® 93PM UPS combines high efficiency and reliability with an eye-catching design. A space-saving, scalable and flexible device that's as easy to deploy as it is to manage; it's the perfect three-phase white or grey space solution for today's data center.

Lowest TCO (total cost of ownership)

• Conserve valuable data center floor space with the compact footprint and optional maintenance bypass
• Grow effortlessly with vertical scalability, reducing cost and unexpected future growth risks
• Reduce power and cooling OPEX through industry-leading energy efficiency - Up to 98.5 percent efficiency with Energy Saver System (ESS) - Up to 95 percent efficiency in double-conversion mode

Easy deployment

• Provides flexible configurability
• Includes swappable technology to scale in minutes and minimize downtime

Easy management

• Track statistics on energy savings, battery time and outages
• Profile your load and much more with the friendly graphical LCD touchscreen interface
• View system status from a distance with the green/yellow/ red LED light bars

Advanced IT integration

• Supports optional communication cards that allow remote access via the HTTP(S), SNMP, MODBUS TCP/IP, Modbus RTU and BACnet IP protcols
• Manage your power devices in your physical or virtual environment with Eaton's Power Xpert® software and Intelligent Power™ Software Suite
• Increase uptime through 24x7 remote monitoring and reporting capabilities using Eaton's PredictPulse™ service that alerts technicians during critical events and results in faster resolutions when a problem is detected; learn more at Eaton.com/PredictPulse

Plug/Connector Type: Hard Wire 4-wire

Receptacle Type: Hardwired

Phase: Three Phase

Application/Usage: Data Center

Efficiency: 95%

Load Capacity (Watt): 40 kW

Input Voltage: 230 V AC

Output Voltage: 220 V AC,208 V AC

Input Frequency: 60 Hz,50 Hz

Output Frequency: 60 Hz,50 Hz

Input Power Factor: 0.8

Display: LCD

Network Management: HTTPS/SNMP/Modbus TCP-IP/Modbus RTU/BACnet IP

USB: Yes

EPO Port: Yes

DC System Voltage: 480 V DC

Form Factor: Tower

Height: 74" (1879.60 mm)

Width: 22" (558.80 mm)

Depth: 42" (1066.80 mm)
