Eaton 9PXPPDM2 3U PowerPass Distrbution Module - Hardwired - 3U - Rack-mountable (9PXPPDM2)

Marketing Information:

208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output

The 9PXPPDM2 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features hardwired input and output for connecting equipment and resettable 30A circuit breakers that protect against overload conditions.

Compatible with Select Eaton 5kVA/6kVA 9PX UPS Systems

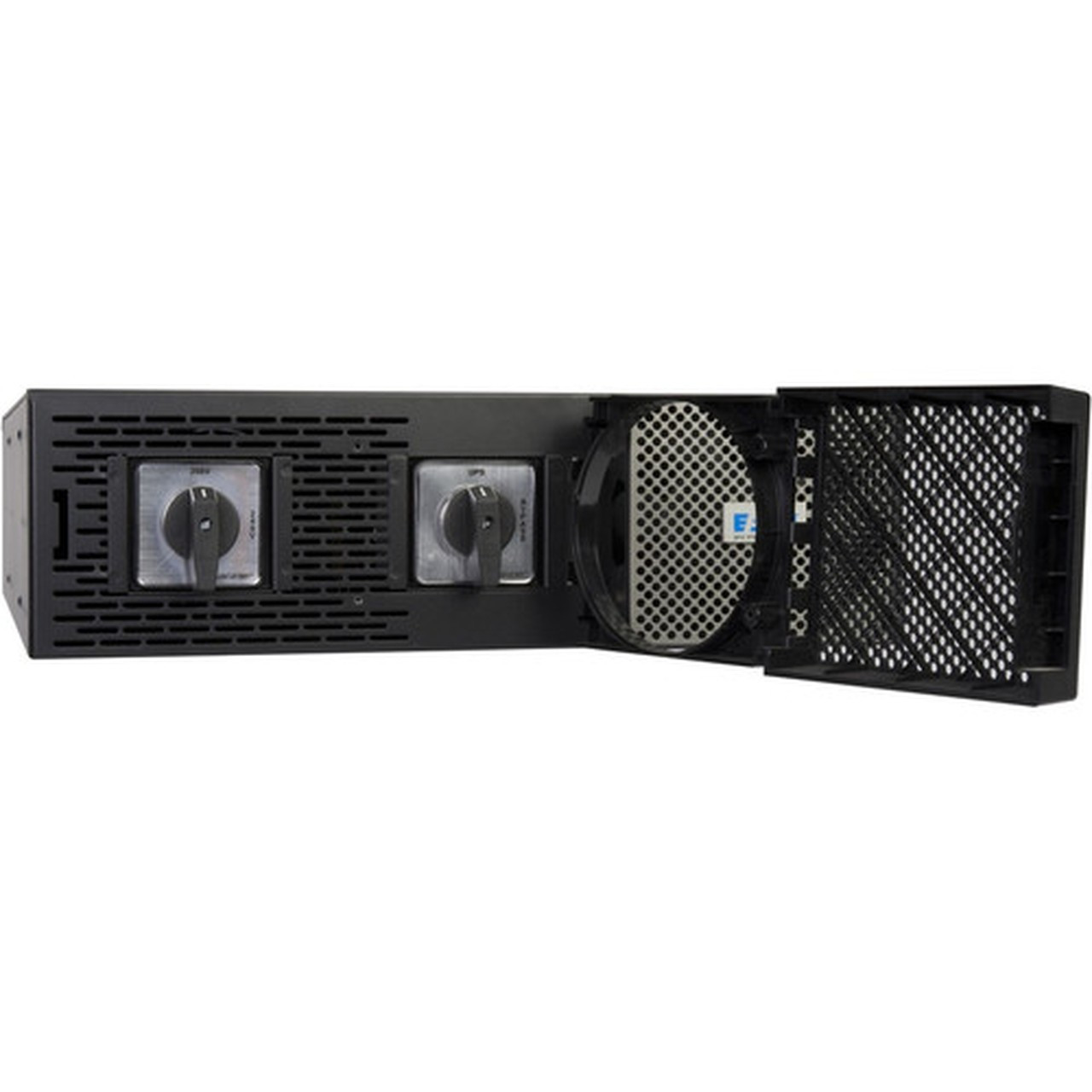

The 9PXPPDM2 works with Eaton's 9PX5K, 9PX6K and 9PX3K3UN 9PX UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains protected against power surges and spikes, even while the UPS system is not present.

Versatile Installation Options

You can mount the 9PXPPDM2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware.

Plug/Connector Type: Hardwired

Receptacle Type: Hardwired

Mount Type: Rack-mountable

Rack Height: 3U

Height: 5.10" (129.54 mm)

Width: 17.30" (439.42 mm)

Depth: 27" (685.80 mm)

Package Contents:

• 9PXPPDM2 3U PowerPass Distrbution Module
• 4-Post Rail Kit
• Quick Start Guide
• Joining Brackets for Tower Configuration
• EBM Connector Cable

Country of Origin: Philippines

Limited Warranty: 3 Year
