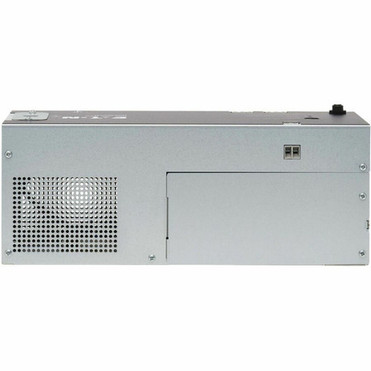

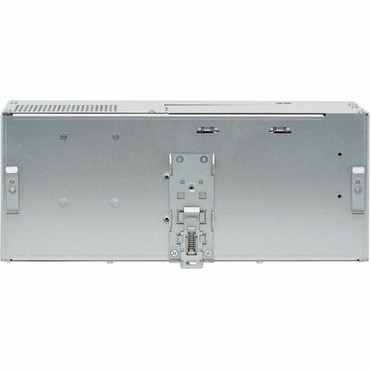

Eaton DIN850AC 850VA DIN Rail UPS - DIN Rail - 2 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Pulse-width Sine (DIN850AC)
Write a Review
Eaton
Eaton DIN850AC 850VA DIN Rail UPS - DIN Rail - 2 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Pulse-width Sine (DIN850AC)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- ALARM - RED - Flashes when the battery needs to be recharged and tested.
- SOLID RED when the unit is subjected to an overload condition.
- YELLOW - ON SOLID when the UPS is supplying battery power to the loads.
- GREEN - ON SOLID GREEN when the line input voltage is normal.
- DIN850AC 850VA DIN Rail UPS
- USB Communication Cable
- Safety Card
- Owner's Manual
Plug/Connector Type: Hardwired
Receptacle Type: Hardwired
Receptacle Detail: 1 x Hardwired
Transfer Time: 10 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage: Edge Computing,Network,Storage Device,Factory,Automation Industry,Manufacturing Facility,IT System,Industrial,Machine Control
Load Capacity (VA): 850 VA
Load Capacity (Watt): 510 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Output Frequency: 60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 588 J
Output Power Factor: 0.6
Display: LED
Status Indicators:
LED Indicators:
EPO Port: Yes
USB (HID Compliant) Port: Yes
DC System Voltage: 12 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 7 Minute
Maximum Operating Elevation: 9843 ft (3000146.40 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Maximum Operating Temperature: 122°F (50°C)
Sound Emission (A-Weighted): 40 dB(A)
Thermal Dissipation: 52.10 BTU/h
Height: 5.20" (132.08 mm)
Width: 12.20" (309.88 mm)
Depth: 5.50" (139.70 mm)
Form Factor: DIN Rail
Weight (Approximate): 12.10 lb (5488.47 g)
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Prevent critical data loss by staying powered during a blackout with up to 510 W load capacity
- Up to 2 minute runtime on full load to preserve critical data from power shortage interruptions
- 850 VA load capacity - work without any interruption during power outages
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | DIN850AC |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Eaton |
| Product Model | DIN850AC |
| Product Name | DIN850AC 850VA DIN Rail UPS |
| Product Type | Standby UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Receptacle Detail | 1 x Hardwired |
| Transfer Time | 10 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage | Edge Computing,Network,Storage Device,Factory,Automation Industry,Manufacturing Facility,IT System,Industrial,Machine Control |
| Power Description | |
| Load Capacity (VA) | 850 VA |
| Load Capacity (Watt) | 510 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 588 J |
| Output Power Factor | 0.6 |
| Display & Graphics | |
| Display | LED |
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Interfaces/Ports | |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 12 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 7 Minute |
| Environmental Conditions | |
| Maximum Operating Elevation | 9843 ft (3000146.40 mm) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Sound Emission (A-Weighted) | 40 dB(A) |
| Thermal Dissipation | 52.10 BTU/h |
| Physical Characteristics | |
| Height | 5.20" (132.08 mm) |
| Width | 12.20" (309.88 mm) |
| Depth | 5.50" (139.70 mm) |
| Form Factor | DIN Rail |
| Weight (Approximate) | 12.10 lb (5488.47 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite by Eaton Battery Unit - Sealed Lead Acid (VRLA) - Sealed Lead Acid (SLA) |
| SKU | RBC12V9ET |
| Sale Price | $114.86 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Information
2 Year
