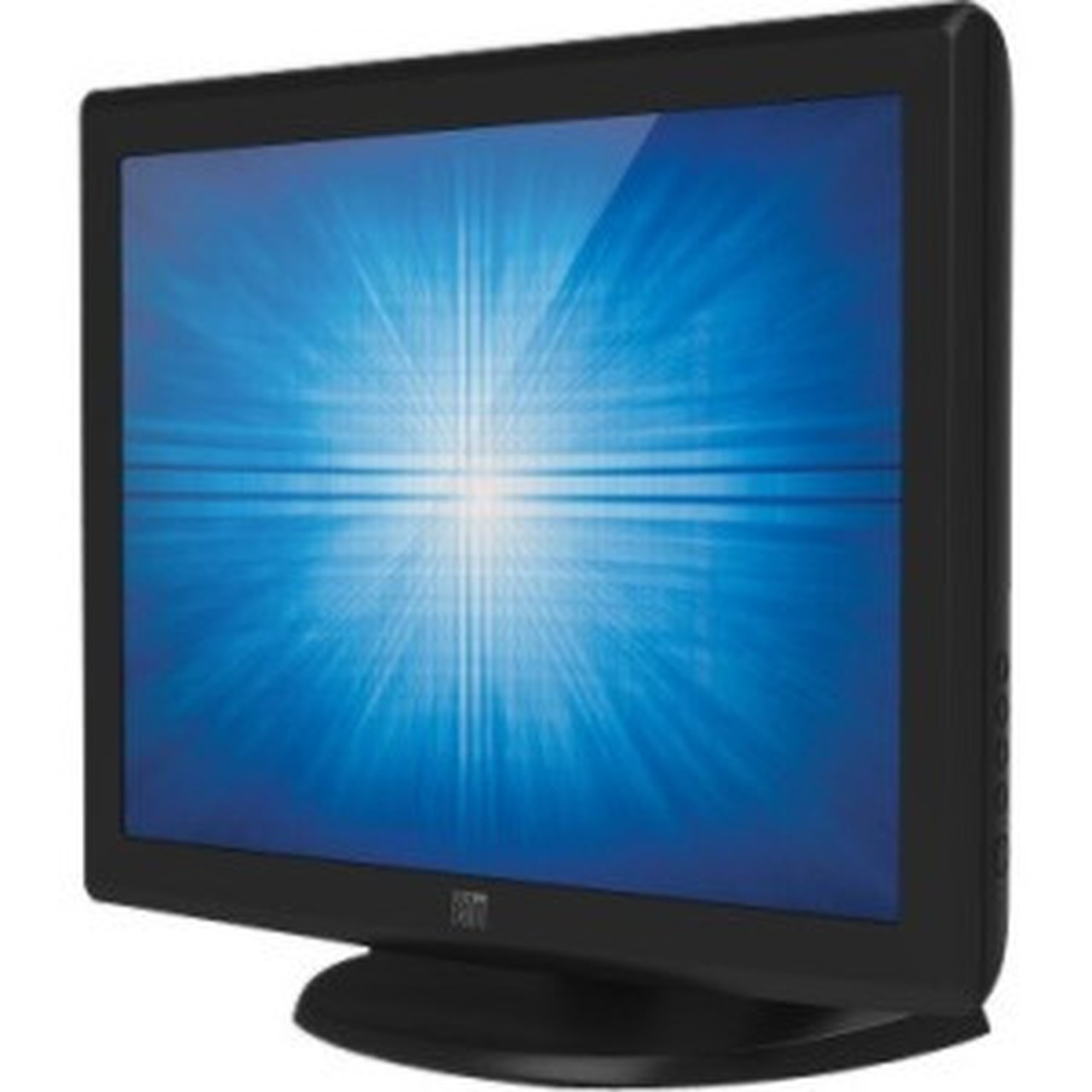

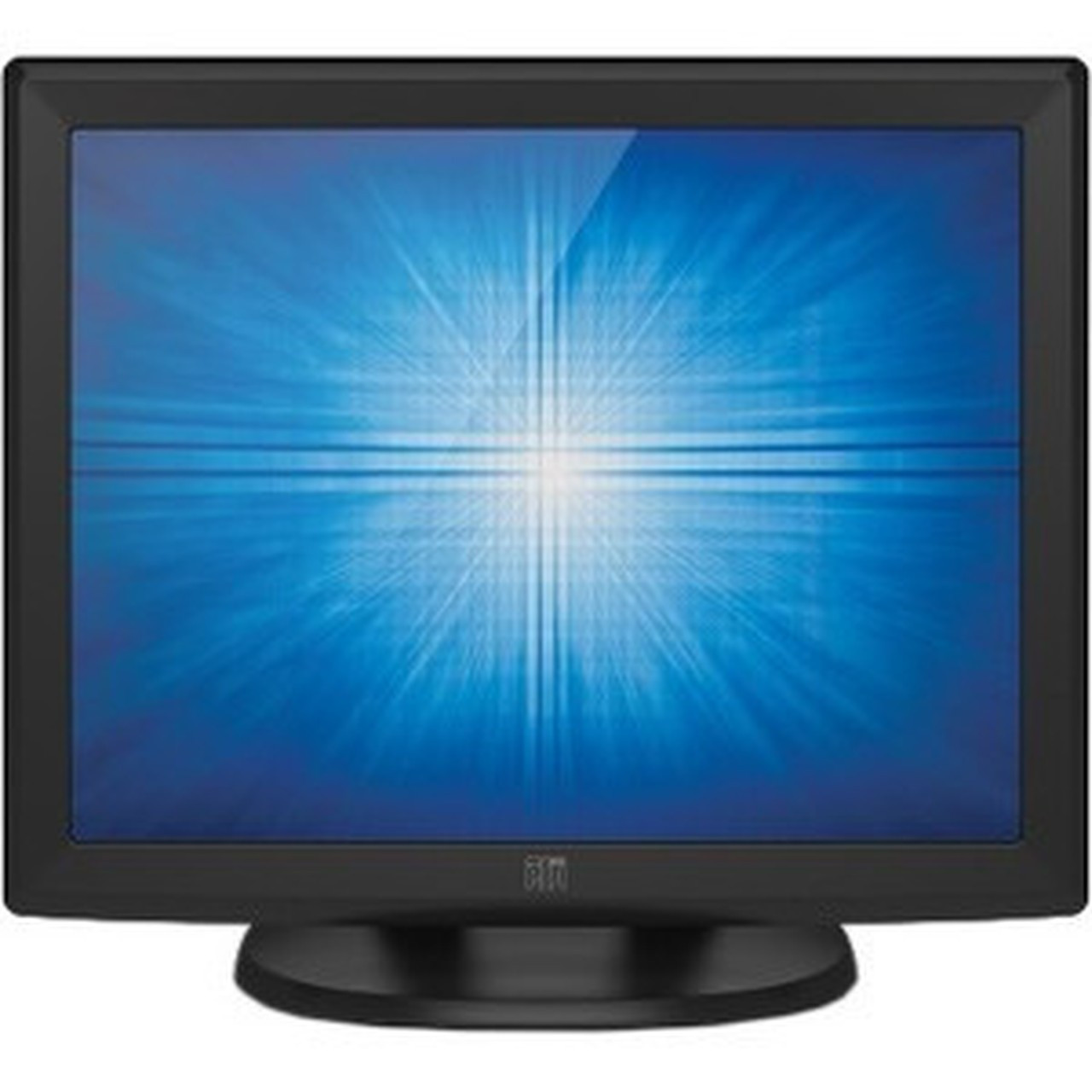

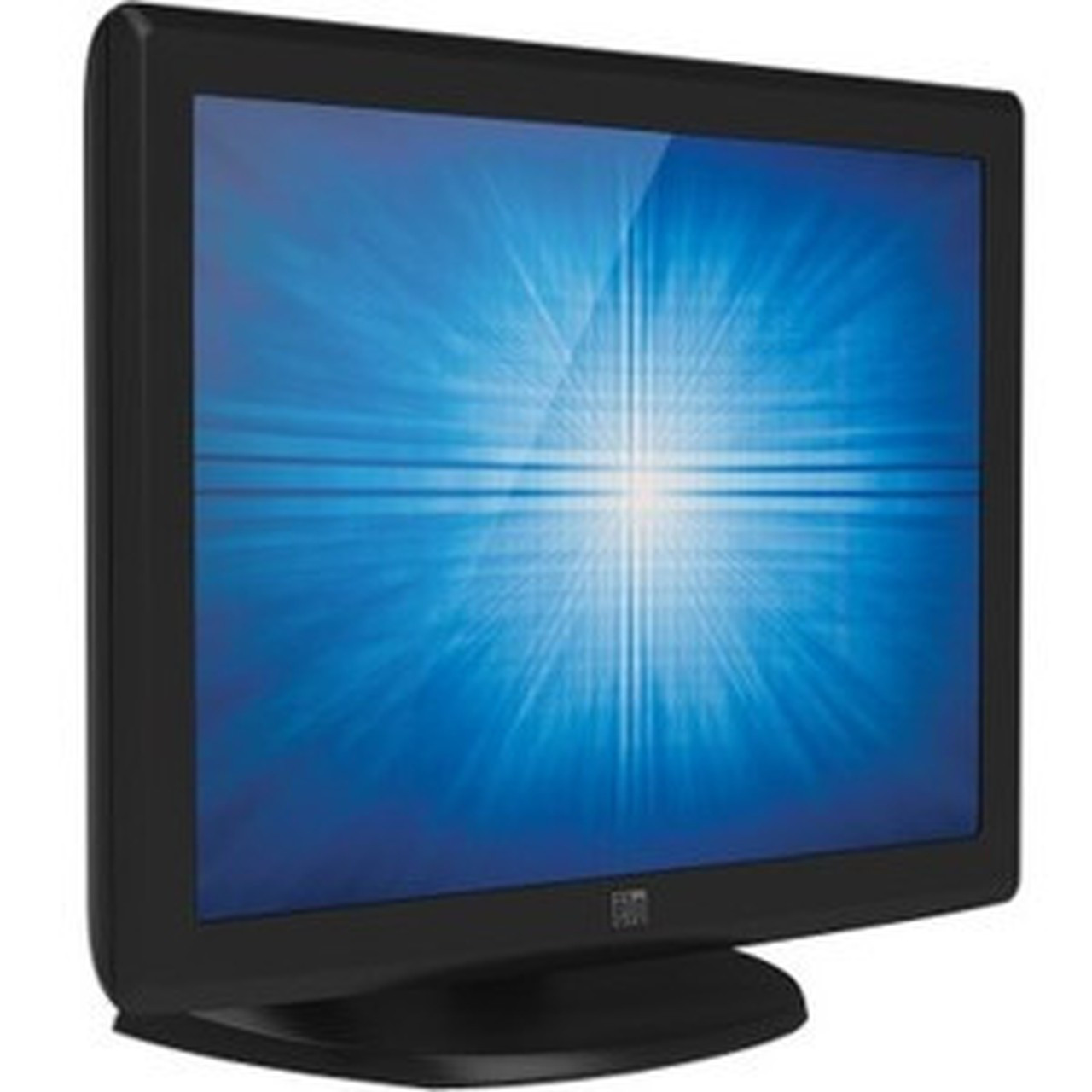

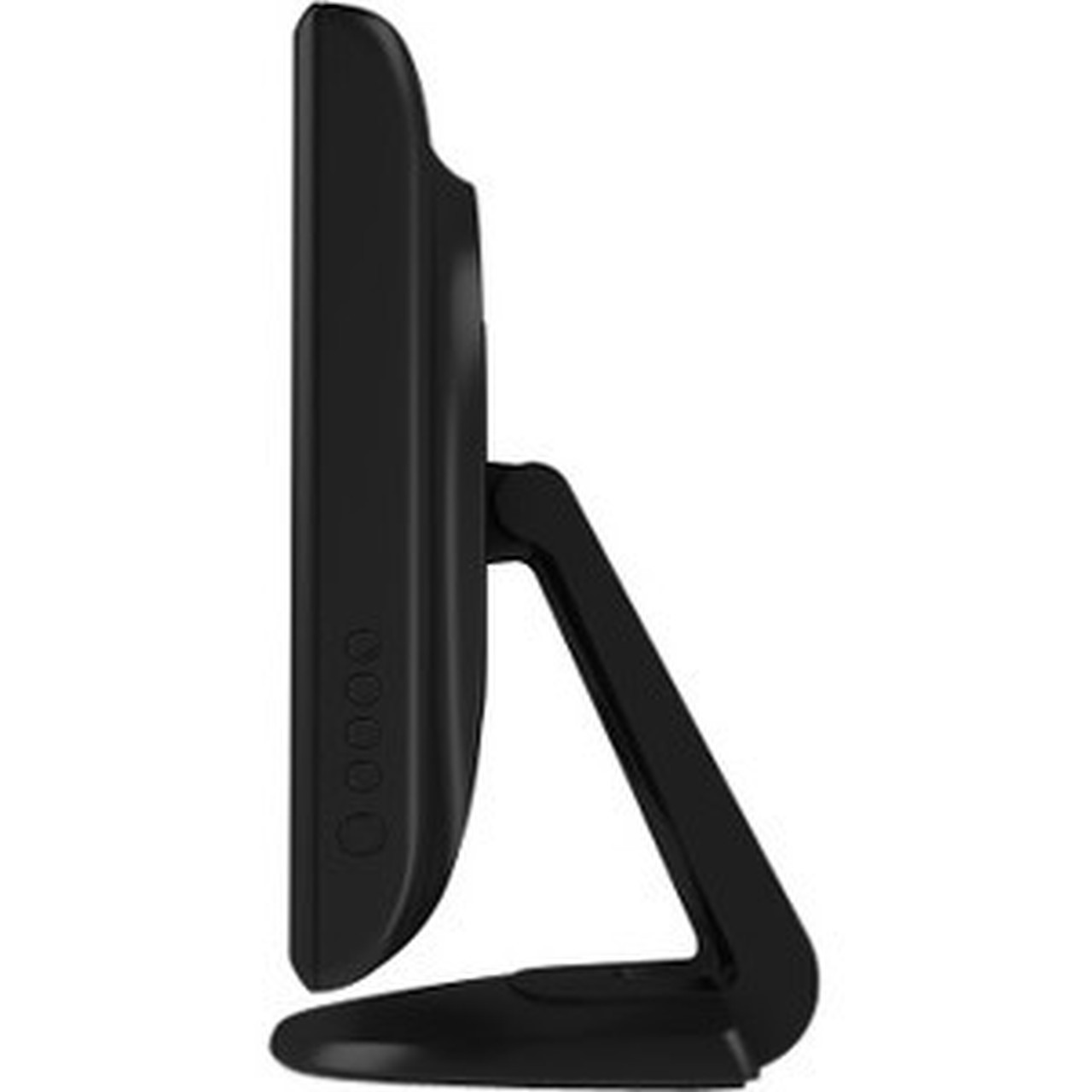

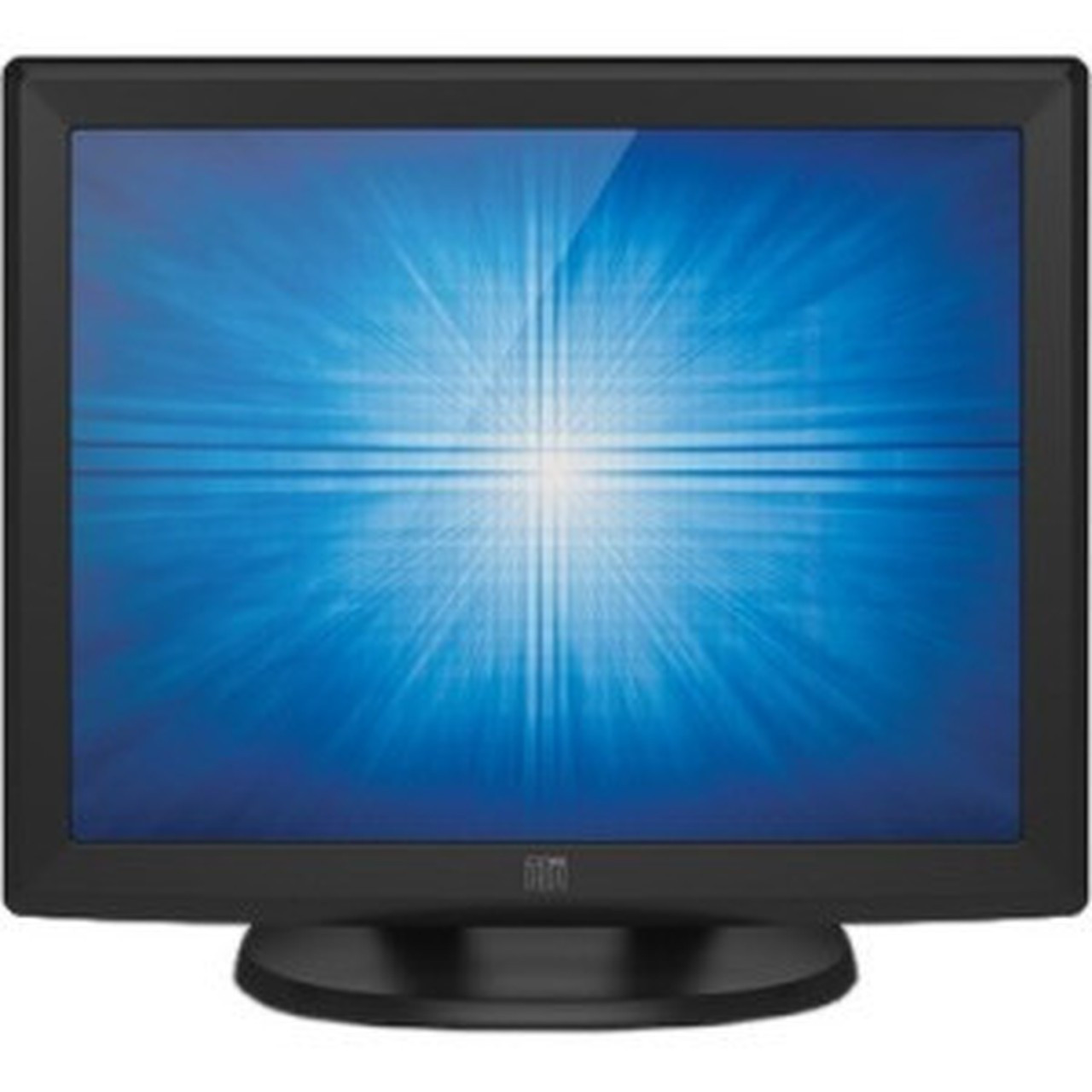

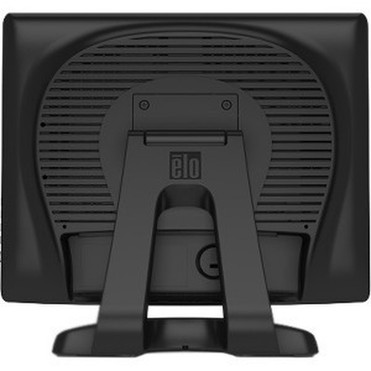

Elo 1515L 15" LCD Touchscreen Monitor - 4:3 - 11.70 ms - AccuTouch - 1024 x 768 - XGA - 16.7 Million Colors - 700:1 - 250 cd/m² - (E210772)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Marketing Information: The Elo Touch Solutions 1515L touchmonitor is designed, developed and built to provide a cost-effective touch solution for system integrators and VARs. It packs Elo quality and reliability into a integrated, affordable touchmonitor with a footprint smaller than a standard 15" display. This cost and space-saving touchmonitor is "designed for touch"- the technology is built into the 1515L from the ground up and not added as an afterthought by altering the original monitor. It includes a stable base, with controls that are placed on the side rather than the front and are locked-out for public use. The 1515L can function as a desktop or wall-mounted unit and includes a VESA mounting option. The optional 3-track magnetic stripe reader (MSR), is easily installed by the user, providing an elegant, integrated solution. The display is factory sealed against dirt and dust, and the unit offers a choice of touchscreen technologies: the anti-glare clarity and superior performance of IntelliTouch surface acoustic wave, time- tested AccuTouch five-wire resistive, and IntelliTouch Pro projected capacitive (PCAP) for a multi-touch experience and zero-bezel, seamless design.
The Elo 1515L 15" LCD desktop touchmonitor provides an affordable product in a convenient, space- saving design that both first-time and experienced users can deploy more easily, reliably, and more cost- effectively than ever before.
Screen Size Class: 15"
Viewable Screen Size: 15"
Screen Mode: XGA
Response Time: 11.70 ms
Aspect Ratio: 4:3
Horizontal Viewing Angle: 140°
Vertical Viewing Angle: 115°
Backlight Technology: LED
Maximum Resolution: 1024 x 768
Color Supported: 16.7 Million Colors
Contrast Ratio: 700:1
Brightness: 250 cd/m²
Touchscreen Type: AccuTouch
USB: Yes
VGA: Yes
Operating Power Consumption: 13 W
Product Color: Dark Gray
VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Height: 12.20" (310 mm)
Width: 13.78" (350 mm)
Depth: 6.89" (175 mm)
Weight (Approximate): 3.31 kg
Weight with Stand (Approximate): 4.81 kg
Environmentally Friendly: Yes
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS)
Limited Warranty: 3 Year
- The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
- The 250 cd/m² brightness gives an exceptionally visible display for clear and consistent on-screen pictures
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
[custom-specifications]
Specifications | |
---|---|
Manufacturer | Elo Touch Solutions, Inc |
Manufacturer Part Number | E210772 |
Manufacturer Website Address | http://www.elotouch.com |
Brand Name | Elo |
Product Series | 1000 |
Product Model | 1515L |
Product Name | 1515L 15" Desktop Touchmonitor |
Product Type | LCD Touchscreen Monitor | Technical Information |
Screen Size Class | 15" |
Viewable Screen Size | 15" |
Screen Mode | XGA |
Response Time | 11.70 ms |
Aspect Ratio | 4:3 |
Horizontal Viewing Angle | 140° |
Vertical Viewing Angle | 115° |
Backlight Technology | LED | Video |
Maximum Resolution | 1024 x 768 |
Color Supported | 16.7 Million Colors |
Contrast Ratio | 700:1 |
Brightness | 250 cd/m² | Touchscreen Information |
Touchscreen Type | AccuTouch | Interfaces/Ports |
USB | Yes |
VGA | Yes | Power Description |
Operating Power Consumption | 13 W | Physical Characteristics |
Product Color | Dark Gray |
VESA Mount Compatible | Yes |
VESA Mount Standard | 75 x 75 |
Height | 12.20" (310 mm) |
Width | 13.78" (350 mm) |
Depth | 6.89" (175 mm) |
Weight (Approximate) | 3.31 kg |
Weight with Stand (Approximate) | 4.81 kg | Miscellaneous |
Environmentally Friendly | Yes |
Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) | Warranty |
Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]

Product | Elo IntelliTouch Stylus Pen |
SKU | D82064-000 |
Sale Price | $31.44 |

Product | Elo Magnetic Stripe Reader - Single Track - USB - Gray |
SKU | E177037 |
Sale Price | $116.85 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
3 Year
