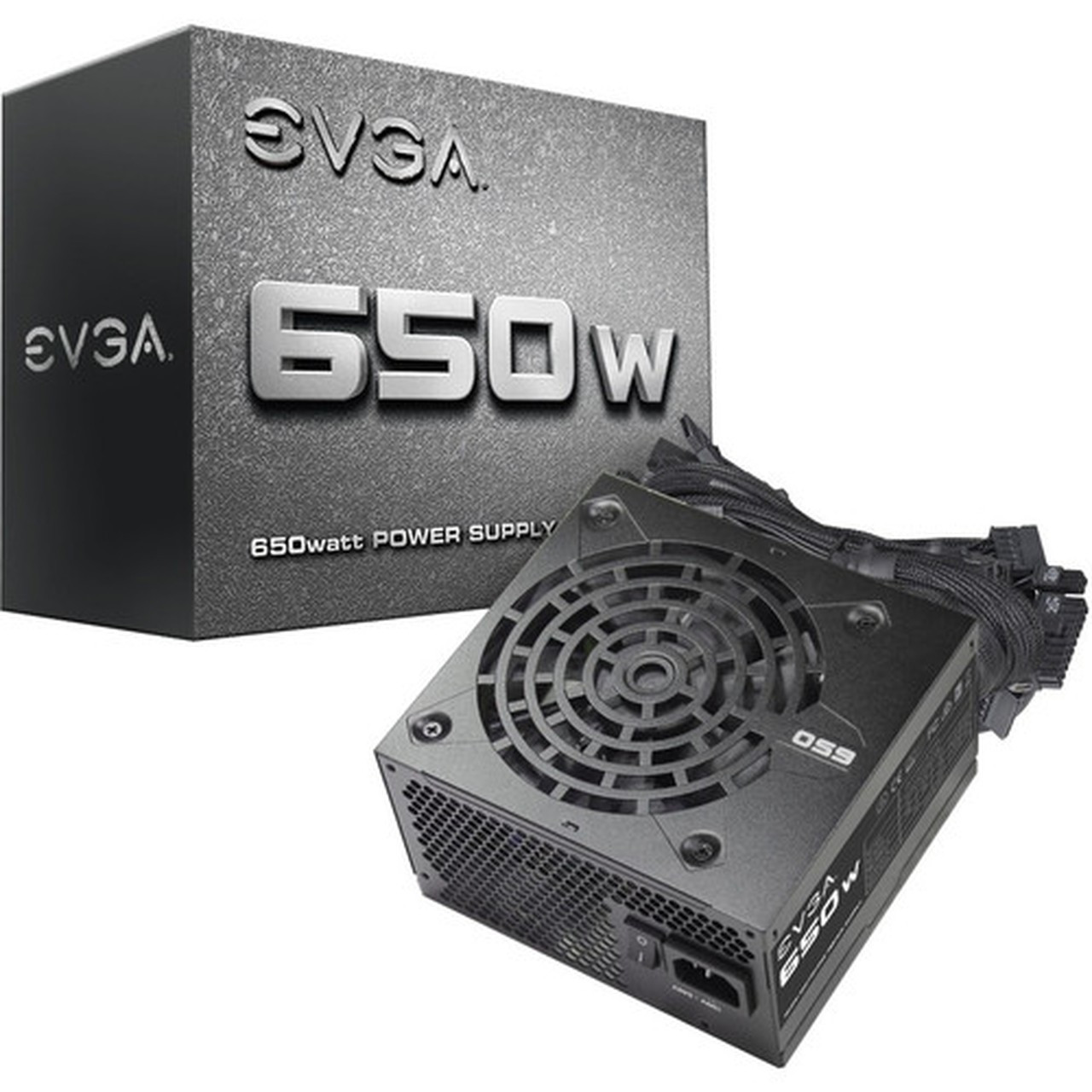

EVGA 650W Power Supply - Internal - 120 V AC, 230 V AC Input - 650 W / 3.3 V DC, 5 V DC, 12 V DC, 5 V DC, -12 V DC - 1 +12V Rails - 1 (100-N1-0650-L1)
Write a Review
EVGA
EVGA 650W Power Supply - Internal - 120 V AC, 230 V AC Input - 650 W / 3.3 V DC, 5 V DC, 12 V DC, 5 V DC, -12 V DC - 1 +12V Rails - 1 (100-N1-0650-L1)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Delivery
UPS, FedEx, Purolator
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Marketing Information: When building on a budget, the EVGA 650W power supply is a great choice at a low cost. Supporting 52A on a single +12V rail provides more options without having to reduce your component requirements. The EVGA 650W offers the connections and protections needed for basic system builds. With a standard 2 year warranty and ultra quiet fan design the EVGA 650W power supply will be a great asset for your next build on a budget.
Specification Compliance: ATX12V/EPS12V
Number of Fans: 1
Modular: No
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V DC,5 V DC,12 V DC,-12 V DC
Output Voltage Detail: 3.3 V DC @ 24 A,5 V DC @ 20 A,12 V DC @ 52 A,5 V DC @ 3 A,-12 V DC @ 300 mA
Output Current: 24 A,20 A,52 A,3 A,300 mA
Output Power: 650 W
Form Factor: Internal
Height: 3.35" (85 mm)
Width: 5.91" (150 mm)
Depth: 5.51" (140 mm)
Weight (Approximate): 1.36 kg
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | EVGA Corporation |
| Manufacturer Part Number | 100N10650L1 |
| Manufacturer Website Address | http://www.evga.com |
| Brand Name | EVGA |
| Product Name | 650W Power Supply |
| Product Type | Power Supply | Technical Information |
| Specification Compliance | ATX12V/EPS12V |
| Number of Fans | 1 |
| Modular | No | Power Description |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC,-12 V DC |
| Output Voltage Detail | 3.3 V DC @ 24 A,5 V DC @ 20 A,12 V DC @ 52 A,5 V DC @ 3 A,-12 V DC @ 300 mA |
| Output Current | 24 A,20 A,52 A,3 A,300 mA |
| Output Power | 650 W | Physical Characteristics |
| Form Factor | Internal |
| Height | 3.35" (85 mm) |
| Width | 5.91" (150 mm) |
| Depth | 5.51" (140 mm) |
| Weight (Approximate) | 1.36 kg | Miscellaneous |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty | 2 Year |
[/custom-specifications]
Warranty Information
2 Year
