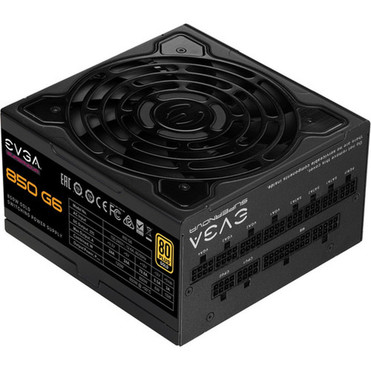

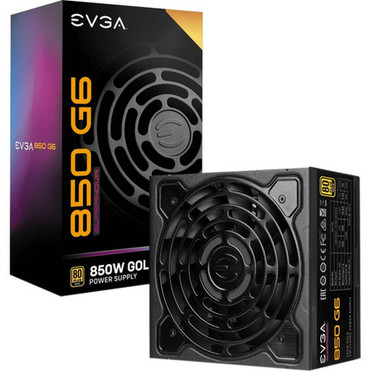

EVGA 850W Gold Switching Power Supply - Internal - 120 V AC, 230 V AC Input - 3.3 V DC @ 24 A, 5 V DC @ 24 A, 12 V DC @ 70.8 A, -12VDC (220-G6-0850-X1)
Write a Review
EVGA
EVGA 850W Gold Switching Power Supply - Internal - 120 V AC, 230 V AC Input - 3.3 V DC @ 24 A, 5 V DC @ 24 A, 12 V DC @ 70.8 A, -12VDC (220-G6-0850-X1)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Marketing Information:
The EVGA SuperNOVA G6 power supplies feature a new platform design, using new materials and better layout placement to achieve greater performance with extremely low ripple and noise in an even smaller chassis. With a full-bridge, LLC Resonant Rectification, and DC-DC design, the SuperNOVA G6 provides rock-solid stability, relentless efficiency, and extremely tight voltage regulation.
Specification Compliance: ATX
Efficiency: 91%
Number of Fans: 1
Modular: Yes
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V DC,5 V DC,12 V DC,-12 V DC
Output Voltage Detail: 3.3 V DC @ 24 A,5 V DC @ 24 A,12 V DC @ 70.8 A,-12 V DC @ 0.5A,5 V DC @ 3 A
Output Current: 24 A,70.80 A,500 mA,3 A
Output Power: 850 W
Form Factor: Internal
Height: 3.39" (86 mm)
Width: 5.91" (150 mm)
Weight (Approximate): 3.18 kg
Country of Origin: Taiwan
Environmentally Friendly: Yes
Energy Efficiency Certification: 80 Plus Gold
Energy Efficiency Compliance: Energy-related Products Directive Lot 3 (ErP Lot 3)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 10 Year
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | EVGA Corporation |
| Manufacturer Part Number | 220G60850X1 |
| Manufacturer Website Address | http://www.evga.com |
| Brand Name | EVGA |
| Product Line | SuperNOVA |
| Product Model | 850 G6 |
| Product Name | 850W Gold Switching Power Supply |
| Product Type | Power Supply | Technical Information |
| Specification Compliance | ATX |
| Efficiency | 91% |
| Number of Fans | 1 |
| Modular | Yes | Power Description |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC,-12 V DC |
| Output Voltage Detail | 3.3 V DC @ 24 A,5 V DC @ 24 A,12 V DC @ 70.8 A,-12 V DC @ 0.5A,5 V DC @ 3 A |
| Output Current | 24 A,70.80 A,500 mA,3 A |
| Output Power | 850 W | Physical Characteristics |
| Form Factor | Internal |
| Height | 3.39" (86 mm) |
| Width | 5.91" (150 mm) |
| Weight (Approximate) | 3.18 kg | Miscellaneous |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Gold |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) | Warranty |
| Limited Warranty | 10 Year |
[/custom-specifications]
Warranty Information
10 Year
