Description
Overview

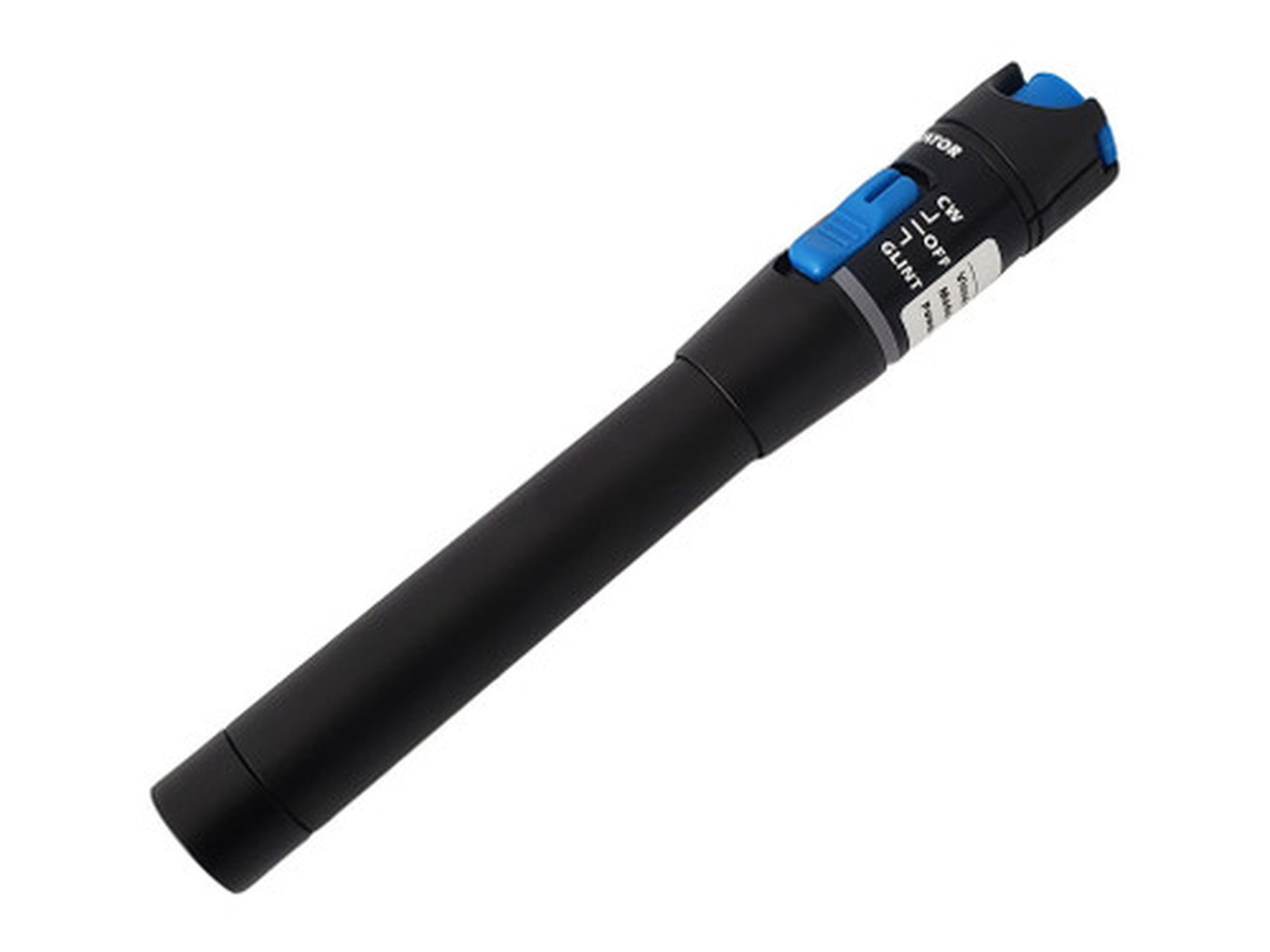

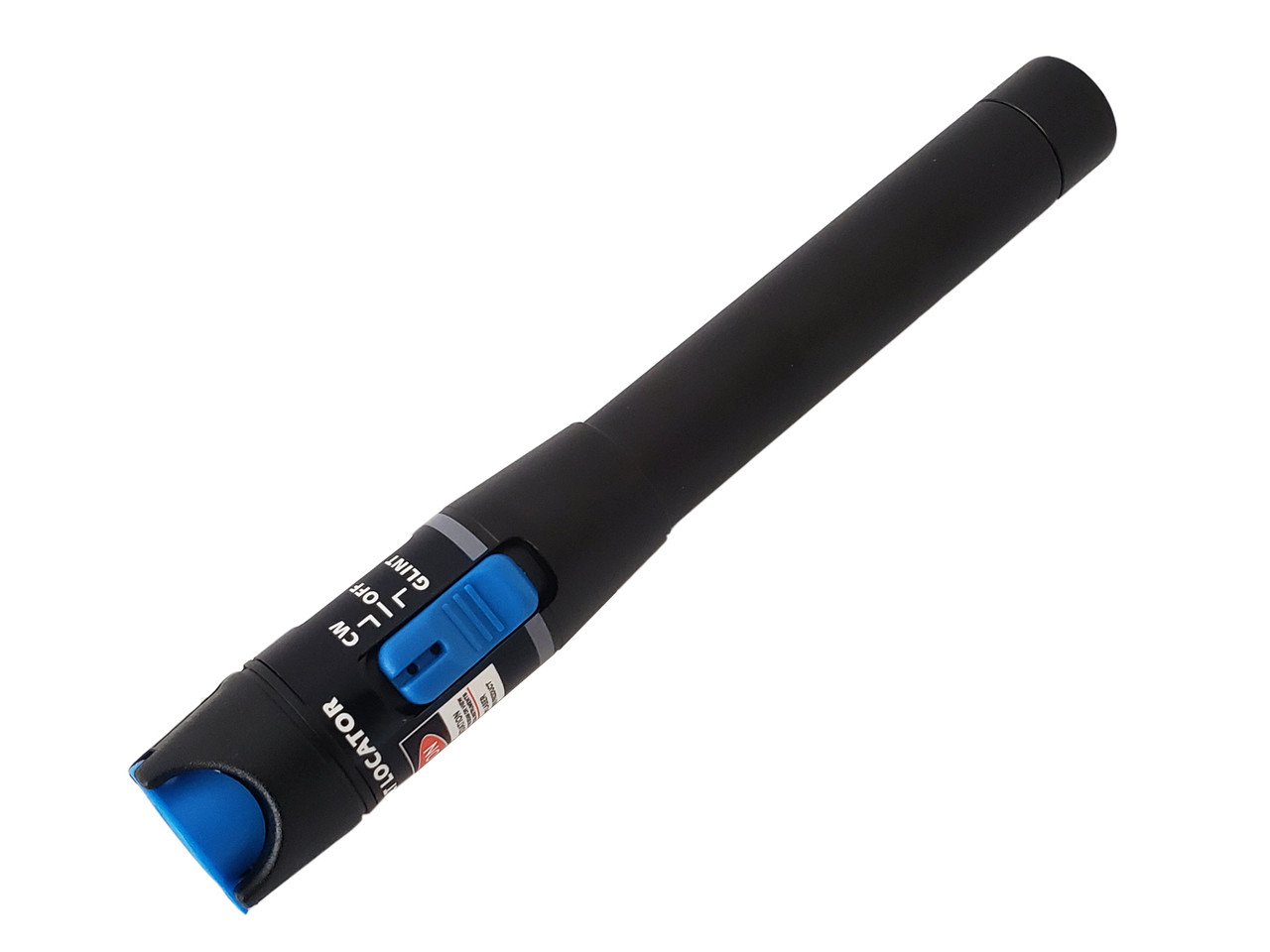

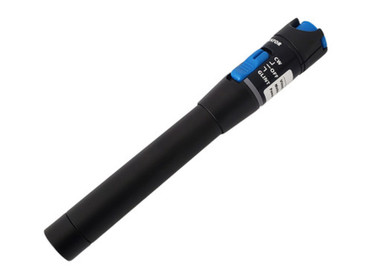

This pen shaped visual fault locator is a tool used on terminated fiber optic cables to locate sharp bends or breaks in jacketed or bare fiber.
Note: Meant for use with polished, terminated fiber cables. Always insert and remove the fiber connector without bending the connector to avoid breaking the ceramic tube.
 |
Protective Cover
The protective dust cap keeps the fiber connection port clear from dust and debris when not in use.
Durable Metal Housing
The VFL is constructed with a metal housing for long lasting durability.
Identify Fiber Breaks Easily
The pen has a bright red laser at 650nm and can quickly illuminate fiber optic cable breaks. It also has continuous (CW) and flashing (Glint) modes.
|
Specifications
|
Physical Characteristics
|
| Material |
Metal Housing |
| Wave Output |
650nm ± 20nm |
| Fiber Connector |
2.5mm Universal Connector |
| Output Power |
1mW |
| Dynamic Distance |
3~5km |
| Operation Mode |
Pulsed (2Hz) and CW |
| Operating Temperature |
0 ~ +60 deg C |
| Storage Temperature |
-20 ~ +70 deg C |
| Battery Style |
LR6 (AA) 1.5V x 2 (Batteries not Included) |
| Battery Life |
>40H (1mW) |
| Size |
175 x 26 x 26mm |
|
Adapter Specifications (sold separately)
|
TLH-2000-A (LC)
|
Max Insertion Loss - 0.5dB
|
|
Packaging Information
|
| Packaging Quantity |
1 |
| Product Weight |
0.37 lbs [0.17 kg]
|
| Items Included |
1 x VFL Pen
1 x Carrying Case
1 x Carrying Strap
(Batteries not Included) |
