Overview

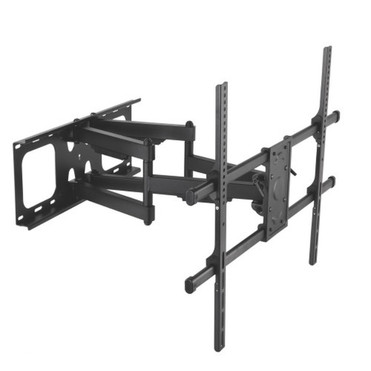

This swivel, tilting pan and extend wall mount bracket is designed to hold most 50 inch to 90 inch flat screen displays with a maximum VESA hole pattern of 600x800. It offers a up to a +5° to -15° tilt and a -60° to +60° swivel. It can be used in both residential and commercial environments.
 | Full Motion Makes any Seat, the Best SeatThis full motion TV mount bracket has swiveling arms and free-tilting design to give you maximum viewing flexibility and multiple viewing angles. It can be pulled out from the wall (635mm extension) and angled towards a separate viewing area, with a quick lock and release system to keep the TV in place with no tools required. Save Space and Keep Everything OrganizedThis TV mount offers a wide VESA spacing to accommodate larger TVs from 50 inch and up to 90 inch flat and curved displays. It can also be used on wood, masonery or concrete construction. |
Specifications
Physical Characteristics |
|---|
| Mounting Style | Tilting & Swivel Wall Mount |
| Color | Black |
| Material | Steel |
| Mounting Pattern | 200x200,300x200,300x300,400x200,400x300,400x400,600x400,800x400,800x600 |
| Screen Size | 50 - 90 inches [127 - 228cm] |
| Weight Capacity | 165 lbs [75kg] |
| Tilt | -15° ~ +10° |
| Swivel | -60° ~ +60° |
| Profile | 2.7 - 25 inches [69 - 635mm]
|
| Level Adjustment | -3° ~ +3° |
Screen Freely Tilting
| No
|
Panel Type
| Detachable Panel
|
Wall Plate Type
| Fixed Wall Plate
|
Cable Management
| Yes
|
Anti-theft
| No
|
Bubble Level
| Hook-on Bubble Level(Included in Components Package)
|
| Installation | Double Stud(406mm/450mm/600mm) or Solid Wall
|
Approvals |
|---|
| RoHS | Yes |
| Reach | Yes |
Packaging Information |
|---|
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws
4 - M6x14 Screws
4 - M6x30 Screws
4 - M8x30 Screws
4 - M8x50 Screws
4 - Rectangular Washers
8 - Small Spacers
8 - Big Spacers
6 - ST6.3x55 Screws
6 - Concrete Anchors
4 - D6 Washers |
| Product Weight | 39.7lbs [18kg] |
