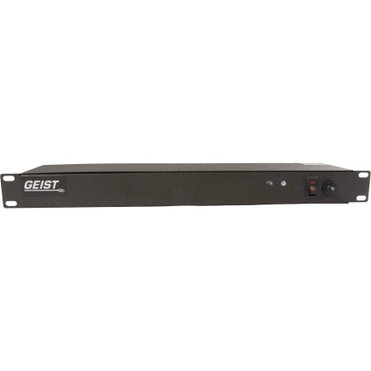

Geist rPDU BR100-10 10-Outlets PDU - Basic - NEMA 5-15P - 10 x NEMA 5-15R - 120 V AC - Horizontal - Rack-mountable (29047VH)
Write a Review
Geist
Geist rPDU BR100-10 10-Outlets PDU - Basic - NEMA 5-15P - 10 x NEMA 5-15R - 120 V AC - Horizontal - Rack-mountable (29047VH)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
PDU Type: Basic
Plug/Connector Type: NEMA 5-15P
Plug/Connector Detail: 1 x NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 10 x NEMA 5-15R
Protection Type: Overcurrent Protection,Thermal Protection
Input Voltage: 120 V AC
Input Voltage Range: 100 V AC - 120 V AC
Output Voltage: 120 V AC
Power Rating (Watt): 1.40 kW
Input Current: 15 A
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Height: 1.72" (43.69 mm)
Width: 17" (431.80 mm)
Depth: 3.75" (95.25 mm)
Country of Origin: United States
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
- PDU allows power to be more efficiently distributed and controlled
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
[custom-specifications]
| Specifications | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | 29047VH |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Geist |
| Product Series | rPDU |
| Product Model | BR100-10 |
| Product Name | rPDU BR100-10 10-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA 5-15P |
| Plug/Connector Detail | 1 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Protection Type | Overcurrent Protection,Thermal Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (Watt) | 1.40 kW |
| Input Current | 15 A |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Height | 1.72" (43.69 mm) |
| Width | 17" (431.80 mm) |
| Depth | 3.75" (95.25 mm) |
| Miscellaneous | |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
5 Year
