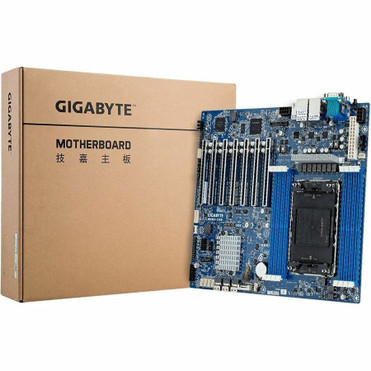

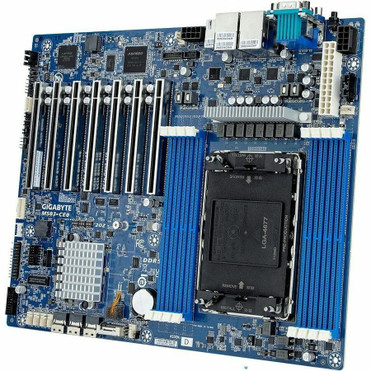

Gigabyte MS03-CE0 Server Motherboard - Intel C741 Chipset - Socket LGA-4677 - ATX - Xeon, Xeon Platinum, Xeon Gold, Xeon Silver - 96 - (MS03-CE0)

Marketing Information:

Accelerating Artificial Intelligence and Leading Efficiency

Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th Gen Intel Xeon Scalable processor. Adding a host of new features to target a wide range of workloads, the new family of Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel Xeon CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads. For this new platform, GIGABYTE has products ready to get the most out of Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

Acceleratorsbuilt-in

Increase ROI while improving efficiency and performance

Up to60performance cores

More tasks can be done simultaneously and faster with dedicated cores

PCIe 5.0lanes

Increased IO throughput achieving 128GB/s bandwidth in PCIe x16 lanes

HBM memory

Xeon Max CPUs for HPC and memory bound workloads

DDR5 memory

Increased memory throughput and higher DDR5 capacity per DIMM

CXL 1.1 support

Disaggregated compute architecture possible via Compute Express Link

Select GIGABYTE for the 4th Gen Intel Xeon Scalable Platform

High CPU Performance

The best in computational performance relies on a system well designed by our engineers to adequately dissipate heat to achieve peak performance.

Energy Efficiency

Our engineers have baked in features to achieve higher efficiency from power supplies and server fans. Along with Titanium and Platinum offerings.

Optimal Price

GIGABYTE releases multiple product models and configurations to target exactly what users want without paying for extra features that go unused.

Ease of Administration

GIGABYTE servers come with GIGABYTE Management Console for server management. Using a web based browser remotely is key to easing management.

Continuous Operation

Systems are rigorously designed and tested to ensure downtime will not occur. Customers have come to expect stable performance.

Hardware SecurityOptional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

Chipset Manufacturer: Intel

Chipset Model: C741

Total Processor Supported: 1

Processor Socket: Socket LGA-4677

Processor Generation Supported: 4th Gen

Processor Supported: Xeon,Xeon Platinum,Xeon Gold,Xeon Silver

Number of Memory Slots: 8

Memory Form Factor: DIMM,RDIMM

Maximum Memory Supported: 96 GB

Memory Speed Supported: 4800 MHz

Memory Technology: DDR5 SDRAM

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,10,5

Onboard Video: On-board Video Chipset

Gigabit Ethernet: Yes

Total Number of Expansion Slots: 7

Total Number of PCI Express Slots: 7

Number of PCI Express x16 Slots: 7

PCI Express Standard: PCI Express 5.0

Total Number of USB Ports: 4

Number of USB 3.2 Gen 1 Ports: 4

VGA: Yes

Number of Network (RJ-45) Ports: 2

Number of SATA Interfaces: 12

Number of M.2 Interfaces: 1

Total Number of Onboard USB Ports: 2

Form Factor: ATX

Width: 12" (304.80 mm)

Depth: 9.61" (244 mm)

Package Contents:

Environmentally Friendly: Yes

Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
