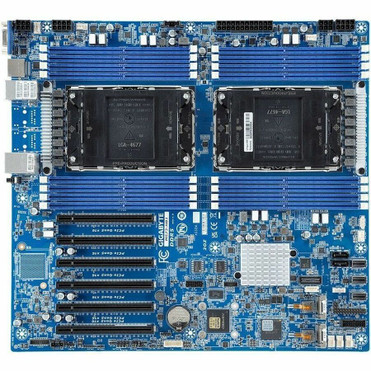

Gigabyte MS73-HB1 Server Motherboard - Intel C741 Chipset - Socket LGA-4677 - Extended ATX - Xeon Processor Supported - 256 GB DDR5 - (MS73-HB1)

Marketing Information:

Accelerating Artificial Intelligence and Leading Efficiency

Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

Redefine Performance with 4th/5th Gen Intel Xeon Scalable Processors

Accelerators built-in

Increase ROI while improving efficiency and performance

Up to64 cores

More tasks can be done simultaneously and faster with dedicated cores

DDR5 support

Increased memory frequency and throughput with DDR5 RDIMM support

PCIe 5.0 lanes

Increased I/O throughput achieving 128GB/s bandwidth with support for the latest drives and accelerators

CXL 1.1 support

Improve performance via memory coherency and direct accelerator memory access

Secure data

Intel TDX offers increased confidentiality at the virtual machine level, enhancing privacy and control over your data.

Select GIGABYTE for the latest Gen Intel Xeon Platform | High CPU Performance

The best in computational performance relies on a system well designed by our engineers to adequately dissipate heat to achieve peak performance.

Energy Efficiency

Our engineers have baked in features to achieve higher efficiency from power supplies and server fans. Along with Titanium and Platinum offerings.

Optimal Price

GIGABYTE releases multiple product models and configurations to target exactly what users want without paying for extra features that go unused.

Ease of Administration

GIGABYTE servers come with GIGABYTE Management Console for server management. Using a web based browser remotely is key to easing management.

Continuous Operation

Systems are rigorously designed and tested to ensure downtime will not occur. Customers have come to expect stable performance.

Hardware Security Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Value-added Management

GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

GIGABYTE Management Console

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

AI-powered: Yes

Chipset Manufacturer: Intel

Chipset Model: C741

Total Processor Supported: 1

Processor Socket: Socket LGA-4677

Processor Generation Supported: 4th Gen,5th Gen

Processor Supported: Xeon

Number of Memory Slots: 16

Memory Form Factor: DIMM,RDIMM

Maximum Memory Supported: 256 GB

Memory Speed Supported: 5600 MHz,4800 MHz

Memory Technology: DDR5 SDRAM

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,10,5

Onboard Video: CPU Dependent Video

Graphics Controller Model: Aspeed AST2600

Gigabit Ethernet: Yes

Total Number of Expansion Slots: 6

Total Number of PCI Express Slots: 6

Number of PCI Express x16 Slots: 6

PCI Express Standard: PCI Express 5.0

Total Number of USB Ports: 2

Number of USB 3.2 Gen 1 Ports: 2

VGA: Yes

Number of Network (RJ-45) Ports: 3

Number of SATA Interfaces: 2

Number of M.2 Interfaces: 2

Total Number of Onboard USB Ports: 2

Form Factor: Extended ATX

Width: 12" (304.80 mm)

Depth: 13" (330.20 mm)

Package Contents:

• MS73-HB1 Server Motherboard
• 1 x I/O shield
• 1 x Quick start guide
• 6 x Carrier clips
• 1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)

Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
