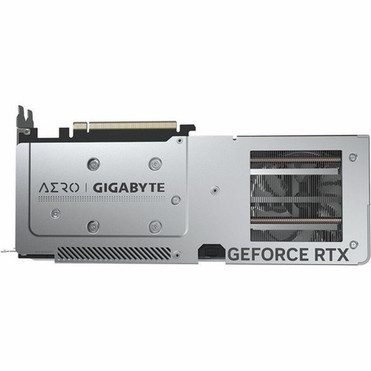

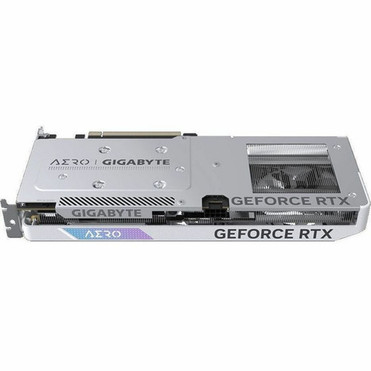

Gigabyte NVIDIA GeForce RTX 4060 Graphic Card - 8 GB GDDR6 - 7680 x 4320 - 2.55 GHz Core - 128 bit Bus Width - PCI Express 4.0 - - 2 x (GV-N4060AERO OC-8GD)

Marketing Information:

CORE CLOCK

2550 MHz (Reference card: 2460 MHz)

The Ultimate Platform for Gamers and Creators Powered by GeForce RTX 40 Series and DLSS 3

New Streaming Multiprocessors

Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores

Up to 4x performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores

Up to 2x ray tracing performance

Cutting-Edge GPUs

NVIDIA Ada Lovelace architecture

Realistic and Immersive Graphics

Dedicated Ray Tracing Cores

AI-Accelerated Performance

NVIDIA DLSS 3

Game-Winning Responsiveness

NVIDIA Reflex low-latency platform

Built for Live Streaming

NVIDIA Encoder

AI-Enhanced Voice and Video

RTX Video Super Resolution and NVIDIA Broadcast

Fast-Track Your Creativity

NVIDIA Studio

Performance and Reliability

Game Ready and Studio Drivers

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, composite copper heat pipes that directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

OPTIMIZED THERMAL MODULE

The pure copper heat pipe makes direct contact with the GPU to facilitate enhanced heat transfer to the heatsink, optimizing the cooling efficiency of the graphics card.

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

EXCELLENT IN ESSENTIAL | PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS

The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

POWER INDICATOR

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

BUILT STRONG | ULTRA DURABLE ULTRA COOLING

Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

API Supported: DirectX 12 Ultimate,OpenGL 4.6

Number of Monitors Supported: 4

Maximum Digital Display Resolution: 7680 x 4320

CUDA Cores: 3072

Chipset Manufacturer: NVIDIA

Chipset Line: GeForce

Chipset Series: RTX

Chipset Model: RTX 4060

GPU Clock: 2.55 GHz

Standard Memory: 8 GB

Memory Technology: GDDR6

Bus Width: 128 bit

Host Interface: PCI Express 4.0

DisplayPort: Yes

Number of DisplayPort Outputs: 2

HDMI: Yes

Number of HDMI Outputs: 2

Power Supply Wattage: 450 W

Power Connector: 1x 8-pin

Form Factor: Plug-in Card

Cooler Type: Active Cooler

Height: 1.50" (38 mm)

Width: 4.49" (114 mm)

Length: 11.06" (281 mm)

Platform Supported: PC
