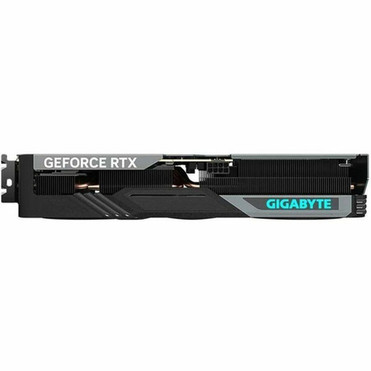

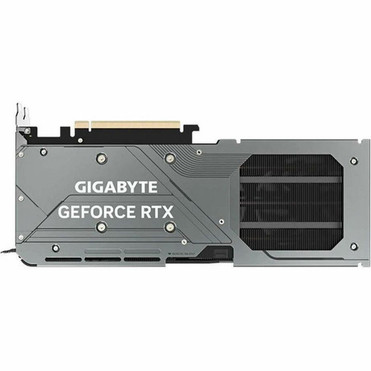

Gigabyte NVIDIA GeForce RTX 4060 Ti Graphic Card - 8 GB GDDR6 - 7680 x 4320 - 2.58 GHz Core - 128 bit Bus Width - PCI Express 4.0 - - (GV-N406TGAMING OC-8GD)

Marketing Information:

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

BUILT STRONG | ULTRA DURABLE

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

API Supported: DirectX 12 Ultimate,OpenGL 4.6

Number of Monitors Supported: 4

Maximum Digital Display Resolution: 7680 x 4320

CUDA Cores: 4352

Chipset Manufacturer: NVIDIA

Chipset Line: GeForce

Chipset Series: RTX

Chipset Model: RTX 4060 Ti

GPU Clock: 2.58 GHz

Standard Memory: 8 GB

Memory Technology: GDDR6

Bus Width: 128 bit

Host Interface: PCI Express 4.0

DisplayPort: Yes

Number of DisplayPort Outputs: 2

HDMI: Yes

Number of HDMI Outputs: 2

Power Supply Wattage: 500 W

Power Connector: 1x 8-pin

Form Factor: Plug-in Card

Cooler Type: Fan Cooler

Height: 2.09" (53 mm)

Width: 4.61" (117 mm)

Length: 11.06" (281 mm)

Package Contents:

• GeForce RTX­­ 4060 Ti GAMING OC 8G Graphic Card
• Quick guide

Platform Supported: PC
