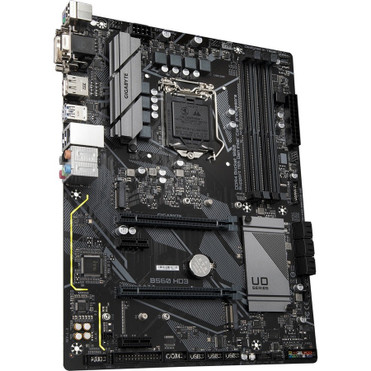

Gigabyte Ultra Durable B560 HD3 Desktop Motherboard - Intel B560 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Pentium (B560 HD3)
Write a Review
Gigabyte
Gigabyte Ultra Durable B560 HD3 Desktop Motherboard - Intel B560 Chipset - Socket LGA-1200 - Intel Optane Memory Ready - ATX - Pentium (B560 HD3)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Supports 11th and 10th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
- Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Digital PWM Controller to deliver appropriate voltage to the CPU.
- Direct 6+2 Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.
- All-solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.
-
High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection -
Precision Control
Up to 7 temperature/fan speed control points for precise fan curve -
Dual Curve Mode
Slope/Stair dual mode for different user scenario -
Fan Stop
Fan can stop completely below users' specified temperature point - Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
Marketing Information:
Intel® B560 Ultra Durable Motherboard with Direct 6+2 Phases Digital VRM, Full PCIe 4.0 Design, PCIe 4.0 M.2, GIGABYTE 8118 Gaming LAN, RGB FUSION 2.0, Q-Flash Plus
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
Dual PCIe 4.0/3.0 x4 M.2 Connectors
GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems' potential.
RGB FUSION 2.0
With B560 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
With B560 Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
Solid Pin Power Connectors
B560 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
Chipset Manufacturer: Intel
Chipset Model: B560
Total Processor Supported: 1
Processor Socket: Socket LGA-1200
Processor Supported: Pentium Gold,Celeron,Core i5,Core i7,Core i9,Core i3
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory Supported: 128 GB
Memory Speed Supported: 5333 MHz,5133 MHz,5000 MHz,4933 MHz,4800 MHz,4700 MHz,4600 MHz,4500 MHz,4400 MHz,4300 MHz,4266 MHz,4133 MHz,4000 MHz,3866 MHz,3800 MHz,3733 MHz,3666 MHz,3600 MHz,3466 MHz,3400 MHz,3333 MHz,3300 MHz,3200 MHz,3000 MHz,2933 MHz,2800 MHz,2666 MHz,2400 MHz,2133 MHz
Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Total Number of Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 4
VGA: Yes
HDMI: Yes
DisplayPort: Yes
DVI: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 8
Number of Onboard USB 2.0 Ports: 6
Number of Onboard USB 3.2 Ports: 2
Form Factor: ATX
Width: 12.01" (305 mm)
Depth: 8.86" (225 mm)
- Compatible Pentium Gold processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
- With 2 USB 2.0 ports, transfer several documents without error
[custom-specifications]
| Specifications | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | B560 HD3 |
| Manufacturer Website Address | http://www.gigabyte.com |
| Brand Name | Gigabyte |
| Product Line | Ultra Durable |
| Product Model | B560 HD3 |
| Product Name | Ultra Durable B560 HD3 (rev. 1.0) Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B560 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Processor Supported | Pentium Gold,Celeron,Core i5,Core i7,Core i9,Core i3 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM,UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 5333 MHz,5133 MHz,5000 MHz,4933 MHz,4800 MHz,4700 MHz,4600 MHz,4500 MHz,4400 MHz,4300 MHz,4266 MHz,4133 MHz,4000 MHz,3866 MHz,3800 MHz,3733 MHz,3666 MHz,3600 MHz,3466 MHz,3400 MHz,3333 MHz,3300 MHz,3200 MHz,3000 MHz,2933 MHz,2800 MHz,2666 MHz,2400 MHz,2133 MHz |
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| VGA | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 8 |
| Number of Onboard USB 2.0 Ports | 6 |
| Number of Onboard USB 3.2 Ports | 2 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12.01" (305 mm) |
| Depth | 8.86" (225 mm) |
[/custom-specifications]
