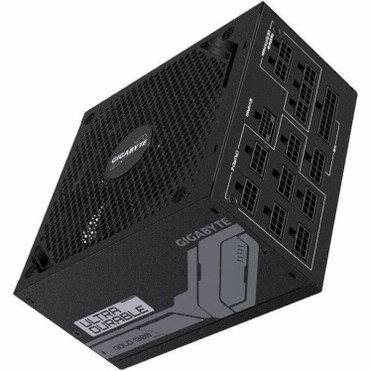

Gigabyte Ultra Durable GP-UD1300GM PG5 1300W Power Supply - ATX, Internal - 120 V AC, 230 V AC Input - 3.3 V DC, 5 V DC, 12 V DC, -12 (GP-UD1300GM PG5)
Write a Review
Gigabyte
Gigabyte Ultra Durable GP-UD1300GM PG5 1300W Power Supply - ATX, Internal - 120 V AC, 230 V AC Input - 3.3 V DC, 5 V DC, 12 V DC, -12 (GP-UD1300GM PG5)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Delivery
UPS, FedEx, Purolator
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Specification Compliance: ATX 3.0,ATX12V v3.0,EPS12V
Efficiency: 90%
Power Factor Correction (PFC): Active
Number of Fans: 1
Fan Bearing Type: Dual Ball Fan Bearing
Fan Diameter: 140 mm (5.51")
Protection Type: Over Voltage,Over Power,Short Circuit,Under Voltage,Over Current,Over Temperature
Modular: Yes
Cooling Type: Active
Features: Compact
MTBF: 100000 Hour
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB
Output Voltage Detail: 3.3 V DC @ 25 A,5 V DC @ 25 A,12 V DC @ 108.3 A,-12 V DC @ 0.3 A,5 V SB @ 3.5 A
Number of SATA Power Connectors: 12
PCI Express Connector: Yes
Number of (6+2 pin) PCI Express Power Connectors: 8
Number of (4+4 pin) CPU Power Connectors: 2
Form Factor: ATX,Internal
Height: 5.91" (150 mm)
Width: 6.30" (160 mm)
Depth: 3.39" (86 mm)
[custom-specifications]
| Specifications | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | GP-UD1300GM PG5 |
| Manufacturer Website Address | http://www.gigabyte.com |
| Brand Name | GIGABYTE |
| Product Line | Ultra Durable |
| Product Model | GP-UD1300GM PG5 |
| Product Name | Ultra Durable GP-UD1300GM PG5 1300W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX 3.0,ATX12V v3.0,EPS12V |
| Efficiency | 90% |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Fan Bearing |
| Fan Diameter | 140 mm (5.51") |
| Protection Type | Over Voltage,Over Power,Short Circuit,Under Voltage,Over Current,Over Temperature |
| Modular | Yes |
| Cooling Type | Active |
| Features | Compact |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 3.3 V DC,5 V DC,12 V DC,-12 V DC,5 V SB |
| Output Voltage Detail | 3.3 V DC @ 25 A,5 V DC @ 25 A,12 V DC @ 108.3 A,-12 V DC @ 0.3 A,5 V SB @ 3.5 A |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 12 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 8 |
| Number of (4+4 pin) CPU Power Connectors | 2 |
| Physical Characteristics | |
| Form Factor | ATX,Internal |
| Height | 5.91" (150 mm) |
| Width | 6.30" (160 mm) |
| Depth | 3.39" (86 mm) |
[/custom-specifications]
