Marketing Information: 13.56 MHZ CONTACTLESS SMART CARD READERS WITH KEY PAD PLUG-N-PLAY WITH NEW AND EXISTING ACCESS CONTROL SYSTEMS
- Dual-Factor Authentication - Add secure PINs to the already highly secured iCLASS® card and reader authentication
- Flexible Configuration - Choose from a variety of PIN pad outputs that allow for compatibility with almost any panel
- Backlit - Use lighted numbers to assist users during operation in poorly lit areas
Using 13.56 MHz contactless smart card technology, the iCLASS® RK40 and RWK400 provide a powerful solution. Combine a contactless card presentation with a personal identification number (PIN) to support dual authentication of identity. Or, configure the panel for single-factor authentication, using only a card or a PIN.
The PIN can be verified either at the access control panel or locally by the keypad reader. When verified locally, the PIN must be programmed into the iCLASS card using the iCLASS Card Programmer (CP400).
The RWK400 offers the same features as the RK40, with the extended ability to read/write user data to HID iCLASS credentials. Read/write applications include the storage/retrieval of data such as biometric templates, health records, time and attendance, and digital cash. The possibilities are endless!
Featuring crisp architectural styling, the keypad reader and reader/writer have an elegantly curved faceplate. The 12-position weatherproof keypad uses discrete switches to provide positive tactile response, optionally reinforced by an audible tone. The keypad also features a waterproof silicone rubber boot, vandal-resistant metal keycaps, and backlit numbering.
The readers are equipped with a Wiegand output that easily interfaces with most existing access control panels. The RWK400 is equipped with bidirectional communications of RS232, RS485 (fullduplex), UART or USB to enable host controlled reader behavior. In addition, uni-directional communication of RS232, RS485 (full-duplex) or UART is enabled when the reader is running its own internal applications. In addition the RK40 can be configured to output data over Clock-andData hardware interface.
The iCLASS RK40 and RWK400 are compatible with all iCLASS credentials. The units can read or read/write to credentials compatible with several ISO standards (See back page for more details).Connectivity Technology: CableMedia Supported: ContactlessMaximum Operating Range: 4" (101.60 mm)Height: 3.30" (83.82 mm)Width: 4.80" (121.92 mm)Depth: 1.10" (27.94 mm)Environmentally Friendly: YesLimited Warranty: Lifetime
[custom-specifications]
Specifications
Manufacturer: HID Global Corporation
Manufacturer Part Number: 921NTCTEK0028B
Manufacturer Website Address: http://www.hidglobal.com
Brand Name: HID
Product Line: iCLASS
Product Model: RK40

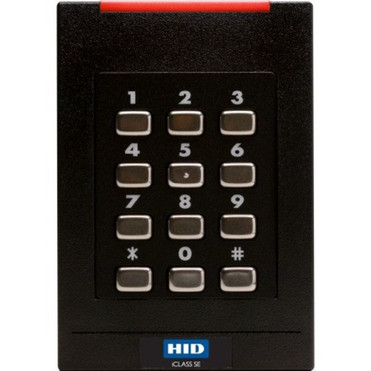

Product Name: iCLASS RK40 Smart Card Reader
Product Type: Smart Card Reader
Technical Information
Connectivity Technology: Cable
Media Supported: Contactless
Maximum Operating Range: 4" (101.60 mm)
Physical Characteristics
Height: 3.30" (83.82 mm)
Width: 4.80" (121.92 mm)
Depth: 1.10" (27.94 mm)
Miscellaneous
Environmentally Friendly: Yes
Warranty
Limited Warranty: Lifetime
[/custom-specifications]
