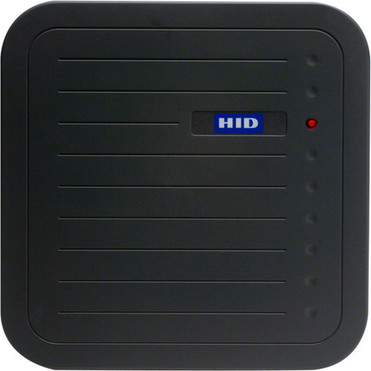

HID MaxiProx 5375 - Proximity - 6" (152.40 mm) Operating Range - 24 V DC (5375AGN00-110315)

Marketing Information:

HID's MaxiProx® Reader is ideal for installations incorporating parking control and long read range applications. The MaxiProx reader packages all the electronics in one rugged, attractive and easy-to-install housing.

• Long read range distance (up to 6' with ProxPass).
• Autotune allows read range to be maintained within four inches of metal.
• Wiegand, Clock-and-Data, RS-232, RS-422, and RS-485 output modes are configurable.
• "Parking hold" feature ensures accurate detection of vehicles in parking lanes.
• Power requirements: 12 or 24 VDC (configurable) .
• Current requirements: 200mA avg / 700 mA peak at 12VDC; 260mA avg / 1.2A peak at 24 VDC.
• Dimensions: 12.0" x 12.0" x 1.0" (30.5 x 30.5 x 2.54 cm).

Identification Method: Proximity

Operating Range: 6" (152.40 mm)

Input Voltage: 24 V DC

Product Color: Gray

Height: 12" (304.80 mm)

Width: 12" (304.80 mm)

Depth: 1" (25.40 mm)

Weight (Approximate): 1.45 kg

Compatibility: ProxCard II Card - up to 24" (60.9 cm)
ISOProx II Card - up to 20" (50.8 cm)
DuoProx II Card - up to 20" (50.8 cm)
Smart ISOProx II - up to 20" (50.8 cm)
Smart DuoProx II Card - up to 20" (50.8 cm)
HID Proximity MIFARE Card - up to 20" (50.8 cm)
ProxCard®Plus Card - up to 13" (33 cm)
ProxKey II Keyfob - up to 17" (43.2 cm)
Microprox Tag - up to 15" (38 cm)
ProxPass Active Vehicle Tag - up to 6' (1.8 m)

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Limited Warranty: Lifetime
