- For remote surveillance needs, this network camera is best suited
- Up to 2688 x 1520 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- Up to 98.43 ft (30 m) of night vision
Marketing Information: Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.HD Recording: YesNight Vision: YesNight Vision Distance: 98.43 ft (30 m)Night Vision Type: InfraredImage Sensor Type: CMOSColor Supported: ColorField of View: horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°Effective Camera Resolution: 4 MegapixelVideo Formats: - H.265+
- H.265
- H.264+
- H.264
- MJPEG
Maximum Video Resolution: 2688 x 1520Maximum Frame Rate: 30 fpsLens Type: FixedMaximum Focal Length: 2.8 mmLens Included: YesLens Mount Type: M12-mountMaximum Aperture: f/1.6Shortest Shutter Speed: 1/100000 SecondLongest Shutter Speed: 1/30 SecondConnectivity Technology: WiredRemote Management: YesStorage Type: Memory CardNetwork (RJ-45): YesMount Type: - Corner Mount
- Pendant Mount
- Pole Mount
- Junction Box Mount
- Wall Mount
Form Factor: Mini DomeDurability: - Water Resistant
- Dust Resistant
- Vandal Resistant
Diameter: 4.33" (110 mm)Weight (Approximate): 380 gMinimum Operating Temperature: -22°F (-30°C)Maximum Operating Temperature: 140°F (60°C)Operating Humidity: 95%Features: - Built-in Microphone
- Audio Compression
- Password Protection
- HTTPS Encryption
- Day/Night
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- 3D Digital Noise Reduction
- Wide Dynamic Range
- Motion Detection
- Tampering Alarm
- Cross Line Detection
- Face Detection
- White Balance
- Privacy Masking
- SD Card Local Storage
Impact Protection Rating: Ingress Protection Rating: IP67
[custom-specifications]
SpecificationsManufacturer: Hikvision
Manufacturer Part Number: DS-2CD2543G2-IS 2.8MM
Manufacturer Website Address: http://www.hikvision.com
Brand Name: Hikvision
Product Line: AcuSense
Product Series: Pro
Product Model: DS-2CD2543G2-IS

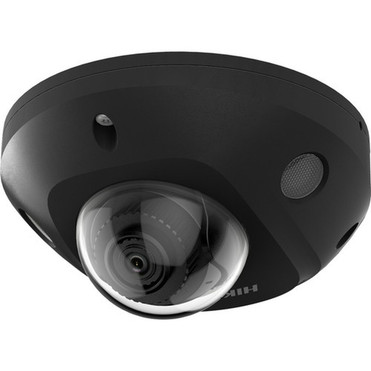

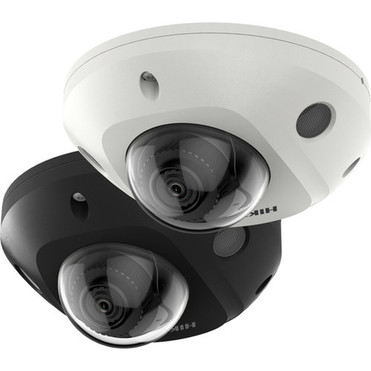

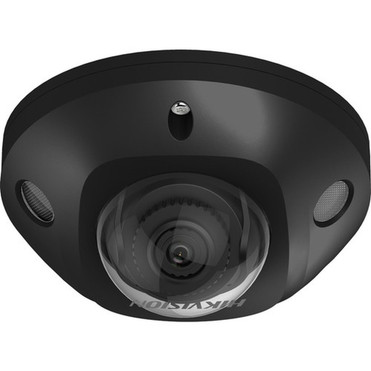

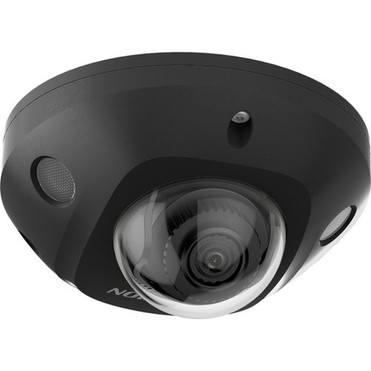

Product Name: 4 MP AcuSense Built-in Mic Fixed Mini Dome Network Camera
Product Type: Network Camera
Technical InformationHD Recording: Yes
Night Vision: Yes
Night Vision Distance: 98.43 ft (30 m)
Night Vision Type: Infrared
Display & GraphicsImage Sensor Type: CMOS
Color Supported: Color
Field of View: horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°
Effective Camera Resolution: 4 Megapixel
VideoVideo Formats:
- H.265+
- H.265
- H.264+
- H.264
- MJPEG
Maximum Video Resolution: 2688 x 1520
Maximum Frame Rate: 30 fps
LensLens Type: Fixed
Maximum Focal Length: 2.8 mm
Lens Included: Yes
Lens Mount Type: M12-mount
Maximum Aperture: f/1.6
ExposureShortest Shutter Speed: 1/100000 Second
Longest Shutter Speed: 1/30 Second
Network & CommunicationConnectivity Technology: Wired
Remote Management: Yes
StorageStorage Type: Memory Card
Interfaces/PortsNetwork (RJ-45): Yes
Physical CharacteristicsMount Type:
- Corner Mount
- Pendant Mount
- Pole Mount
- Junction Box Mount
- Wall Mount
Form Factor: Mini Dome
Durability:
- Water Resistant
- Dust Resistant
- Vandal Resistant
Diameter: 4.33" (110 mm)
Weight (Approximate): 380 g
Environmental ConditionsMinimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 140°F (60°C)
Operating Humidity: 95%
MiscellaneousFeatures:
- Built-in Microphone
- Audio Compression
- Password Protection
- HTTPS Encryption
- Day/Night
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- 3D Digital Noise Reduction
- Wide Dynamic Range
- Motion Detection
- Tampering Alarm
- Cross Line Detection
- Face Detection
- White Balance
- Privacy Masking
- SD Card Local Storage
Impact Protection Rating:
Ingress Protection Rating: IP67
[/custom-specifications]
