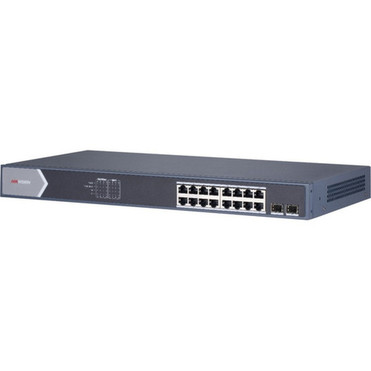

Hikvision Smart Managed 16-Port Gigabit PoE Switch - 16 Ports - Manageable - Gigabit Ethernet - 1000Base-T, 1000Base-X - 2 Layer - - 2 (DS-3E1518P-EI)

Marketing Information: Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.

• Visualized Topology Management
• Network Health Monitor
• Real-Time Alarm Push
• Video Control and Preview

• 16 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
• IEEE 802.3at/af standard for PoE ports.
• Network topology management, alarm push, network health monitor.
• 6 KV surge protection for PoE ports.
• AF/AT camera can reach up to 300 m in extend mode.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.

Total Number of Network Ports: 16

Network (RJ-45): Yes

Modular: Yes

Port/Expansion Slot Details: 16 x Gigabit Ethernet PoE,2 x Gigabit Ethernet Expansion Slot

Media Type Supported: Optical Fiber,Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Technology: 1000Base-T,1000Base-X

Total Number of Expansion Slots: 2

Expansion Slot Type: SFP (mini-GBIC)

Number of SFP Slots: 2

Layer Supported: 2

Networking Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3at,IEEE 802.3af

Manageable: Yes

PoE (RJ-45) Port: Yes

PoE Budget: 225 W

Power Source: Power Supply

Power Consumption: 250 W

Height: 8.69" (220.80 mm)

Depth: 1.73" (44 mm)

Length: 17.32" (440 mm)

Weight (Approximate): 6.03 lb (2735 g)

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
