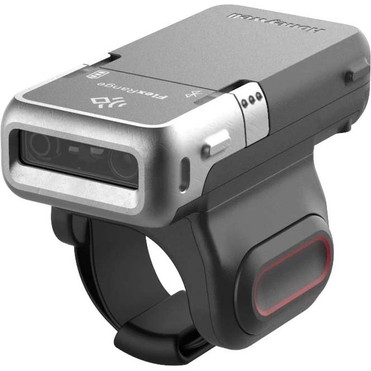

Honeywell 8675i Rugged Compact Wearable Scanner - Wireless Connectivity - 85" (2159 mm) Scan Distance - 1D, 2D - Laser - Imager - - - (8675I400FR-2-N)

• Laser scan engine guarantees rapid error free data entry
• With Bluetooth technology, you can scan barcodes and then transmit data from the base

Marketing Information: The Honeywell 8675i provides wearable scanning productivity in a compact, ergonomic, and rugged form factor.

The 8675i offers always-at-hand wearable scanning to improve workflow productivity.

Premium scanning performance ensures quick work of even damaged or low quality barcodes. FlexRange™ technology provides expanded FlexRange™ scan distance, enabling improved efficiency in workflows that could previously only be solved with bulkier, heavier handheld devices. Smooth, fast reading from near to far ensures that the full range (100% UPC from near contact to 5'/1.5m, 100 mil Code 39 to 33'/10m) has fast, intuitive scanning response. A standardrange only option offers lower acquisition cost for arms-length workflows.

In all aspects of design, the 8675i has been optimized for ergonomics. Height off of the finger has been minimized to prevent interference in the work environment. All user-contact surfaces have been tailored for comfort, easy adjustment, and simple use. The triggered ring is simple to swap from right to left hand configuration, and the finger strap buckle is both easy to operate and low-profile to prevent interference between fingers. The 8680i can be converted from ring to glove instantly and with no tools; the strap glove is simple, minimal, and easily adjustable to cover the range of users. Made of non-absorbent materials, 8675i wearable accessories are simple to clean with approved disinfectant agents.

The 8675i has been designed to satisfy the needs of demanding workflows. It is multi-shift ready, with an easy-to-replace battery to keep the scanner up and running that also enables the battery to be simply replaced as it ages through normal use, extending the service life of the 8675i. User-facing LEDs communicate Bluetooth connection, battery state of charge and even when battery health requires a replacement.


Connectivity Technology: Wireless
Scanning Capability:
• 1D
• 2D

Light Source: Laser
Image Sensor Type: Imager
Scan Pattern: Omni-directional
Scanner Range: FlexRange
Scanning Distance: 85" (2159 mm)
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Drop Specification:
• 1.8m Mil-Std-810; 50x1.5m (5') drop to concrete across operating temperatures
• Tumble: 2,000 1/2 m (1.6 ft) tumbles per IEC 60068-2-32 specification

Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 10 mil (0.25 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Bluetooth: Yes
Battery Capacity: 570 mAh
Maximum Battery Recharge Time: 3.50 Hour
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Wearable
Rugged: Yes
Height: 0.60" (15.20 mm)
Width: 1.19" (30.30 mm)
Length: 2.57" (65.20 mm)
Weight (Approximate): 66 g
Package Contents:
• 8675i Rugged Compact Wearable Scanner
• Triggered Ring with Battery

Ingress Protection (IP) Rating: IP65
Application/Usage: Warehouse
Environmentally Friendly: Yes
Limited Warranty: 2 Year
Additional Warranty Information:

Battery warranty is one year

• 1D
• 2D

• 1.8m Mil-Std-810; 50x1.5m (5') drop to concrete across operating temperatures
• Tumble: 2,000 1/2 m (1.6 ft) tumbles per IEC 60068-2-32 specification

• 8675i Rugged Compact Wearable Scanner
• Triggered Ring with Battery

Battery warranty is one year
