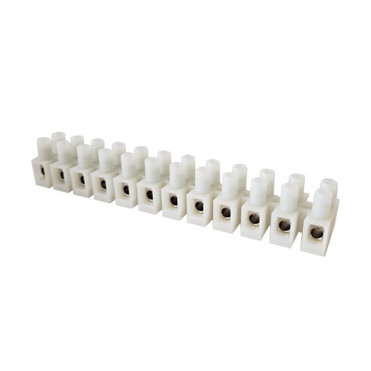

Insulated Terminal Block, 12 circuit, 22-10AWG, 30A (FN-CN-TB12-30A)
Have questions?
Proud Canadian team since 2007
Consulting & Technicians services
From VoiP phone to Cluster servers
Shipped Trough UPS & Purolator
This insulated terminal block has 12 terminals that can house a variety of wire gauges. It is used to join two 20AWG to 8AWG solid or stranded copper wires together. The modular design allows for the block to be cut into smaller sections or stacked end-to-end.
Physical Characteristics | |
---|---|
Color | White |
Material | Nylon 66 |
Insulated | Yes |
Number of Terminals | 12 |
Wire Size | 20-8 AWG, Solid/Stranded (50 Amp) |
Voltage Rating | 300 V |
Dimensions | 6.3 L, 1.0 W, 1.0 H inches [16.0 L, 2.5 W, 2.5cm] |
Terminal Hole Size | 0.14 inches [0.4 cm] |
Approvals | |
CSA | Yes |
c(UL)us | Yes |
Packaging Information | |
Package Quantity | 1 |
Product Weight | 0.08 lbs [0.04 kg] |
