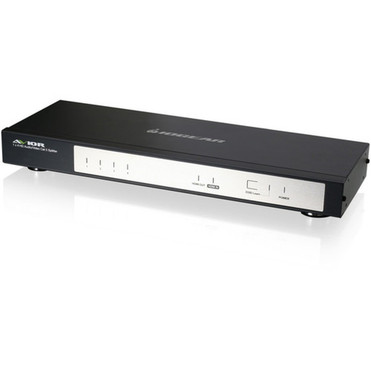

IOGEAR 4/8-Port HD Audio/Video Cat 5e/6 Splitter - 1080i1 x 4 - DVR, Set-top Box, Computer - 1 x HDMI Out (GHSP8214E)
Connectivity Technology: Cable
Number of Input Devices Supported: 1
Device Supported: DVR,Set-top Box,Computer
Number of Displays Supported: 4
Scan Format: 1080i
HDMI In: Yes
HDMI Out: Yes
Connectivity (RJ-45): Yes
Number of Connectivity (RJ-45) Ports: 8
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Maximum Operating Distance: 200 ft (60960 mm)
Form Factor: Rack-mountable
Height: 1.73" (43.94 mm)
Width: 17" (431.80 mm)
Depth: 6.06" (153.92 mm)
Weight (Approximate): 1.79 kg
Country of Origin: Taiwan
- Distribute a single HDMI media source up to 4 HDMI displays over Cat 5e/6 cables up to 196 feet
- Connect with HDMI Cat 5e/6 Audio/Video Receiver (Part No: GH8201ER)
- Works with DVR / Set-top boxes, Blu-ray / DVD players, media servers, computers, and many more
- A local HDMI Out Port allows flexibility for cascading and one additional local viewing monitor connection
- High resolution support:1080p up to 130ft,1080i up to 196ft
- Full 3D Support
- Auto-detects the highest common resolution of connected displays
- Supports 12-bit Deep Color
- Cascadable
- LED indication of displays
[custom-specifications]
| Specifications | |
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GHSP8214E |
| Manufacturer Website Address | http://www.iogear.com |
| Brand Name | IOGEAR |
| Product Line | AVIOR |
| Product Model | GHSP8214E |
| Product Name | 4/8-Port HD Audio/Video Cat 5e/6 Splitter |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 1 |
| Device Supported | DVR,Set-top Box,Computer |
| Number of Displays Supported | 4 |
| Video | |
| Scan Format | 1080i |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 8 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Maximum Operating Distance | 200 ft (60960 mm) |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17" (431.80 mm) |
| Depth | 6.06" (153.92 mm) |
| Weight (Approximate) | 1.79 kg |
| Miscellaneous | |
| Country of Origin | Taiwan |
[/custom-specifications]
[custom-options]
| Product | IOGEAR HD A/V Cat 5e/6 Receiver - 200 ft (60960 mm) Range - Full HD - 1920 x 1080 - Category 6 - Wall Mountable |
| SKU | GH8201ER |
| Sale Price | $76.27 |
[/custom-options]
