- This Audio/Video Distribution Amplifier accepts audio and video signals from a single source and distributes it to multiple systems
- Up to 4096 x 2160 video resolution.
- Features HDMI input to get connected with the top of the line HDMI supported devices

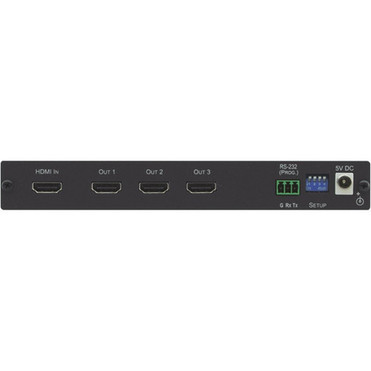

Marketing Information: The VM-3H2 is a 1:3 distribution amplifier for up to 4K@60Hz (4:4:4) HDMI 2.0 signals, complying with HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal and distributes it to three identical outputs.
- Max. Data Rate - 17.82Gbps (5.94Gbps per graphic channel).
- Max. Resolution - 4K@60Hz (4:4:4).
- HDMI Signal Transmission - HDMI 2.0 and HDCP 2.2 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, CEC (OUT 1 only), 2K, 4K, and 3D.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, locking, processing and pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
- Force RGB - When the display lacks YCbCr capabilities, the user can force native delivery of the RGB color format in HDMI content to improve picture quality.
- Selectable HDCP Authorization - Allows the user to control the appearance of an HDCP or non-HDCP input to the source to permit delivery of protection-free content, such as personal clips and charts, without HDCP encryption. HDCP protected content is not passed in non-HDCP mode.
- Field Maintenance - RS-232 connection for simple field firmware upgrade with Kramer K-Upload tool, easy EDID handling with Kramer EDID-Designer tool, status indicators for HDMI input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.

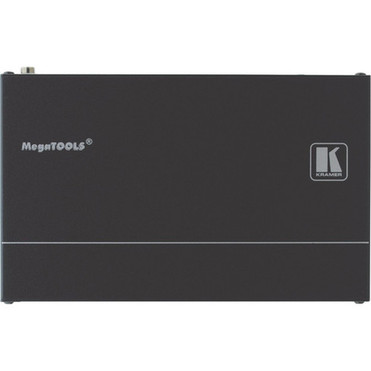

- Easy Installation - Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting.
Maximum Video Resolution: 4096 x 2160HDMI In: YesHDMI Out: YesSerial Port: YesNumber of HDMI Inputs: 1Number of HDMI Outputs: 3Input Voltage: 5 V DCHeight: 1" (25.40 mm)Width: 7.38" (187.45 mm)Depth: 4.53" (115.06 mm)Weight (Approximate): 400 gPackage Contents: - 1:3 4K60 4:4:4 HDCP 2.2 HDMI 2.0 DA
- Power Supply
Limited Warranty: 7 Year
[custom-specifications]
SpecificationsManufacturer: Kramer Electronics LTD
Manufacturer Part Number: VM-3H2
Manufacturer Website Address: http://www.kramerelectronics.com
Brand Name: Kramer
Product Line: MegaTOOLS
Product Model: VM-3H2
Product Name: 1:3 4K60 4:4:4 HDCP 2.2 HDMI 2.0 DA
Product Type: Audio/Video Distribution Amplifier
VideoMaximum Video Resolution: 4096 x 2160
Interfaces/PortsHDMI In: Yes
HDMI Out: Yes
Serial Port: Yes
Number of HDMI Inputs: 1
Number of HDMI Outputs: 3
Power DescriptionInput Voltage: 5 V DC
Physical CharacteristicsHeight: 1" (25.40 mm)
Width: 7.38" (187.45 mm)
Depth: 4.53" (115.06 mm)
Weight (Approximate): 400 g
MiscellaneousPackage Contents:
- 1:3 4K60 4:4:4 HDCP 2.2 HDMI 2.0 DA
- Power Supply
WarrantyLimited Warranty: 7 Year
[/custom-specifications]
