- HDBaseT 1.0 transmitter
- Powered by PoE (Power over Ethernet/HDBaseT)
- Up to 70m (230ft) at 1080p
- Up to 40m (130ft) at 4K@60 (4:2:0)
- Control extension

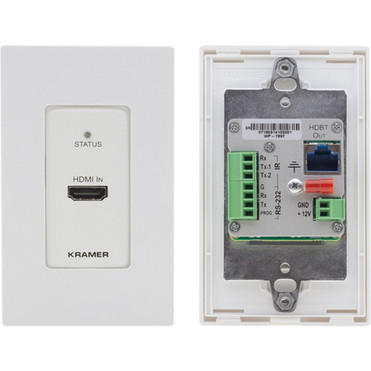

Marketing Information: WP-789T is a high-performance, long-reach HDBaseT wall-plate transmitter for 4K@60Hz (4:2:0) HDMI 2.0 and HDCP 2.2 signals over twisted pair. It converts the HDMI input signal into an HDBaseT signal and transmits it to a compatible receiver. It extends video signals to up to 40m (130ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This wall-plate is powered through PoE (Power over Ethernet) over the twisted pair cable.* DECORA® is a registered trademark of Leviton Manufacturing Co., Inc
- High Performance Transmitter - Professional HDBaseT transmitter for providing long-reach signals over twisted pair copper infrastructures. WP-789T transmitter employs high-level video compression technology that delivers visually lossless performance for 4K@60Hz (4:2:0) signals with near-zero latency. It converts the HDMI input signal into an HDBaseT signal and transmits it to a compatible receiver.
- HDMI Signal Extension - HDMI 2.0 HDCP 1.4 and 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D.
- EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
- Cost-Effective Maintenance - Power and connectivity status LED indicator facilitates easy local maintenance and troubleshooting.
- Easy Installation - Compactly fits into standard US, EU and UK 1-gang in-wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall-plate installation is fast and cost-effective via a single twisted pair cable, providing both video signal and power (PoE) connections.
APPLICATIONS
- Wall or podium-mounted, long-distance AV and control signal extension for classrooms
- Table-mounted, long-distance AV and control signal extension for large room connectivity
- Wall-plate AV and control extension in meeting rooms, boardrooms, hotels and corporate facilities
Connectivity Technology: WiredNumber of Input Devices Supported: 1Maximum Operating Distance: 229.66 ft (70000 mm)Graphics Modes: 4KNetwork (RJ-45): YesHDMI In: YesNumber of Network (RJ-45) Ports: 1Number of HDMI Inputs: 1Media Type Supported: Twisted PairProduct Color: White/BlackTransmitter Height: 4.50" (114.30 mm)Transmitter Width: 2.75" (69.85 mm)Transmitter Depth: 1.22" (30.99 mm)Form Factor: Wall PlateTransmitter Weight (Approximate): 100 gPackage Contents: - US-D-size Wall-Plate Transmitter with White & Black Decora Design Frame Sets
- 1 x Power Adapter
- 1 x Power Cord
- Installation Accessories
Environmentally Friendly: Yes
[custom-specifications]
SpecificationsManufacturer: Kramer Electronics LTD
Manufacturer Part Number: WP-789T/US-D(W/B)
Manufacturer Website Address: http://www.kramerelectronics.com
Brand Name: Kramer
Product Model: WP-789T/US-D(W/B)
Product Name: US-D-size Wall-Plate Transmitter with White & Black Decora Design Frame Sets
Product Type: Video Extender Transmitter
Technical InformationConnectivity Technology: Wired
Number of Input Devices Supported: 1
Maximum Operating Distance: 229.66 ft (70000 mm)
VideoGraphics Modes: 4K
Interfaces/PortsNetwork (RJ-45): Yes
HDMI In: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Inputs: 1
Media & PerformanceMedia Type Supported: Twisted Pair
Physical CharacteristicsProduct Color: White/Black
Transmitter Height: 4.50" (114.30 mm)
Transmitter Width: 2.75" (69.85 mm)
Transmitter Depth: 1.22" (30.99 mm)
Form Factor: Wall Plate
Transmitter Weight (Approximate): 100 g
MiscellaneousPackage Contents:
- US-D-size Wall-Plate Transmitter with White & Black Decora Design Frame Sets
- 1 x Power Adapter
- 1 x Power Cord
- Installation Accessories
Environmentally Friendly: Yes
