This KVM extender over Cat5e extends a VGA monitor, PS/2 keyboard & PS/2 mouse up to 150m away from your source device using a single Cat5e cable.
- Supports a VGA resolution up to 1280x1024
- VGA equalization is adjustable by hot key on remote side
- Extra console port (HD-15 Monitor, PS/2 Keyboard & Mouse) is available on local side
- Auto selection one console of local or remote side
Physical Characteristics |
---|
Color | Silver |
Housing | Aluminum |
Connector(s) |
---|

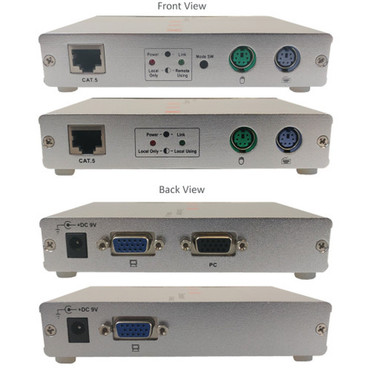

Local | 1 - PC HD15 VGA Female 1 - Console HD15 VGA Female 1 - 6 pin mini-DIN Female (PS/2) 1 - 6 pin mini-DIN Female (PS/2) 1 - RJ-45 |
Remote | 1 - HD15 VGA Female 1 - 6 pin mini-DIN Female (PS/2) 1 - 6 pin mini-DIN Female (PS/2) 1 - RJ-45 |
Performance |
---|
VGA Resolution | 1280 x 1024 Max @ 60HZ |
Cable Distance | 150m Max |
Environmental |
---|
RoHS | Yes |
Packaging Information |
---|
Package Quantity | 1 |
Product Weight | 1.0 lbs [0.5kg] |
Package Weight | 2.5 lbs [1.1kg] |
Contents |
---|

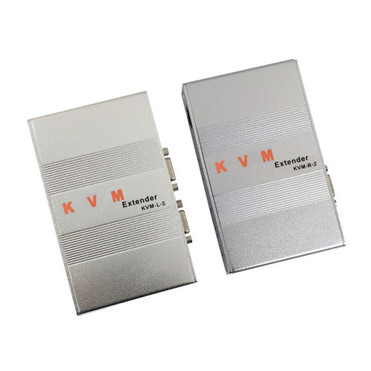

Included in Package | 1 - KVM Extender Local Unit |
| 1 - KVM Extender Remote Unit |
| 2 - DC 9V Power Adapters |
| 1 - Custom KVM Cable |
| 1 - User Manual |
