- PDU is reliable for power protection and management solutions
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
Marketing Information: The all new Vertiv™ Liebert® Rack PDU and Rack PDU Extenders are specifically designed for integration between the GXT5 Lithium-Ion UPS and power distribution in the rack or to adjacent racks.
PDU Type: BasicReceptacle Type: Receptacle Detail: - 4 x NEMA L14-30R
- 2 x NEMA L6-30R
Protection Type: Overcurrent ProtectionInput Voltage: Input Voltage Range: - 100 V AC - 120 V AC
- 200 V AC - 240 V AC
Power Rating (VA): 208 VAPower Rating (Watt): 11.50 kWInput Current: 60 AProduct Color: Black Powder CoatMounting Orientation: HorizontalMount Type: Rack-mountableRack Height: 2UWidth: 17" (431.80 mm)Depth: 8" (203.20 mm)Length: 3.39" (86.11 mm)Environmentally Friendly: YesCountry of Origin: United StatesTAA Compliant: YesLimited Warranty: 5 YearAdditional Warranty Information: 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
[custom-specifications]
SpecificationsManufacturer: Vertiv
Manufacturer Part Number: VP0N6202
Manufacturer Website Address: http://www.vertiv.com/
Brand Name: Liebert
Product Model: VP0N6202

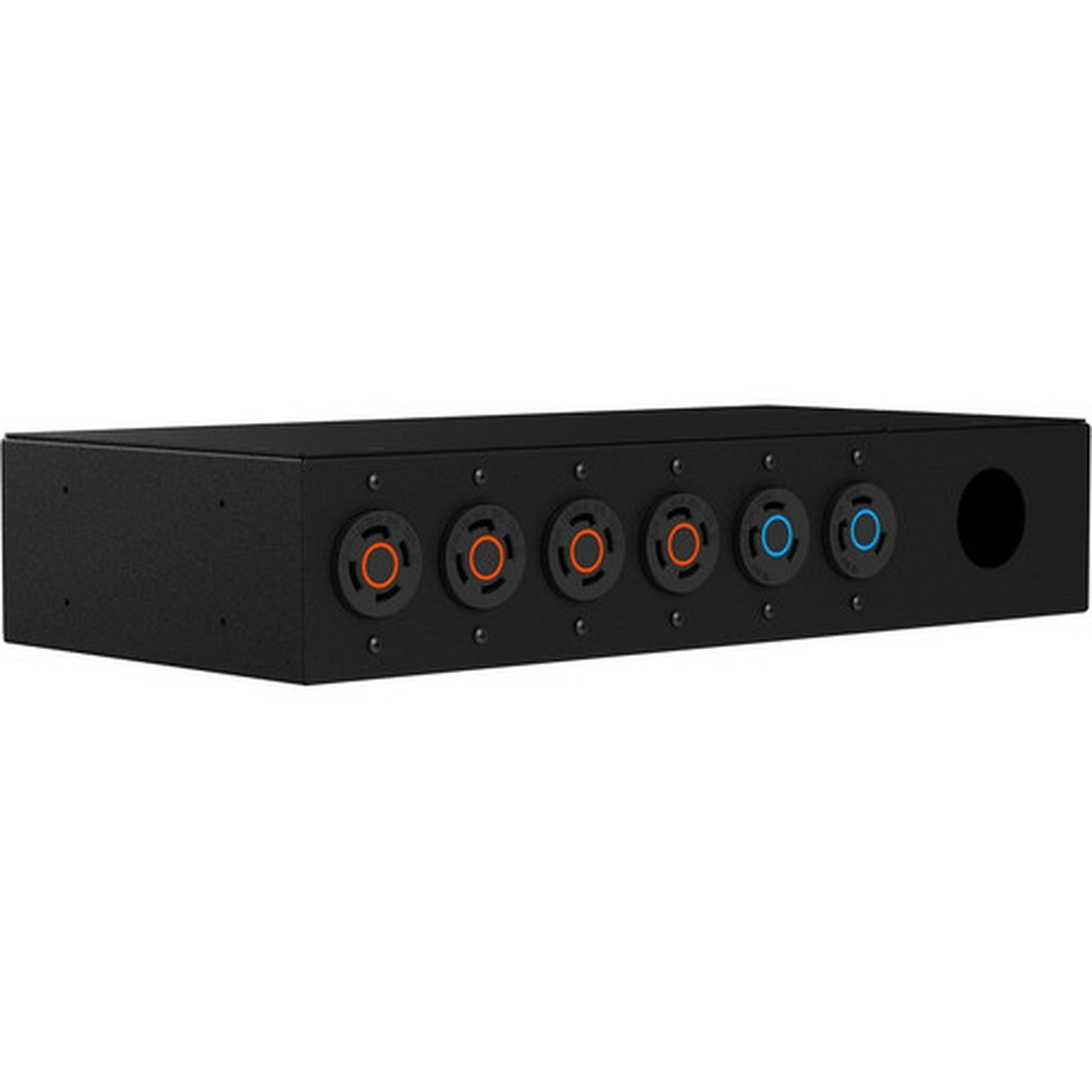

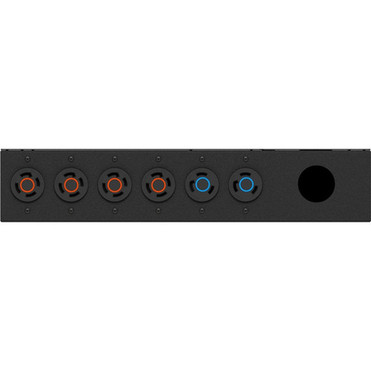

Product Name: Basic PDU - Horizontal, 120/208V, (4) NEMA L14-30R, (2) L6-30R
Packaged Quantity: 1 / Box
Product Type: PDU
Technical InformationPDU Type: Basic
Receptacle Type:
Receptacle Detail:
- 4 x NEMA L14-30R
- 2 x NEMA L6-30R
Protection Type: Overcurrent Protection
Power DescriptionInput Voltage:
Input Voltage Range:
- 100 V AC - 120 V AC
- 200 V AC - 240 V AC
Power Rating (VA): 208 VA
Power Rating (Watt): 11.50 kW
Input Current: 60 A
Physical CharacteristicsProduct Color: Black Powder Coat
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Rack Height: 2U
Width: 17" (431.80 mm)
Depth: 8" (203.20 mm)
Length: 3.39" (86.11 mm)
MiscellaneousEnvironmentally Friendly: Yes
Country of Origin: United States
TAA Compliant: Yes
WarrantyLimited Warranty: 5 Year
Additional Warranty Information: 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
