LifeSafety Power FlexPower FPO75-C4E1 75W Power Supply - Enclosure - 120 V AC, 230 V AC Input - 12 V DC, 24 V DC Output - 75 W - 83% (FPO75-C4E1)

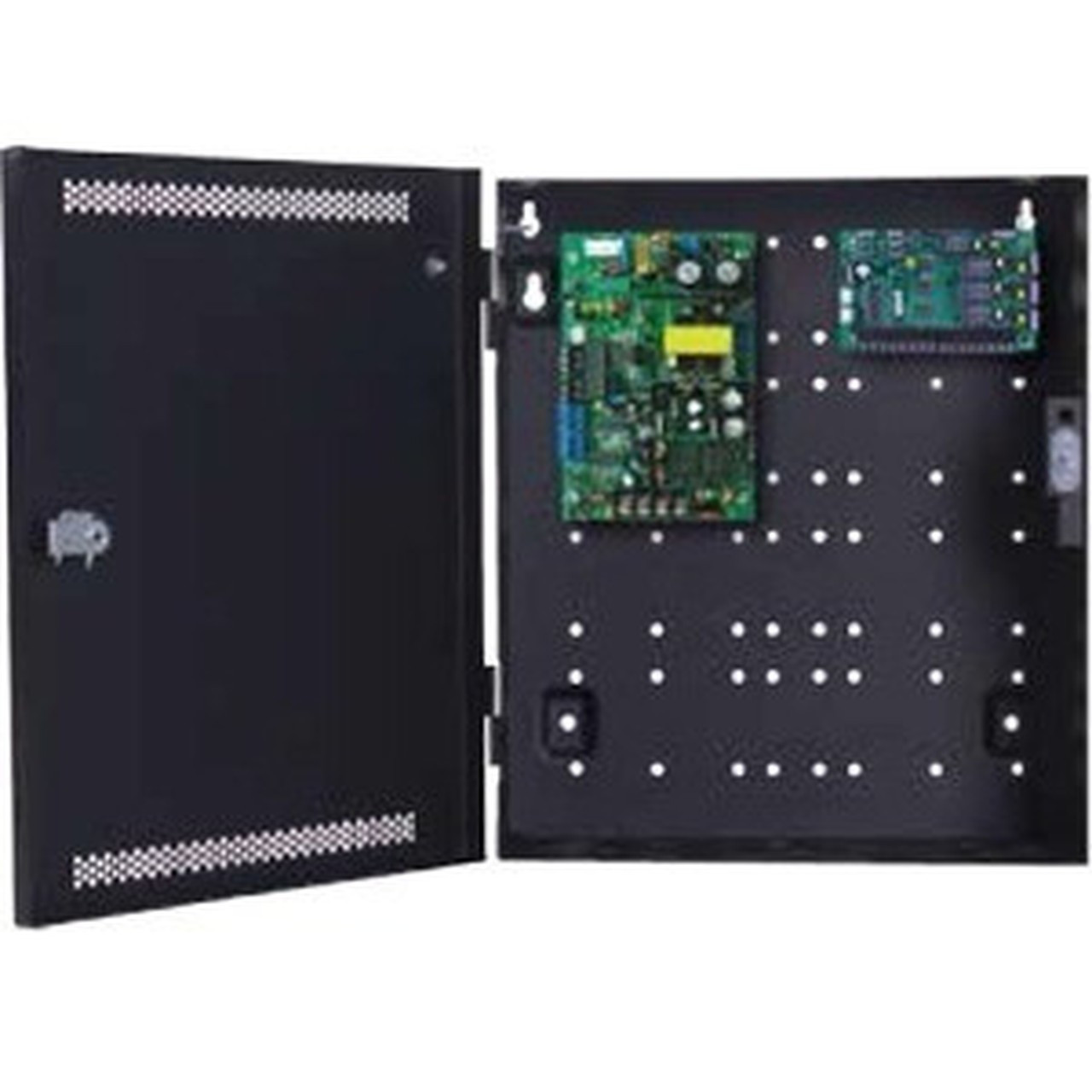

Marketing Information: The FLEXPOWER FPO75-C4E1 is a single voltage, offline switchmode power supply-battery charger system specifically designed for the access control segment of the lifesafety industry. The unit is configured in a painted, steel, locking enclosure with tamper switch and integral battery space, and provides one power supply which can be set to 12 or 24V.

Four access controlled trigger inputs control four relay based lock outputs, with each output programmable for fire alarm disconnect, failsafe, failsecure, or dry contact operation.

Complete fault detection and reporting, with programmable fault delays, is provided along with datalogging capability of fault occurrence, battery usage time and power supply status.

Efficiency: 83%

Modular: Yes

Input Voltage: 120 V AC,230 V AC

Output Voltage: 12 V DC,24 V DC

Output Voltage Detail: 12 V DC @ 6 A,24 V DC @ 3 A

Output Current: 6 A,3 A

Output Power: 75 W

Form Factor: Enclosure

Height: 14" (355.60 mm)

Width: 12" (304.80 mm)

Depth: 4.50" (114.30 mm)

Weight (Approximate): 4.08 kg

Compatibility:

• Fire Alarm
• Intrusion
• Access Control
• CCTV
• Mass Notification

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: Lifetime
