Overview

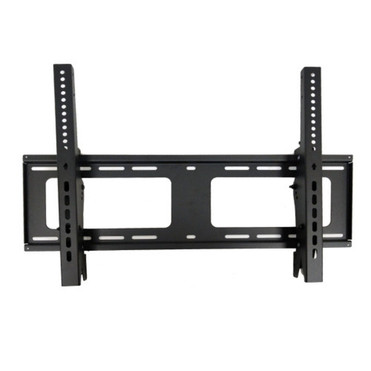

This menu wall TV mounting bracket is designed to hold most 45 inch to 55 inch flat screen displays with a maximum VESA hole pattern of 600x400. It is used to mount a single TV but its modular design allows you to add-on as many TVs as required. Quick and easy installation and designed for use in commercial environments.
|
Easy Assembly

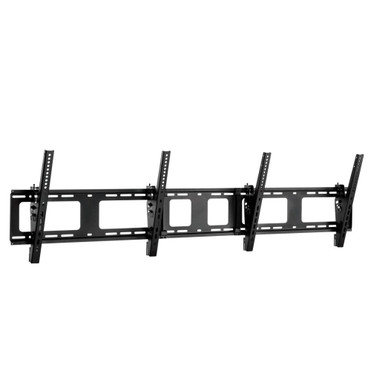

This menu wall mount is expandable to as many TVs as required, one mount simply attaches to the next. No pre-assembly required, the mounts can be joined one at a time directly to the wall.
Effortless Positioning

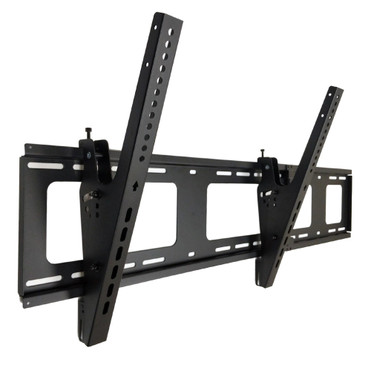

This menu wall mount has five fixed tilt settings which allows all displays to be tilted at the same angle with ease.

|
Specifications
Physical Characteristics |
|---|
| Mounting Style |
Tilting Wall Mount |
| Color |
Powder Coated Black |
| Material |
Steel |
| Mounting Pattern |
VESA 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400 |
| Screen Size |
45 - 55 inches [114 - 178cm] |
| Screen Capacity |
1 TV (expandable) |
| Weight Capacity |
110lbs [50kg] |
| Profile |
76mm (3")
|
Fine Adjustment(Depth/Height)
|
10mm (0.39") |
| Product Size |
1800x480x76mm (70.9"x18.9"x3")
|
| Installation |
Solid Wall or Double Stud
|
| Tilt Range |
0°/-5°/-10°/-15°/-20°
|
Screen Level
|
+3°~-3°
|
| Cable Management |
No |
Direction Indicator
|
Yes |
Approvals |
|---|
| RoHS |
Yes |
| Reach |
Yes |
Packaging Information |
|---|
| Package Quantity |
1 - TV Mount
1 - Joint Bracket
2 - Clamps
2 - Safety Pin
4 - M4x6 Screws
4 - M5x14 Screws
4 - M6x30 Screws
4 - M8x30 Screws
4 - M8x50 Screws
4 - Rectangular Washers
8 - Small Spacer
8 - Big Spacer
6 - ST6.3x55 Screws
6 - Concrete Anchors
6 - D6 Washers |
| Product Weight |
13.8 lbs [6.3 kg] |
Spec Sheets
Download spec sheet
