MSI PRO Z790-S WIFI Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX - Pentium Gold, Celeron Processor Supported - 192 (PROZ790SWIFI)

Marketing Information:

PRO Z790-S WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.

COOLING OVERVIEW | Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED, HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Chipset Manufacturer: Intel

Chipset Model: Z790

Total Processor Supported: 1

Processor Socket: Socket LGA-1700

Processor Generation Supported: 14th Gen,13th Gen,12th Gen

Processor Supported: Pentium Gold,Celeron

Number of Memory Slots: 4

Memory Form Factor: DIMM,UDIMM

Maximum Memory Supported: 192 GB

Memory Speed Supported: 6600 MHz,6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz

Memory Technology: DDR5 SDRAM

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0,1,5,10

Onboard Video: CPU Dependent Video

Audio Channels: 7.1

Bluetooth: Yes

Bluetooth Standard: Bluetooth 5.3

2.5Gigabit Ethernet: Yes

Wireless LAN: Yes

Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax

Total Number of PCI Express Slots: 5

Number of PCI Express x1 Slots: 3

Number of PCI Express x16 Slots: 2

PCI Express Standard: PCI Express 5.0,PCI Express 3.0

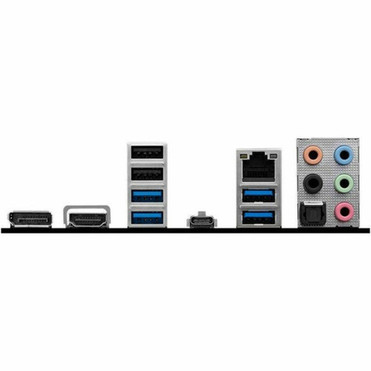

Total Number of USB Ports: 7

Number of USB 2.0 Ports: 2

Number of USB 3.2 Gen 1 Type-A Ports: 4

S/PDIF: Yes

HDMI: Yes

HDMI Version: 1.4

DisplayPort: Yes

Number of Network (RJ-45) Ports: 1

Number of SATA Interfaces: 4

Number of M.2 Interfaces: 2

Total Number of Onboard USB Ports: 8

Number of Onboard USB 2.0 Ports: 4

Form Factor: ATX

Width: 12" (304.80 mm)

Depth: 9.60" (243.84 mm)
