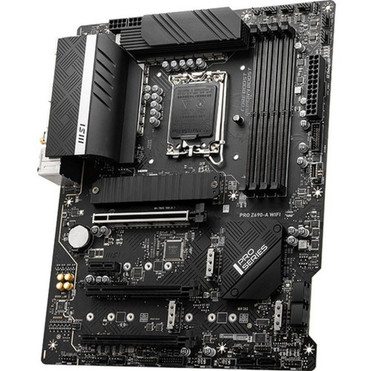

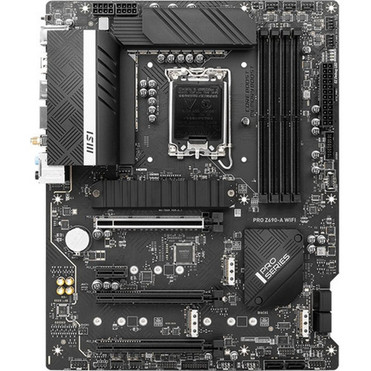

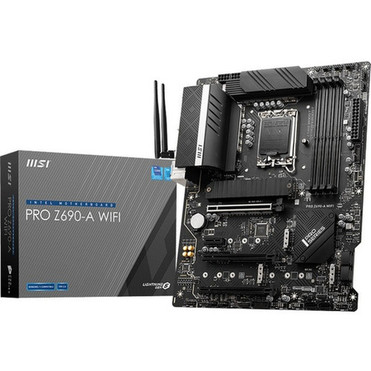

MSI Z690-A WIFI DDR4 Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Pentium Gold, Core (Z690AWID4)

(No reviews) Write a Review
$338.69
$339.20
$327.06
(You save $11.63 )
SKU: Z690AWID4
UPC: 824142270394
Weight: 2.40 LBS
Adding to cart… The item has been added
  • Compatible Pentium Gold processor lets you perform all your computational tasks at a swift pace
  • DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
  • Supported 0 RAID levels provide data reliability and fault tolerance
  • HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
  • DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
  • Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
  • With 4 USB 2.0 ports, connect devices for a quick data movement
    Marketing Information: Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds. Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire
    Chipset Manufacturer: Intel
    Chipset Model: Z690
    Total Processor Supported: 1
    Processor Socket: Socket LGA-1700
    Processor Generation Supported: 12th Gen
    Processor Supported:
    • Pentium Gold
    • Celeron
    • Core i5
    • Core i7
    • Core i9

    Multi GPU Supported: CrossFire
    Number of Memory Slots: 4
    Memory Form Factor:
    • DIMM
    • UDIMM

    Maximum Memory Supported: 128 GB
    Memory Speed Supported:
    • 2133 MHz
    • 2666 MHz
    • 2933 MHz
    • 3200 MHz
    • 5200 MHz
    • 4800 MHz
    • 4400 MHz
    • 4000 MHz

    Memory Technology: DDR4 SDRAM
    Intel Optane Memory Ready: Yes
    Controller Type: Serial ATA/600
    RAID Supported: Yes
    RAID Levels:
    • 0
    • 1
    • 5
    • 10

    Onboard Video: CPU Dependent Video
    Audio Channels: 7.1
    Bluetooth: Yes
    2.5Gigabit Ethernet: Yes
    Wireless LAN: Yes
    Wireless LAN Standard: IEEE 802.11 a/b/g/n/ax
    Number of Total Expansion Slots: 4
    Total Number of PCI Express Slots: 4
    Number of PCI Express x4 Slots: 1
    Number of PCI Express x16 Slots: 3
    Total Number of USB Ports: 8
    Number of USB 2.0 Ports: 4
    Number of USB 3.2 Ports: 1
    Number of USB 3.2 Gen 1 Ports: 2
    Number of USB 3.2 Gen 2 Type-A Ports: 1
    S/PDIF: Yes
    HDMI: Yes
    DisplayPort: Yes
    Number of Network (RJ-45) Ports: 1
    Number of SATA Interfaces: 6
    Number of M.2 Interfaces: 4
    Total Number of Onboard USB Ports: 9
    Number of Onboard USB 2.0 Ports: 4
    Number of Onboard USB 3.2 Ports: 5
    Form Factor: ATX
    Width: 12" (304.80 mm)
    Depth: 9.60" (243.84 mm)
    Package Contents:
    • PRO Z690-A WIFI DDR4 Desktop Motherboard
    • Quick Installation Guide
    • M.2 Screw / Standoff Sets
    • 2 x M.2 Clips
    • 2 x SATA Cables
    • Product Registration Card
    • I/O Shield
    • Wi-Fi Antenna
    • Driver DVD

    Limited Warranty: 3 Year

[custom-specifications]

Specifications
Manufacturer: MSI
Manufacturer Part Number: Z690AWID4
Manufacturer Website Address: http://www.msi.com
Brand Name: MSI
Product Series: PRO
Product Model: Z690-A WIFI DDR4
Product Name: PRO Z690-A WIFI DDR4 Desktop Motherboard
Product Type: Desktop Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: Z690
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Supported:
  • Pentium Gold
  • Celeron
  • Core i5
  • Core i7
  • Core i9

Multi GPU Supported: CrossFire
Memory
Number of Memory Slots: 4
Memory Form Factor:
  • DIMM
  • UDIMM

Maximum Memory Supported: 128 GB
Memory Speed Supported:
  • 2133 MHz
  • 2666 MHz
  • 2933 MHz
  • 3200 MHz
  • 5200 MHz
  • 4800 MHz
  • 4400 MHz
  • 4000 MHz

Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:
  • 0
  • 1
  • 5
  • 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Bluetooth: Yes
2.5Gigabit Ethernet: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ax
I/O Expansions
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 3
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 4
Number of USB 3.2 Ports: 1
Number of USB 3.2 Gen 1 Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 1
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 5
Physical Characteristics
Form Factor: ATX
Width: 12" (304.80 mm)
Depth: 9.60" (243.84 mm)
Miscellaneous
Package Contents:
  • PRO Z690-A WIFI DDR4 Desktop Motherboard
  • Quick Installation Guide
  • M.2 Screw / Standoff Sets
  • 2 x M.2 Clips
  • 2 x SATA Cables
  • Product Registration Card
  • I/O Shield
  • Wi-Fi Antenna
  • Driver DVD

Warranty
Limited Warranty: 3 Year

[/custom-specifications]

3 Year
