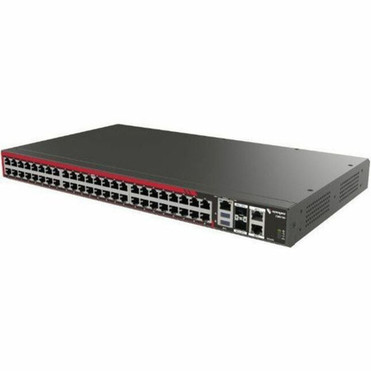

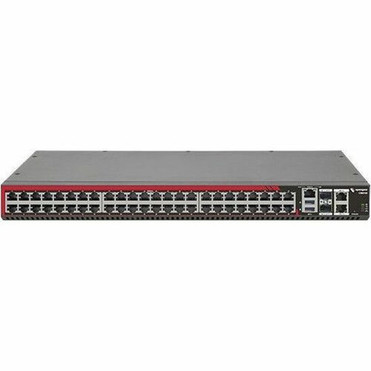

Opengear CM8148-10G Device Server - 1.95 GB - DDR4 SDRAM - Twisted Pair, Optical Fiber - 2 Total Expansion Slot(s) - 2 x Network - 2 x (CM8148-10G-US)
Write a Review
Opengear
Opengear CM8148-10G Device Server - 1.95 GB - DDR4 SDRAM - Twisted Pair, Optical Fiber - 2 Total Expansion Slot(s) - 2 x Network - 2 x (CM8148-10G-US)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- 16, 32, 48, and 96 port serial console server with Smart Out-of-Band™
- REST API support for automation tools, Docker, and Python scripting
- Hardware-based TPM 2.0 provides data encryption and secure boot
- Dual power supplies with independent monitoring
- 10Gb SFP+ uplinks connect directly to high-speed networks
- Port auto-discovery simplifies configuration of serial settings and port labels
- Eliminates the need for serial adapters with selectable software serial ports
Marketing Information:
CM8100 Console Server
The CM8100 is Opengear's newest console manager for data centers and enterprise networks, available in 1GbE and 10GbE models. The CM8100 Console Manager provides up to 96 serial ports, enterprise-grade security using TPM 2.0 module, and independent monitoring using dual power supplies.
Connect 16, 32, 48 or 96 serial console ports with simple straight-through cabling to Cisco®-style serial consoles reliably regardless of the state of your production network.
Host containerized applications to run across any platform or automation tools providing more agility and efficiency. Manage at scale through Opengear's Lighthouse Software.
Designed and purpose-built energy efficient without compromising performance, the CM8100 requires less power and cooling for a lower total cost of ownership and high reliability.
Device Type: Console Server
Processor Speed: 1.60 MHz
Standard Memory: 1.95 GB
Memory Technology: DDR4 SDRAM
Maximum Memory Supported: 32 GB
Media Type Supported: Twisted Pair,Optical Fiber
Total Number of Expansion Slots: 2
Ethernet Technology: 10 Gigabit Ethernet
Network Standard: 10GBase-X,1000Base-T
Network (RJ-45): Yes
USB: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 2
Number of Serial Ports: 48
Input Voltage: 120 V AC,230 V AC
Form Factor: Rack-mountable
Height: 1.75" (44.45 mm)
Width: 17.30" (439.42 mm)
Depth: 10.50" (266.70 mm)
Weight (Approximate): 8 lb (3628.74 g)
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 4 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Opengear |
| Manufacturer Part Number | CM814810GUS |
| Manufacturer Website Address | http://www.opengear.com |
| Brand Name | Opengear |
| Product Series | CM8100-10G |
| Product Model | CM8148-10G |
| Product Name | CM8148-10G Device Server |
| Product Type | Device Server |
| Technical Information | |
| Device Type | Console Server |
| Processor & Chipset | |
| Processor Speed | 1.60 MHz |
| Memory | |
| Standard Memory | 1.95 GB |
| Memory Technology | DDR4 SDRAM |
| Maximum Memory Supported | 32 GB |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Standard | 10GBase-X,1000Base-T |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 2 |
| Number of Serial Ports | 48 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 10.50" (266.70 mm) |
| Weight (Approximate) | 8 lb (3628.74 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 4 Year |
[/custom-specifications]
[custom-options]
| Product | Opengear DB9F to RJ45 Crossover Serial Adapter - 1 x 9-pin DB-9 Serial Female - 1 x RJ-45 Network Female |
| SKU | 319018 |
| Sale Price | $14.12 |
| Product | Opengear DB9M to RJ45 Straight Serial Adapter - 1 x 9-pin DB-9 Serial - 1 x RJ-45 Network Female |
| SKU | 319017 |
| Sale Price | $14.12 |
| Product | Opengear DB9F to RJ45 Straight Serial Adapter - 1 x 9-pin DB-9 Serial - 1 x RJ-45 Network Male |
| SKU | 319019 |
| Sale Price | $14.12 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
[/custom-user-manual]
Warranty Information
4 Year
